Specifications
screw air compressor China1.Durable Screw Air Compressor
2.ISO9001,CE Quality Certification
3.German Air End
High quality screw air compressor China oil free and super silent

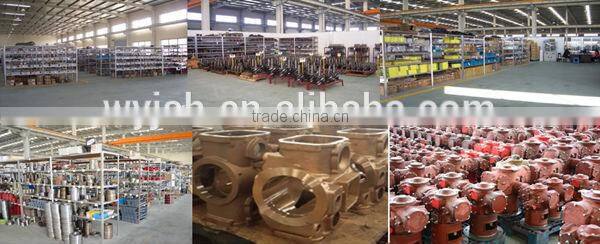

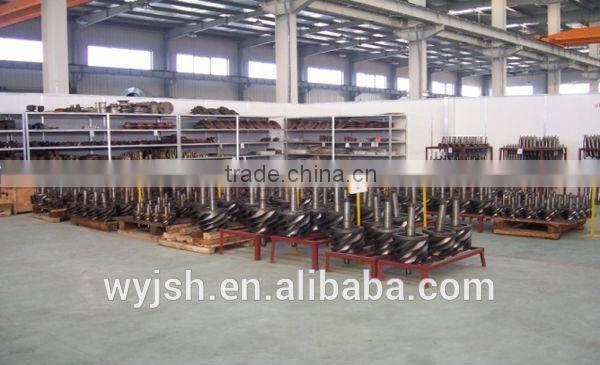

Introduction about the manufacturer of the screw air compressor China
Shanghai Towin Machinery Co. Ltd.-focusing on air compressor for 40 years, is national first successful enterprise in the development of the single screw air compressor ,supervised unit of single screw air compressor national industry standard and industry standard drafting unit (usually for the hydraulic single screw oil free compressor). Vice-council of China general machinery industry association-compressor branch , a member of the national compressor standardization technical committee.
About the advantages of the screw air compressor China

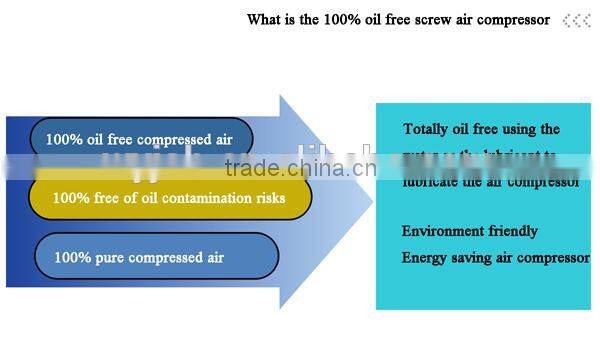

Oil free screw air compressor are widely used in industries that require high quality air sources such as: Pharmaceutical, food, electronics, chemical, packaging, etc. 100% pure compressed air is a necessary procedure to guarantee satisfactory crafts and product quality, which ensures the production of high-end products safely and risk-free.
The lubrication system of an oil free screw air compressor is an individual fuel recycling unit. The compression chamber and the bearings were separated by a set of sealed high-performance mechanical assembly. The lubricating oil can only flow in the enclosed area and is prevented to enter the compression chamber, which only contains 100% pure compressed oil-free air. The users could obtain 100% pure compressed air with some slight post-treatment of water and dust removal.
Technial parameter of the screw air compressor China
Technical detail of the oil free screw air compressor | |||||
Model |
TW15F/S |
||||

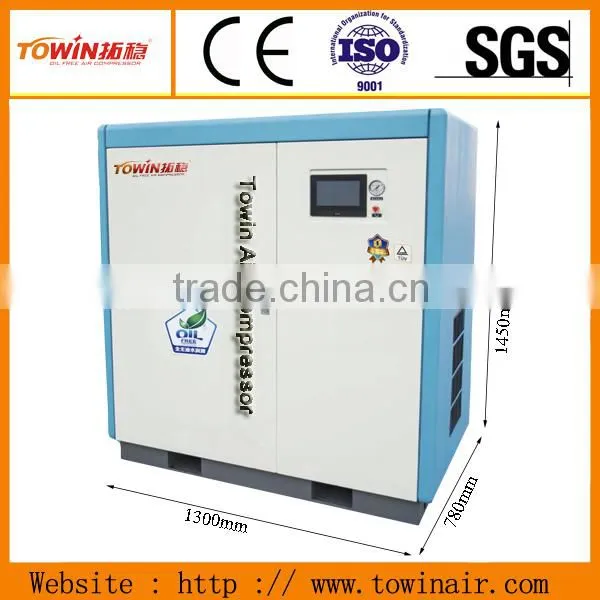

Dimensions (L*W*H ) mm |
Certitication |
||||
1300*780*1450 |
CE TUV ISO9001 |
||||
Pressure Mpa |
Air Flow L/min |
||||
0.7 |
2.5 |
||||
0.85 |
2.2 |
||||
1.0 |
2.0 |
||||
Noise level dB |
Weight kg |
||||
57 |
570 |
||||
Power kw |
Lubricating water volume L |
||||
15 |
25 |
||||
| |||||
Delievery details of the air compressor | |||||
Port |
Minimum Quantity |
Warranty |
|||
Shanghai |
1 sets |
2 years |
|||
Delievery days |
1-10 sets 10-30 working days 10-30 sets 30-60 working days |
||||
Machine package |
Wooden box package or as the customers requirements |
||||
Payment terms |
T/T , LC |
||||
| |||||
About our service | |||||
|
Our service to our customers |
1. Instant response to your inquiry within 12 working hours |
||||
|
2. Experience technicians response your technical concerns |
||||
|
3. Customized machine is avalible. OEM &ODM acceptable |
||||
|
4. Specific training for customer ‘s operating workers |
||||
3. Equipment data form / package / screw air compressor China
1. Equipment data form our company provide you certificate of approvl , purchased part certification / operating manual / secondary operating diagram and secondary wiring diagram
2. Package After the factory inspection department have the test run to check the quality, the product will covered with the water proof bag and packed in the wooden box .
3. Transportation Two weeks before the transportation we will tell the customer the weight size and estimated arriving time . By train by ship or by air
4. 30% payment in advance, 70% balance before shipment
5. Delievery : 20 working days after the advanced pavement
For other important information
1. As the inner air circuit is using the alloy cooper , so as the insure the quality of the water inside the air compressor .
2. Compared with the common oil injected air compressor , the maintenance cost is just 10% of it . Saving your human resources and maintenance cost
3. We have our own permanent magnet motor . Insde the motor it drives by the magnet not by the bearing . Save the friction losees . 10% energy efficiency compared with the common motor . As the cost of using air compressor . Energy cost take up 80% . For the 130kw air compressor as example . with one year we can save you 41184 KW energy concumption .
