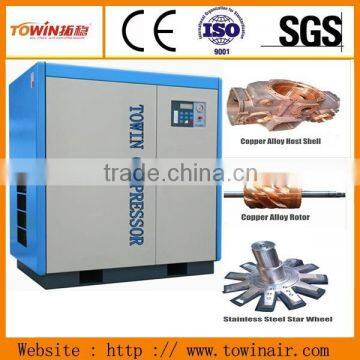

Frequency Conversion Water-lube Oil Free Screw Compressor (TW250S)

Specifications

Frequency Conversion water-lube oil free screw compressor
1)100% oil free,pure clean air
2)CE ,ISO9001 ,SGS
3)7.5KW~250KW

Frequency Conversion Water-lube Oil free Screw Compressors

Our Company

Shanghai Towin is one of the most professional manufacturers of Air Compressor in China,supplying air Compressors ,especially silent oil free air compressor,screw air compressor, Air Dryers,Air Tanks, Precise Filters,and relevant spare parts.We keep the Quality First principle in our manufacturing under the certificate system. With more than 10-year experience, we are now exporting to most of the countries, including Turkey, Italy, Russia, Egypt, Malaysia, Indonesia,Vietnam, Brazil and so on.

Technical Parameters

Why Choose Water-lubrified Screw Compressor?

Applied Fields:Hospital,Chip,Textile,Biotechnology,Pharmaceuticals,Food Packing,Rice Mill etc.

- These industries have to get rid of any impurity and oil pollution risk, otherwise it will lead to serious consequences:product damage, then credibility, economy will be badly ruined. So must using water lubrication oil-free air compressor, it is only it that could achieve to 100% absolute purity without any air pollution.

Our Main Engine Components

1)Using pure water for lubrication and cooling, the body's internal components combination is made of special material-copper alloy,never corrosion;

2)Always having pure water circulating in its systerm and the systerm will automatically change water at set time to ensure the quality of the water line and the body temperature is not higher than 50 degrees, so the water in the body will not suffer water scale problem;
3)Adopting high-end special bearing, silicone bearing, so there is no any problem using pure water for lubrication , high efficiency, lower noise,less shaft bearing combination;
4)Directly sprayed pure water in the body, because water has higher calorific value, so the compression chamber is almost in isothermal compression state, energy saving;
5)Direct-driven between body and motor,Lower rotation speed ,below 3000 RPM, No overdrive gear,longevity and low maintenance.
6)Apart from the air filter,pure Water will wash and filter the impurities in the air ,ensuring the outlet clean air, greatly reduce the load and supplies expense of post processing equipment .

Workflow Diagram

Differences between Water-lube and Oil-lube Screw Compressor
