Help CenterDynamic Devulcanizer
Related Products
Specifications
The devulcanizer is applicable for devulcanizing & reclaiming scrap rubber powder.STRUCTURAL FEATURES:
The said devulcanizer adopts a new technology of devulcanization. Compared with traditional devulcanizing equipments, it is advanced in the following points:
1) The reclaim powder does not need to be ground so fine;
2) The devulcanizing time will be shortened;
3) Plastifiers, reclaiming agents and rubber powder can be put together into the devulcanizer;
4) No polluted water will be let out during the devulcanization;
5) The quality is higher;
6) The devulcanizing vessel can be automatically open and close.

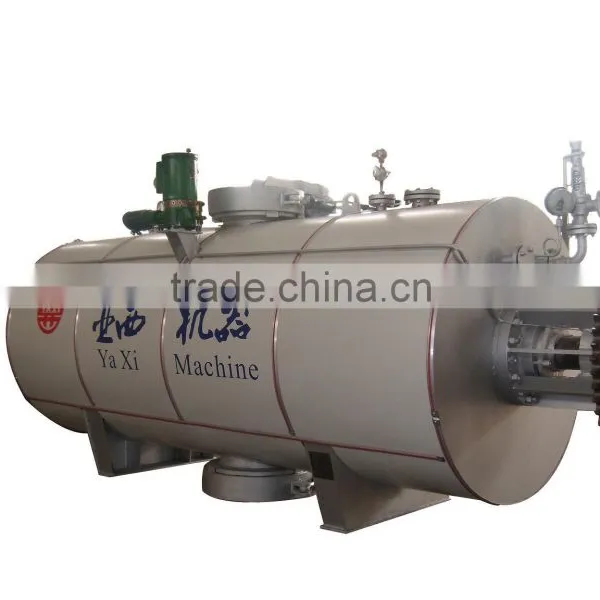

The said devulcanizer is a horizontal pressurized vessel with mixing paddles fixed in it. The mixing shaft with paddles can rotate clockwise and anti-clockwise. The left and right rotating paddles push the material in the vessel moving along the shaft to be well mixed and equally heated.
The devulcanizer employs a hydraulic system to open, close and lock up the feeding door and the discharging door.
APPLICATION:
The devulcanizer is applicable for devulcanizing & reclaiming scrap rubber powder.
Technical Parameters:
Model & Spec. |
DTG-Φ1200x3000A |
|
Interior Diameter of Container (mm) |
1200 |
|
Working Length of Container (mm) |
3000 |
|
Working Pressure of Container (Mpa) |
2.2 |
|
Working Temperature (ºC) |
230 |
|
Heating Medium |
Steam-gas |
|
Major Pressurized Material |
16MnR |
|
Container Classification |
MR-II |
|
Rotating Speed of Mixing Shaft (r/min) |
11 |
|
Main Motor Power (KW) |
15 |
|
Heating Method |
Oil Heating |
|
Feeding and Discharging Method |
Automatic |
|
Total Cubage (m3) |
4 |
|
Overall Dimensions (mm) |
Length |
4880 |
Width |
1930 |
|
High |
2210 |
|
Weight (Kg) |
7000 |
|
