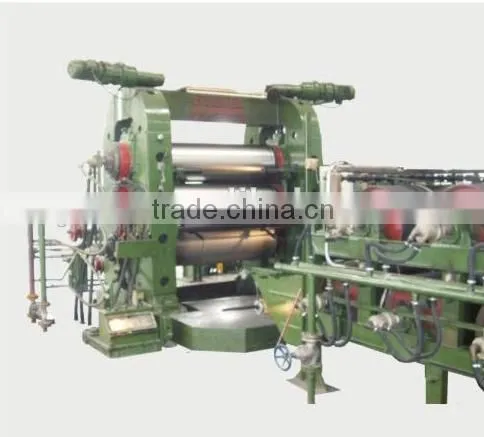

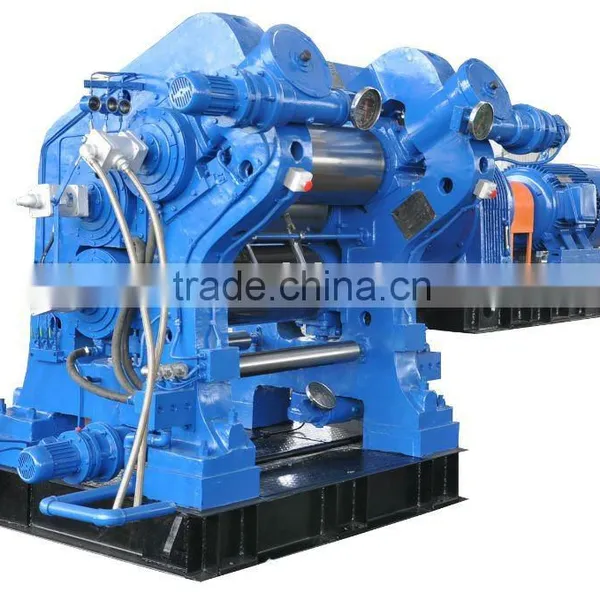

Help CenterThree-Roll Rubber Calender
Related Products
Specifications
The machine is chiefly applied to put rubber on cord fabric, canvas or other fabrics; to rubberize fabrics; or to make rubber shSTRUCTURAL FEATURES:
The machine is driven by DC motor with a wide range of speed adjustment. Working linear speeds can be steplessly regulated within the fixed range for different applications. The rolls are equipped with lubrication failure alarm device, as well as nip display and speed display.
The rolls are made of chilled cast iron of vanadium and titanium alloy. The roll face is hard and anti-wear. For heating up or cool down, the rolls are either circumferentially drilled or centrally bored so as to make temperature well proportioned on the roll surface.
The rolls can be arranged in L, Γand I forms. The top roll has a camber that can eliminate bending impact on the roll in working process. Thus, it is possible to make products with same thickness along axial direction.
The transmission system adopts hard gear speed reducer, which has a compacted structure with higher transmission efficiency, lower noise and longer service life.
The machine is equipped with emergency device. When an emergent accident occurs, the calendar will be immediately stopped to open the roll space so as to protect the operator and equipment.
Application:
The machine is chiefly applied to put rubber on fabrics, canvas or other fabrics; to rubberize fabrics; or to make rubber sheets.
Technical Parameters:
Model & Spec. |
XY-3L900 (Φ360) |
Arrangement of Rolls |
L form |
Number of Rolls |
3 |
Working Diameter of Rolls (mm) |
360 |
Working Length of Rolls (mm) |
900 |
Linear Speed of Middle Roll (m/min) |
7~23 |
Rotating Speed Ratio of Rolls (Top : Middle : Low) |
1:1:1 |
Nip Range (mm) |
0~6 |
Max. Roll Temperature(ºC) |
130 |
Min. Thickness of Products (mm) |
0.2 |
Max. Width of Products (mm) |
700 |
Main Motor Power (kW) |
45 |
Speed Reducer |
Hard Gear Reducer |
Steam Pressure (Mpa) |
0.3~0.5 |
Cooling Water (Mpa) |
0.2~0.3 |
Overall Dimensions (mm) |
5430×1535×2340 |
Weight(Kg) |
9400 |
Note |
|
