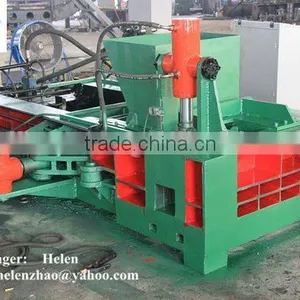

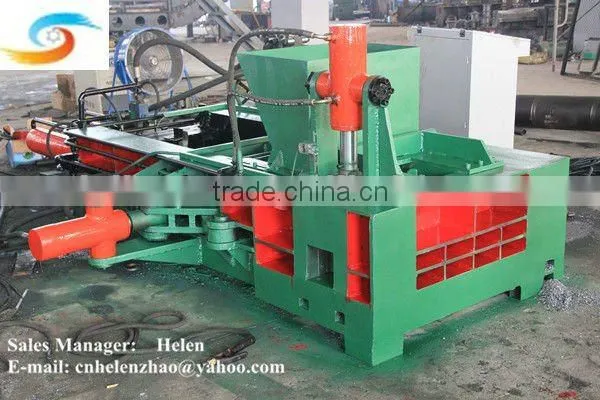

Y83 metal scrap Briquetting Presses Flatting mill crushing machine for AL Crumbs
- 200 Set / Sets per Month
- Shanghai
- T/T
- 4 axis CNC Milling Machine To Router 2d 3d Woodworking Craft
- Jotun JT-SDJ Industrial Automatic Metal Sheet Surface Polishing Machine
- Large Metal Sheet Metal Workpiece Processing Deburring Chamfering Plane Belt Polishing Machine
- Heavy Duty Automatic Wide Belt Metal Sand Deburring Machine
- Metal Plate Deburring and Rust Removal Machine Steel Plate Sand Belt Drawing and Polishing Equipment Flat Polishing Machine
- Metal Flat Sheet Laser Cutting Parts Deburring Grinding Polishing Machine Manufacturer
Product Details
Place of Origin: | Jiangsu, China | Brand Name: | Unite Top | Model Number: | Y83-3150 |
After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description
Specifications
Brand: Unite TopModel No.: Y83-3150
Place of origin: Jiangsu, China
Features: Hydraulic drive
1 Product name: Y83 metal scrap Briquetting Presses Flatting mill crushing machine for AL Crumbs
2 Applications:
Y83 series of briquetting presses are applied to compress metal sawdust (steel, cast iron, aluminum & copper) into high density briquettes to reduce burning loss during smelting. Cast iron briquettes can substitute pig iron as raw material.
3 Features:
- Hydraulic drive, operation stable, no vibration, safe & reliable.
- Simple foundation needed.
- PLC control, manual & automatic operation optional.
4 Technical specifications:
Model | Cyl. Force | Press Mould | Pressure on | Briquet Size | Briquet Weight | Production Rate | Motor |
(kN) | (mm) | Briquet (MPa) | (mm) | (kg) | (KG/HR) | (kW) | |
Y83-250A | 2000+550 | Φ110×180 | 263 | Φ110×(50-70) | 2.6-3.7 | 800-900 | 18.5 |
Φ120×180 | 221 | Φ120×(50-70) | 2.9-4.1 | ||||
Y83-250B | 2000+550 | Φ110×300 | 263 | Φ110×(70-100) | 3.6-5.2 | 1000-1100 | 22 |
Φ120×300 | 221 | Φ120×(70-100) | 4.1-5.9 | ||||
Y83-315A | 2850+550 | Φ120×180 | 278 | Φ120×(50-70) | 3.1-4.5 | 900-1100 | 22 |
Φ140×180 | 204 | Φ140×(50-70) | 3.6-5.1 | ||||
Y83-315B | 2850+550 | Φ120×300 | 278 | Φ120×(70-100) | 4.4-6.3 | 1100-1200 | 30 |
Y83-400 | 3450+550 | Φ125×300 | 326 | Φ125×(70-100) | 5-7.2 | 1200-1300 | 30/37 |
Φ140×300 | 260 | Φ140×(70-100) | 5.9-8.5 | ||||
Y83-500A | 4900+600 | Φ150×300 | 283 | Φ150×(70-100) | 6.9-9.9 | 1300-1800 | 30/45 |
Φ180×300 | 196 | Φ180×(70-100) | 8.9-12.8 | ||||
Y83-500B | 4900+600 | Φ150×300 | 283 | Φ150×(70-100) | 6.9-9.9 | 1300-1800 | 45 |
Φ180×300 | 196 | Φ180×(70-100) | 8.9-12.8 | ||||
Y83-400W | 3450+550 | Φ140×(300+200) | 260 | Φ140×(70-100) | 5.9-8.5 | 2000-3000 | 3×22 |
5 Quality standard
6 SERVICE
LIFELONG MAINTAINANCE AND CONSIDERATE TECHNICAL SUPPORT.
