Specifications
1. HDMI and 3G SDI interfaces2. 300 meters
3. 1080P 60Hz; No delay, no compression
4. 5GHz ISM; Point to point/multi-points
Introduction
The 300m Wireless HDMI/SDI Transmission Suite utilize today’s most advanced wireless video transmission technology, which can realize the broadcast-class and uncompressed 3G SDI and HDMI HD video signal transmitted with no compression and zero delay.
It can work in 5.1-5.9GHz frequency band and be flexibly software configured to licensed or ISM band of global different regions. Side panel of both transmitter and receiver have been installed a frequency select knob, which provides maximum 10 frequency channels, and supports maximum 4 sets working simultaneously. The wireless suite can accept wide range DC power input, which is suitable for many kinds of camera battery model.
Mian Features
1. HDMI and 3G SDI input and output
2. Highest resolution 1080P 60Hz, no delay and no compression
3. Maximum transmission distance 300m
4. 5GHz ISM frequency band, maximum 10 frequency channels selected by user knob, coexist with WIFI.
5. Support point to point, and point to multi points network topology
6. Each RX paired to the unique TX in factory
7. AES-128 encryption with air interface HD video data stream
8. Signal indicators for wireless power status, Video status and receiver RSSI
9. Wide range power voltage input, adapt most kinds of camera battery
10. Optional Sony F970 battery buckle, convenient for field battery install and replacement
Any input and output ports with ±8 kV ESD protection level (HBM, contact discharge)
Pictures

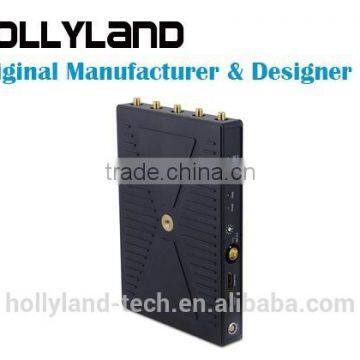

Receiver
Transmitter
Transmitter and Receiver
Transmitter and Receiver

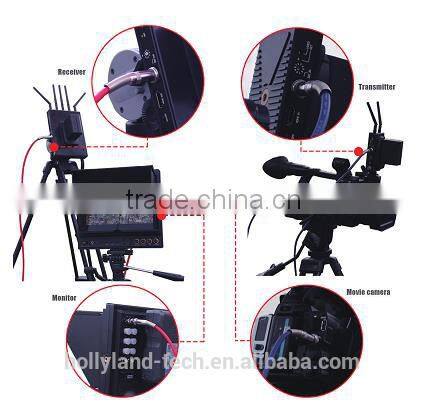

Installation
Parameters
| Transmitter | Receiver | |
| Interface |
SDI Input (BNC Female); HDMI Input (Type A female); 2 Antenna port (2 SMA male); DC input (4 pin LEMO female) |
SDI Output (BNC Female); HDMI Output(Type A female); 5 Antenna port(SMA male); DC input (4 pin LEMO female) |
| Voltage range | 6.5-16.8V DC | 6.5-16.8V DC |
| Power | < 6.5W | < 6 W |
| Size | 120x 70 x 25mm, not include antennas | 160x 110 x 25mm, not include antennas |
| Weight | 380g | 540g |
| Input Video |
HDMI: 525i, 625i, 720p 50/59.94/60,1080i 50/59.94/60, 1080p23.98/24/25/29.9/30/50/59.94/60; HDMI Type A SDI: 3G, HD, and SD-SDI (auto-selected), SMPTE-259/274/292/296/372/424/425;1x BNC |
/ |
| Output Video | / |
HDMI: 525i, 625i, 720p 50/59.94/60,1080i 50/59.94/60, 1080p23.98/24/25/29.9/30/50/59.94/60; HDMI Type A SDI: 3G, HD, and SD-SDI (auto-selected), SMPTE-259/274/292/296/372/424/425;1x BNC |
| Input Audio | SDI embedded 4 channel 24 bit/48KHz | |
| Output Audio | SDI embedded 4 channel 24 bit/48KHz | |
| Signal Indicator | POWER-Green; VIDEO-Yellow; |
POWER-Green; Wireless RSSI-Green(5 LEDs); VIDEO-Yellow |
| Frequency Band | 5.1-5.9GHz | 5.1-5.9GHz |
| Modulation Mode | OFDM 16QAM | OFDM 16QAM |
| Transmission Power | Maximum 21dBm | / |
| Receiver Sensitivity | / | -75dBm |
| Occupied Bandwidth | 20/40MHz | 20/40MHz |
| Temperature Range | 0~40°C(operating); -20~60°C(Storage) | 0~40°C(operating); -20~60°C(Storage) |
| Compliance | FCC; CE; | FCC; CE; |
Installation
Market
Our products are widely accepted among North America such as USA, Canada, Europe such as UK, Germany, France, Italy and Russia, and successfully be exported to Japan, Korea, India, Thailand and Australia as well.
Exhibition
HDMI Certification:
Shipping:
1. Express: UPS, FEDEX, EMS, DHL; by sea, air, etc.
2. Delivered time: Samples within 2-3 days, 14-21 days for mass order.
Service:
1. OEM & ODM service
2. 12 months guarantee with all products
3. Monthly output over 600,000 pcs
4. Reply via Email, Phone, IM within 12hour
5. Fluent English communication, always available to discuss product, pricing, samples and orders, etc.
Sample:
1. Sample is available.
2. Lead time: 5-10 working days, 14-21 days with OEM ones;
Payment:
1. T/T, Western Union, PayPal
2. 30% deposit, 70% before shipment.
1. Q: Are you manufacturer or trader?
A: We are manufacturer with 12 professional R&D engineers.
More than 100 skillful workers, and 1000 m2 production line.
2. Q: Where is your factory? Can I visit?
A: F6, Building 3, South 2nd Zone, Honghualing Industrial Park, Liu Xian Road, Xili Town,
Nanshan District, Shenzhen, China.
Welcome to visit us!
3. Q: Can I get some samples?
A: We can provide samples. Contact me to talk about the details please.
