Wifi HDMI, Wireless HDMI Transmitter and Receiver

Specifications

1,wireless hdmi max transmission is300M
2, OEM & ODM are all available
3,a set of HDMI Wireless Transmitter and Receiver

wireless hdmi transmitter,wifi hdmi, OEM and ODM

(HLWH003B)



Specification:

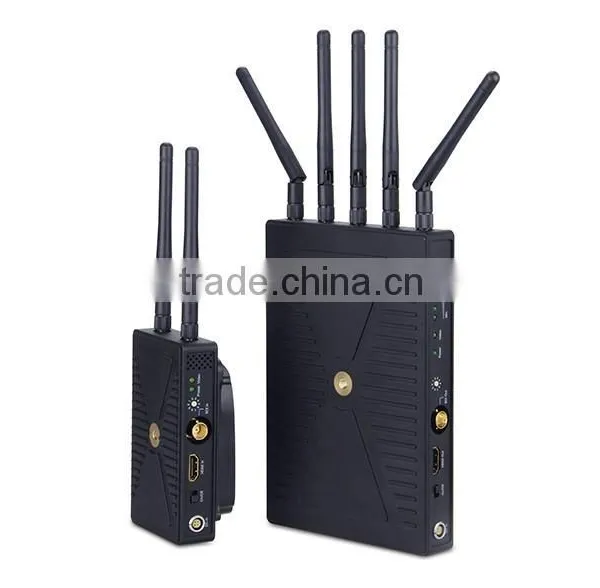

The wireless hdmi transmitter utilize today’s most advanced wireless video transmission technology, which can realize the broadcast-class and uncompressed 3G SDI/HDMI HD video signal transmitted with no compression and zero delay. The wireless hdmi transmitter  includes one transmitter and one receiver, where the transmitter provides a 3G/HD SDI input and a HDMI input, and the receiver also provides a 3G/HD SDI output and a HDMI output. This wifi HDMI has 2 stick antennas in transmitter side, and 5 stick antennas in receiver side, and it can work in 5.1-5.9GHz frequency band and be flexibly software configured to licensed or ISM band of global different regions, as well as the side panel of both transmitter and receiver have been installed a frequency select knob, which provides It can accept wide range DC power input, which is suitable for many kinds of camera battery model. It also can sustain ±8 kV ESD (HBM, contact discharge), the industry class metal case and professional heat design would guarantee most robust reliability.



Main features of the wifi hdmi:

HDMI 1.3 spec supports

HDMI and 3G SDI input and output

Highest resolution 1080p 60,no delay and no compression

It can support audio formats include Dolby True HD, DTS-master, etc.

AES-128 encryption with air interface HD video data stream

It can support point to point, and point to multi points network topology

Each RX paired to the unique TX in factory,

5GHz ISM frequency band,maximum 10 frequency channels selected by user knob, coexist with WIFI.

Maximum transmission distance 300m

Signal indicators for wireless power status, Video status and receiver RSSI

Wide range power voltage input, adapt most kinds of camera battery

Optional Sony F970 battery buckle, convenient for field battery install and replacement

Any input and output ports with ±8 kV ESD protection level (HBM, contact discharge)

Industrial metal case, stable and reliable



Parameters:

	Transmitter	Receiver

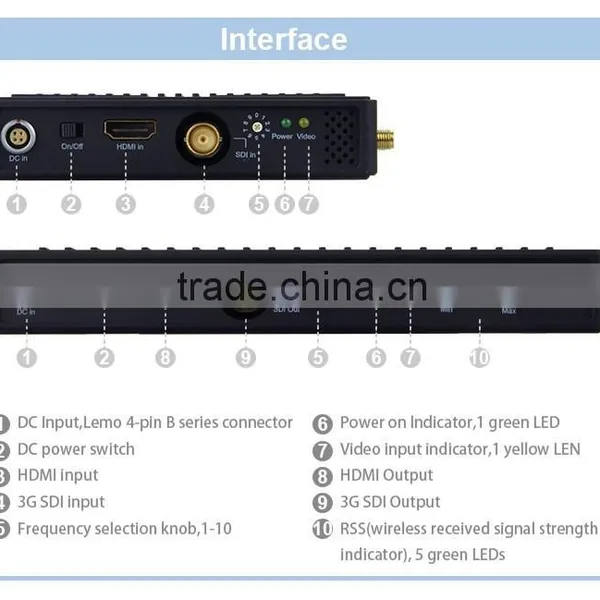

Interface	SDI Input(BNC Female); HDMI Input(Type A female); 2 Antenna port(2 SMA male); DC input (4 pin LEMO female)	SDI Output(BNC Female); HDMI Output(Type A female); 5 Antenna port(SMA male); DC input (4 pin LEMO female)
Supply voltage range	6.5-16.8V DC	6.5-16.8V DC
Power consumption	<6.5W	< 6 W
Size	(L x W x H): 120x 70 x 25mm, don’t include antennas	(L x W x H): 160x 110 x 25mm, don’t include antennas
Mass	380g	540g
Input Video Format	HDMI: 525i, 625i, 720p 50/59.94/60,1080i 50/59.94/60,1080p23.98/24/25/29.9/30/50/59.94/60;HDMI Type A SDI:3G, HD, and SD-SDI (auto-selected), SMPTE-259/274/292/296/372/424/425;1x BNC	/
Output Video Format	/	HDMI: 525i, 625i, 720p 50/59.94/60,1080i 50/59.94/60,1080p23.98/24/25/29.9/30/50/59.94/60;HDMI Type A SDI:3G, HD, and SD-SDI (auto-selected), SMPTE-259/274/292/296/372/424/425;1x BNC
Input Audio Format	SDI embedded 4 channel 24 bit/48KHz	/
Output Audio	/	SDI embedded 4 channel 24 bit/48KHz
Signal Indicator	POWER-Green; VIDEO-Yellow	POWER-Green;Wireless RSSI-Green(5 LEDs);VIDEO-Yellow
Frequency Band	5.1-5.9GHz,configurable with China, North American, Europe, etc	5.1-5.9GHz,configurable with China, North American, Europe, etc
Modulation Mode	OFDM 16QAM	OFDM 16QAM
Transmission Power	Maximum 21dBm	/
Receiver Sensitivity	/	-75dBm
Occupied Bandwidth	20/40MHz	20/40MHz
Temperature Range	0 ~ 40°C (operating condition); -20~60°C(Storage)	0 ~ 40°C (operating condition); -20~60°C(Storage)
Compliance	FCC; CE.	FCC; CE.



Packing list:

1 unit transmitter

1 unit receiver

7 5GHz Omni-directional and high efficiency antennas (SMA female)

2 DC convert cable (LEMO 4 pin-male to D-Type receptacle)

1 user manual, 2 torx screwdriver, 1 1/4-20 screw to ISO518 hot-shoe converter.

SONY NP-F970/Panasonic D28s/Canon 5D2 battery buckle (Optional)

 350*250*50mm carton packing
