300M wireless video transmission system supporting HDMI & SDI (HLWH003B)
Introduction:
The Long Range Wireless HDMI/SDI Transmission Suite utilize today’s most advanced wireless video transmission technology, which can realize the broadcast-class and uncompressed 3G SDI/HDMI HD video signal transmitted with no compression and zero delay. it can work in 5.1-5.9GHz frequency band and be flexibly software configured to licensed or ISM band of global different regions, as well as the side panel of both transmitter and receiver have been installed a frequency select knob, which providesmaximum 10 workable frequency channels, and supportsmaximum 4 sets working simultaneously. The wireless suite can accept wide range DC power input, which is suitable for many kinds of camera battery model.
Mian Features:
1. HDMI and 3G SDI input and output
2. Highest resolution 1080p 60,no delay and no compression
3. AES-128 encryption with air interface HD video data stream
4. Support point to point, and point to multi points network topology
5. Each RX paired to the unique TX in factory,
6. 5GHz ISM frequency band,maximum 10 frequency channels selected by user knob, coexist with WIFI.
7. Maximumtransmission distance 300m
8. Signal indicators for wireless power status, Video status and receiver RSSI
9. Wide range power voltage input, adapt most kinds of camera battery
10.Optional Sony F970 battery buckle, convenient for field battery install and replacement
Any input and output ports with ±8 kV ESD protection level (HBM, contact discharge)

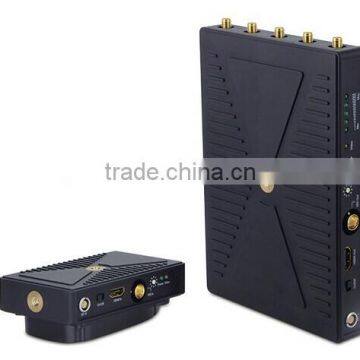

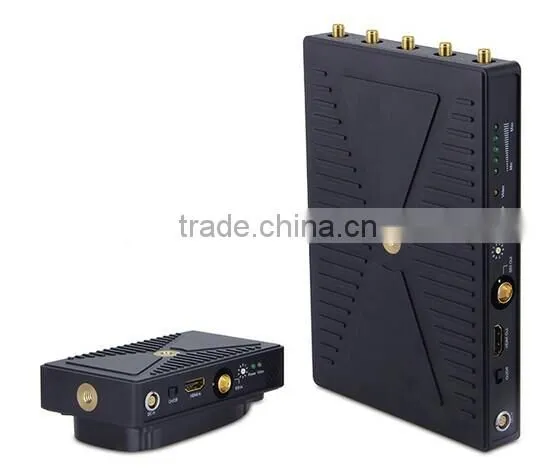

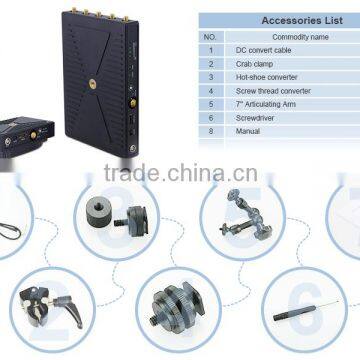

Products prictures:
Parameters:
|
Transmitter |
Receiver |

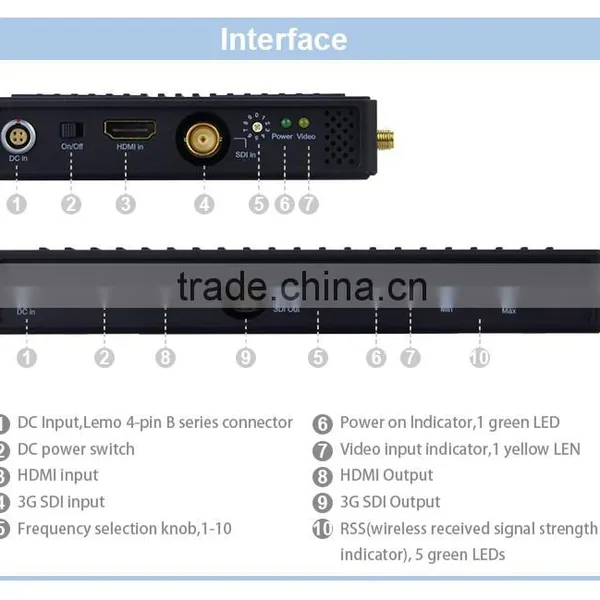

Interface |
SDI Input(BNC Female); HDMI Input(Type A female); 2 Antenna port(2 SMA male); DC input (4 pin LEMO female) |
SDI Output(BNC Female); HDMI Output(Type A female); 5 Antenna port(SMA male); DC input (4 pin LEMO female) |
Supply voltage range |
6.5-16.8V DC |
6.5-16.8V DC |
Power consumption |
<6.5W |
< 6 W |
Size |
(L x W x H): 120x 70 x 25mm,don’t include antennas |
(L x W x H): 160x 110 x 25mm,don’t include antennas |
Mass |
380g |
540g |
Input Video Format |
HDMI: 525i, 625i, 720p 50/59.94/60,1080i 50/59.94/60,1080p23.98/24/25/29.9/30/50/59.94/60;HDMI Type A SDI:3G, HD, and SD-SDI (auto-selected), SMPTE-259/274/292/296/372/424/425;1x BNC |
/ |
Output Video Format |
/ |
HDMI: 525i, 625i, 720p 50/59.94/60,1080i 50/59.94/60,1080p23.98/24/25/29.9/30/50/59.94/60;HDMI Type A SDI:3G, HD, and SD-SDI (auto-selected), SMPTE-259/274/292/296/372/424/425;1x BNC |
Input Audio Format |
SDI embedded 4 channel 24 bit/48KHz |
/ |
Output Audio |
/ |
SDI embedded 4 channel 24 bit/48KHz |
Signal Indicator |
POWER-Green; VIDEO-Yellow |
POWER-Green;Wireless RSSI-Green(5 LEDs);VIDEO-Yellow |
Frequency Band |
5.1-5.9GHz,configurable with China, North American, Europe, etc |
5.1-5.9GHz,configurable with China, North American, Europe, etc |
Modulation Mode |
OFDM 16QAM |
OFDM 16QAM |
Transmission Power |
Maximum21dBm |
/ |
Receiver Sensitivity |
/ |
-75dBm |
Occupied Bandwidth |
20/40MHz |
20/40MHz |
Temperature Range |
0~40°C(operating condition);-20~60°C(Storage) |
0 ~ 40°C (operating condition);-20~60°C(Storage) |
Compliance |
FCC; CE. |
FCC; CE. |
Installation
Installation details and cautions
Transmitter side
a) Install 2 Omni-directional and high efficiencyantennas to Transmitter’s SMA male antenna connectors.
b) There are 3 1/4-20 screw nuts in transmitter metal case, which are located on surface, rear and bottom. So the user can utilize a 1/4 screw to ISO518 hot-shoe converter fix the transmitter on camera.
c)Install Battery into battery buckle if your product model includes battery buckle option; please note the battery model must match the battery buckle type.
d) The user can also utilize a subsidiary LEMO 4 pinmale toD-Type receptacle power cable to get power input from an outside power source.
e) All TX installation guidelines see below figure.
Receiver side
a) Install 5 pcsOmni-directional and high efficiency antennas to receiver’s SMA male antenna connectors.
b) There are a 1/4-20 screw nut in the surface side of receiver. The user can utilize a 1/4 screw fix the subsidiary metal hook with the receiver.
c) Install Battery into battery buckle if your product model includes the optionof battery buckles; please note the battery model must match the battery buckle type.
d) The user can also utilize a subsidiary LEMO 4 pin-male toD-Type receptacle power cable to get power input from an outside power source.
e) All RX installation guidelines see below figure.
Typical connection instruction
Connectcamera SDI or HDMI output to transmitter SDI or HDMI input port, and the transmitter can fixed in hot-shoe port of the camera. Connect HDMI or SDI output port of the receiver to SDI or HDMI input port of the HD monitor. Make sure all antennas and batteries are equipped normally. See below figure.
