Mian Features:

 1. HDMI and 3G SDI input and output

 2. Highest resolution 1080p 60,no delay and no compression

 3. AES-128 encryption with air interface HD video data stream

 4. Support point to point, and point to multi points network topology

 5. Each RX paired to the unique TX in factory,

 6. 5GHz ISM frequency band,maximum 10 frequency channels selected by user knob, coexist with WIFI.

 7. Maximumtransmission distance 300m

 8. Signal indicators for wireless power status, Video status and receiver RSSI

 9. Wide range power voltage input, adapt most kinds of camera battery

10.Optional Sony F970 battery buckle, convenient for field battery install and replacement

     Any input and output ports with ±8 kV ESD protection level (HBM, contact discharge)

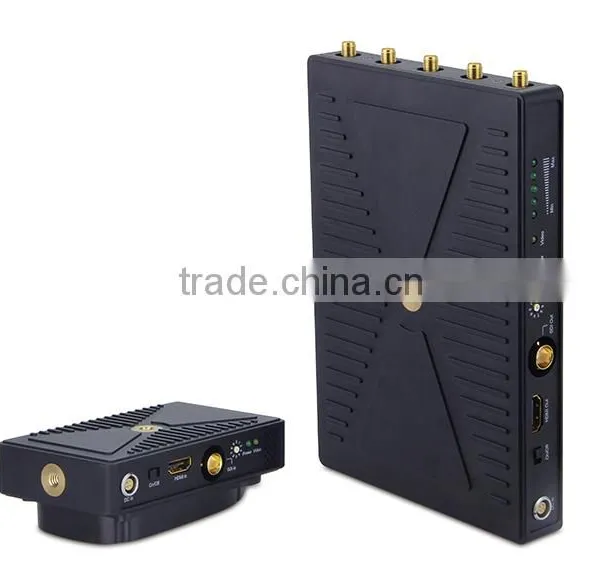

Products prictures:

Parameters:

Installation

Installation details and cautions

Transmitter side

a)  Install 2 Omni-directional and high efficiencyantennas to Transmitter’s SMA male antenna connectors.

b) There are 3 1/4-20 screw nuts in transmitter metal case, which are located on surface, rear and bottom. So the user can utilize a 1/4 screw to ISO518 hot-shoe converter fix the transmitter on camera.

c)Install Battery into battery buckle if your product model includes battery buckle option; please note the battery model must match the battery buckle type.

d) The user can also utilize a subsidiary LEMO 4 pinmale toD-Type receptacle power cable to get power input from an outside power source.

e) All TX installation guidelines see below figure.

Receiver side

a)   Install 5 pcsOmni-directional and high efficiency antennas to receiver’s SMA male antenna connectors.

b)  There are a 1/4-20 screw nut in the surface side of receiver. The user can utilize a 1/4 screw fix the subsidiary metal hook with the receiver.

c)  Install Battery into battery buckle if your product model includes the optionof battery buckles; please note the battery model must match the battery buckle type.

d)  The user can also utilize a subsidiary LEMO 4 pin-male toD-Type receptacle power cable to get power input from an outside power source.

e)   All RX installation guidelines see below figure.

Typical connection instruction

Connectcamera SDI or HDMI output to transmitter SDI or HDMI input port, and the transmitter can fixed in hot-shoe port of the camera. Connect HDMI or SDI output port of the receiver to SDI or HDMI input port of the HD monitor. Make sure all antennas and batteries are equipped normally. See below figure.
