Specifications
paint dispenser1Precise dispensing,
2Resorption keep nozzle from block
3Mixing motor keep colorant w
I. paint dispenser

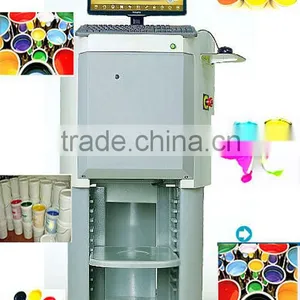

The paint tinter is our new model for sequential dispensing and especially designed for small to medium retail operations with limited floor space available. It features well-known piston pump system (40ml/stroke), centralized automatic bottom stirring and attractive appearances.
II. paint dispenser Technical Specification
Item |
Content |
Item |
Content |
Number of Canisters |
16/14/12/10/8/6 |
Min Dispensing |
0.077ml(1Y/384) |
Max Flow Rate |
0. 60ltr/min |
Canister Size |
3.8/2.3/1.8 Ltr |
Pump Size |
62mltr |
Stirring Speed |
20RPM |
Power |
100W |
Power Supply |
220V/110V±5% 50/60HZ |
Can Size (D x H) |
Max320X450mm |
Stirring Timing |
Stir 10 minutes every 4 hours |
Min80X100mm | |||
Noise Level |
<70dBA |
Weight: |
175±3 kg |
Machine Size (HxWx D) |
720X840X1300(mm) |
||
III. paint dispenser Main Composition
IV. Paint tinter Software
a.installation
b. fill colorant
c. purge and clean
d.dispense and tinting
V. Paint tinter Electric Diagram.
VI.Trouble Shooting
Problem |
Cause |
Action |
Stirring motor doesn’t work. |
1. A4 is not power on. 2. Fuse is broken. 3. Motor is not connected. 4. Motor is broken. |
1. Check the power. 2. Change the fuse. 3. Open the side door, reconnect wire. 4. Change the motor. |
Colorant dispense out not continually. |
1. There is air in the pump cylinder. 2. Colorant level is too low. 3. Colorant is dry and blocked. |
1. Purge cylinder. 2. Add colorant. 3. Clean canister. |
Canister is loosed. |
Fasten screw is loosed. |
Fasten screw. |
Dispensing colorant is difficult. |
1. Nozzle is blocked. 2. Valve motor is broken. 3. Valve handle cannot open. |
1. Clean Nozzle. 2. Change valve motor. 3. Adjust the motor and valve position. |
|
Piston difficult to move.
|
1. Colorant is dried inside. 2. Screw drive and guiding rod are not lubricated. 3. Fastening screw is loosed. |
1. Empty colorant, clean canister and pump cylinder. 2. Lubricate screw drive and guiding rod 3. Fasten screw. |
Abnormal noise from step motor. |
1. Voltage is out of normal range. 2. Screw drive and guiding rod are not lubricated. 3. Fastening screw is loosed. |
1. Check the power supply. 2. Lubricate screw and guiding rod 3. Fasten screw. |
Colorant appears on the nozzle. |
Sealing washer is damaged. |
Change sealing washer. |
LCD shows “Emergency Button Pressed”. |
1. Emergency button is pressed. 2. Emergency button is broken or the wire is disconnected. |
Release emergency button. Replace emergency button or connect wire. |
LCD shows “Door Open”. |
The door is not closed well. |
Close the door. |
