Product Details
Place of Origin | Hainan, China | Brand Name | GT | |
Model Number | GT 4000 | Condition | New | |
After-sales Service Provided | Engineers available to service machinery overseas |
Product Description

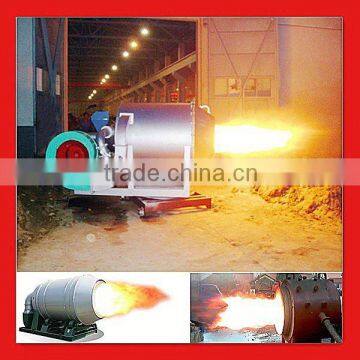

Coal burner
1. Coal burner for metal heater is fit for coal burning system of middle and small rotary kiln.
2. Sufficient burning, flame powerful, strong, not hurting kiln coating, repairable , low expense of after-sales service.
3. Adjustable boiler tempetature and flame length
4. Advanced structure, high performance
5. The main parts are made of high temperature resistance ceramic element, it is more stable and reliable when working, the system investment is small.
Main technical parameter
Model | Rated coal consumption(kg/h) | Motor power (kw) | Air output (m3/h) | Spray send pressure (water column)(mm) |
GT80-3 | 30-80 | 5.5 | 800-1000 | 100 |
GT130-3 | 80-130 | 7.5 | 1000-1300 | 130 |
GT180-3 | 100-180 | 7.5 | 1200-1500 | 130 |
GT250-3 | 150-250 | 11 | 2000-2300 | 130 |
GT300-3 | 200-300 | 13 | 2100-2500 | 150 |
GT400-3 | 250-400 | 15 | 2300-1700 | 170 |
GT500-4 | 350-500 | 18.5 | 3200-4000 | 190 |
GT650-4 | 400-650 | 22 | 3500-4300 | 200 |
GT750-4 | 500-750 | 30 | 4000-4700 | 200 |
GT1000-4 | 600-1000 | 37 | 4500-5500 | 200 |
GT1500-4 | 800-1500 | 42 | 5800-6300 | 230 |
GT2000-4 | 1200-2000 | 47 | 6000-6800 | 270 |
GT2500-4 | 1800-2500 | 55 | 6500-7200 | 270 |
GT3000-4 | 2300-3000 | 75 | 7000-8500 | 290 |
Characteristic
1. Based on the mechanism of forming NOx (forming NOx mechanism and fuel NOx mechanism) during the course of burning of fuel to form NOx, to control the NOx content in fume.
2. Muti-channel low NOx discharge burner can make the NOx consistence in fume greatly decrease, 40-60% lower than normal, by applying feedback result to indicate that the NOx content in fume at end of kiln normally is 350~400ppm, about 50% lower than ordinary value 800ppm which have reached the advance level in international.
3.the shape and length of flame for Muti-channel low NOx discharge burner can meet the requirement for calcining technics and temperature distribution in rotary kiln, and the shape and length of flame can be adjusted.
4. the temperature of flame can be controlled, that is the top temperature can be controlled, therefore to prevent the material over-burning, to make the kiln avoid forming ring block.
5.muti-phase burning and mixing burning can be adapted, also can be used sole burning in single-phase fuel.
Application: Coal burner for metal heater is applicable to a variety of annealing furnace, metal furnace, hardening furnace, precision casting shell burning furnace, melting furnace, forging furnace and other furnace kiln.
CE/ ISO/ BV And Etc..
Standard export cases:
- Professional technical
- The punctual delivery of goods, quality and quantity guaranteed.
- Before the machine delivery, we will test the machines in our factory and make sure machines are running well. We welcome you and your partners come to visit our factory and products. And we will pick you up at the airport.
- We will send one engineer for installation, start up and training on the operations in your plant if you need. And we can also provide technical guidance online at any time.
- 24-hours hotline
Established in 2008, Golden Triumph is a professional manufacture and supplier of coal burner, coal pulverizer machinery. We are engaged in providing not only individual equipment, but also the whole production line and processing craft.
As an ISO9001 and ISO14001 certified company, we takes pride in our extensive quality control systems with many of our products being CCC, CE and UL certified.
We can do OEM as customers kinds requirements. Our objective is high efficiency service for the coal burner, coal pulverizer and win the future together.
1. Q: How about the quality?
We guarantee them for 1 year generally, but our customer used our machines for many years without problem.
2. Q: How long is your guarantee?
A: One year(Calculated from the equipment arrives at the customer’s side.).
If there is any problem within guarantee period (excluding cased by human's wrong action), we will send you spare parts for free.After this period we will definitely support you when needed.
You will be welcome to contact us with any problem may happen.
3. Q: How should I order? What payment method do you accept?
A: Choose the products what you like, and send inquiry to us for more details (or you can call us, chat with us by online chat software such as TradeManager,Skype; Mobile chat software such as Whatsapp,Line,Viber,Wechat,etc.). After confirming all details and signing the contract, you can pay prepayment, then we produce machines after receiving prepayment. We deliver these machines by ship according to our agreement. We send the documents to you after shipment.
We accept payment by T/T generally, and also accept L/C
4.Q: How can I get to your company?
A:We are located in Zhengzhou City, China.
You can get a flight to Xinzheng International Airport.We will go to airport to pick you up. It takes around one hour from airport to our office.
You may also come to our city by High Speed Railway train, we will go to train station to pick you up.
5.Q: Lead time?
Within 15 days after receive payment
6.Q: Packing?
Fiber wooden boxes, suitable for International transportation
