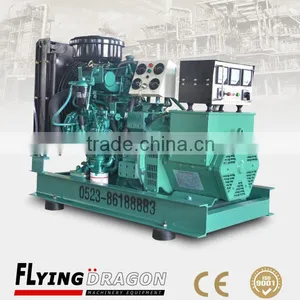

18KW Samll Power Diesel Generator with Yuchai 22.5KVA Engine
18KW Diesel Generator with Yuchai Engine Open Type
is produced by taking advantages of German FEV technology. The machine body and cylinder are made of the high-strengh alloy cast iron, and uses one-piece forged steel crankshaft and sliding bearing, so it has samll volume with light weight, be more reliable. Normally, the overhaul period is more than 12000 hours. Yuchai diesel gensets have such features as compact structure, big storage power, high reliability and good speed control performance.
Technical Parameters of 18KW Samll Power Diesel Generator with Yuchai 22.5KVA Engine:
1. Genset Model: CL-18Y;
2. Output power：18KW/22.5KVA,
3. Rated Voltage: 400/230V;
4. Dimension （L X W X H）mm：1500 *750 * 1050;
5. Weight：650Kg;
6. Bore×Stroke(mm): 108*120;
7. The regulating rate of steady voltage: ≤±0.5%;
8. The regulating rate of instantaneous voltage: ≤-10%/ +15%;
9. The time of steady voltage: ≤1.5sec;
10. The waving rate of voltage: ≤0.5%;
11. The regulating rate of steady frequency: ≤2%;
12. The regulating rate of instantaneous frequency: ≤±5%;
Diesel Engine of 18KW Samll Power Diesel Generator:
1. Brand: Yuchai;
2. Model: YC2108D;
3. Cylinder No.:2;
4. Rotating Speed: 1500/18000RPM;
5. Displacement: 2.2L;
6. Lubricating oil capacity: 10L;
7. Fuel Consumption: 225g/kw.h.
8. Starting way: DC24V starting with electricity;
9. The regulation of rotating speed: Electronic speed.
Alternator of 18KW Samll Power Diesel Generator with Yuchai 22.5KVA Engine:
Brand ( selectable): Hengsheng/Stamford/Marathon etc.;
Number of Phase: 3;
Connecting Type: Three Phase and Four Lines;
Grading Protection: IP21-23;
Exciter Type: Brushless (AVR automatic voltage regulating);
Insulation Class: H degree.
Control Panel
The control panel is Quadruplication protection control panel, with the display of frequency table/water temperature/schedule/battery voltmeter. The genset with low oil pressure, high water temperature, over speed emergency, stop and other pre-protection.
Optional Types for Engine
Cummins Engine(USA ) 15KVA - 2000KVA
Deutz Engine(Germany) 20KVA - 150KVA
Perkins Engine(UK) 8KVA - 2000KVA
Volvo Engine(Sweden) 85KVA - 700KVA
Doosan Engine(Korea) 60KVA - 850KVA
Lovol Engine(China) 20KVA - 150KVA
Yangdong Engine(China) 8KVA - 40KVA
Weichai Engine(China) 8KVA - 150KVA
Shanghai Engine (China) 60KVA-1000KVA
Yuchai Engine (China) 20KVA-1125KVA
Optional types for Diesel generator set: Soundproof type, Open type.

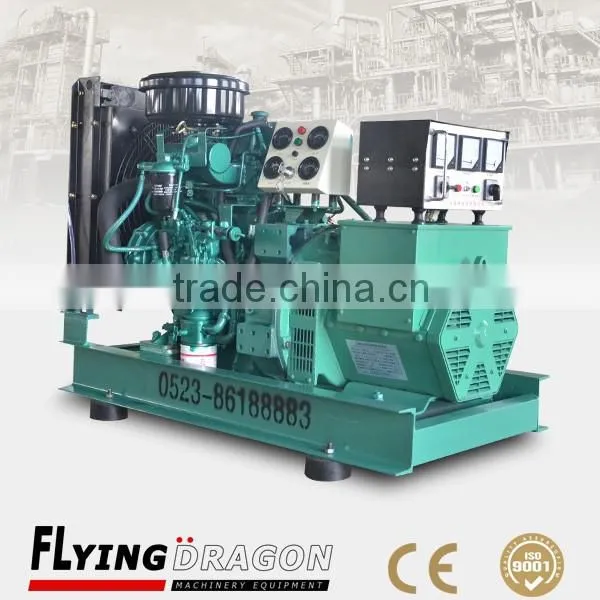

Open type of 18KW Samll Power Diesel Generator with Yuchai 22.5KVA Engine
Open Type 400KW diesel generator with Cummins Engine
Silent Type 300KW diesel generator with Cummins Engine
Rainproof type 100kw diesel generator with Cummins Engine
Trailer type 150kw diesel generator with Cummins Engine
Container type 800KVA diesel generator with Cummins Engine
Each category generator of our company can share 12 months or 1000 woking hours maintenance. We are responsible for all malfunctions arised from sructural defect of gen-set itself. Wearing parts, daily used consumable parts and destroyed parts by wrong operation or maintenance ignorance are not in the range of quality gurantee.
Packing Details : lastic film wrap up the generator, load into Plywood case, 1 set/case;
Delivery Details : 7 working days after receiving the deposit.
