Specification

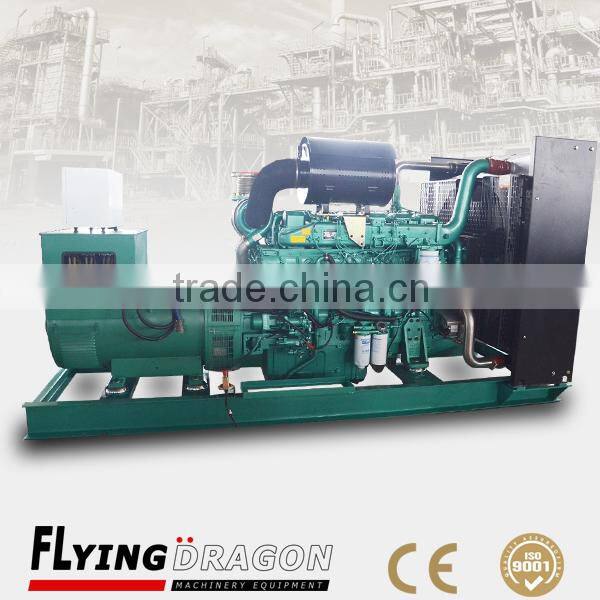

550kva low noise generator
With YUCHAI engine YC6T660L-D20
Turbocharge and charge air intercooled aspiration
Reliable emergency power generation
Warranty 12 months or 1000 hours warranty time
Less fuel consumption 550kva electric generator cheap low noise diesel generator price with China home brand engine
1.Components of 550kva low noise generator
1a. Diesel engine
1b. Alternator
1c. Control panel
1d. The accessories, Wave pipe, Curved Pipe, Muffler, Accumulator, The connecting wires, Shock absorber spacer, Bellows, Documents and data and so on
2.Technical specification
| THE GENSET DATA of 550kva low noise generator | |
| Item no.: | CLY-440YG |
| Output power: | 440KW/550KVA |
| Power factor: | Cos=1(lagging) |
| Rated Voltage: | 400V/230V |
| Rated frequency: | 50HZ AC |
| Rated current: | 792A |
| Fuel: | Diesel |
| The regulating rate of steady voltage: | ≤±0.5% |
| The regulating rate of instantaneous voltage: | ≤-10/+15 |
| The time of steady voltage: | 1.5 sec |
| The waving rate of voltage: | ≤0.5% |
| Voltage waveform distortion degree: | ≤5% |
| The regulating rate of steady frequency: | ≤±2% |
| The regulating rate of instantaneous frequency: | ≤±5% |
| The time of steady frequency: | 3 sec |
| The waving rate of frequency: | ≤±0.5% |
| Fuel consumption for full load(g/kw.h): | 195 |
| Overall dimension (L*W*H (mm*mm*mm): | 3500*1500*1970 (open type) 4300*2100*2300(enclosed type) 4300*2100* 3300(trailer type) |
| Weight(kgs) | 4000(open type) 6000(enclosed type) 7200(trailer type) |
| THE ENGINE DATA of 550kva low noise generator | |
| Brand & model: | YUCHAI YC6T660L-D20 |
| Configuration: | 4-cycle, in-line 6-cylinder waste gas turbine boost,direct spurting type |
| Aspiration | turbocharge and charge air intercooled |
| Engine rotating speed: | 1500RPM |
| Compression ratio | 18:1 |
| Cooled way: | Radiator cooled, fans driven by belt, with safety guard |
| Start way: | DC 24V charge battery |
| Governor system | Precise electric governor system |
| Filter system: | Air filter, oil filter, fuel filter |
| Bore *Trip(mm*mm): | 145mm*165mm |
| Displacement(L): | 16.35 |
| Lube capacity(L): | 52 |
| The ALTERNATOR DATA of 550kva low noise generator | |
| Brand: | Stamford, Marathon,Hengsheng (optional) |
| Structure: | Brushless single bear 4 poles drip-proof |
| Excited type: | Self excited |
Voltage regulating type: | Automatic voltage regulating |
| The connecting way of phase: | 3 phase 4 wires Y connecting |
| Winding: | 100% copper |
Insulation degree: | H |
| Protection grade: | IP21-IP23 |
| TIF: | <50 |
| THF: | <2% |
| THE CONTROLLER DATA of 550kva low noise generator | |
| Brand: | Smartgen, Harsen, Deepsea, ComAP (optional) |
| Type: | Standard equipment, Auto start and stop, Auto transfer between mains and gensets |
| The controller panel is LCD panel, it can display a variety of electricity and oil machine parameters in Chinese and English; with automatic and manual, shutdown(Emergency stop) etc. control functions, it can protect aganist low oil presssure, high temperature, low or high voltage, high or low frequency, over current etc. can meet the needs of various gensets. | |
Package of Less fuel consumption 550kva electric generator cheap low noise diesel generator price with China home brand engine
Usually, it is with plywood case
Shippin of Less fuel consumption 550kva electric generator cheap low noise diesel generator price with China home brand engine
We ship the goods by sea after receiving the balance
Service of Less fuel consumption 550kva electric generator cheap low noise diesel generator price with China home brand engine
- Free loading capacity analysis
- Free technology consulations
- Free testing and debuging
- 12months or 1000hours warranty service
- Spare parts offered
- OEM service buyer label offered
- 24/7 on-line technical service
What's the frequency of the diesel generator sets?
50HZ AC or 60HZ AC.
What's your voltage of the diesel generator sets?
380V/220V,400V/230V or as requirement.
Which industries need the diesel generator sets?
Building, Hospital, Telecom, Banks, Train station, Metallurgical & Mining, Municipal Engineering and so on.
What's your payment & delivery time?
T/T, L/C, West union.
Generally, we delivery the goods within 7 working days after receiving your deposit.
What's your warranty?
12 months or 1000 hours of warranty time for all of our products, not include the wearing-parts, daily consumable and human error of operating & maintenace, but we can offer the cheaper spare parts than other factory.
