Home > Products > with Weichai engine generator > 120kw diesel engine generator 150kva alternator gensets for sale
120kw diesel engine generator 150kva alternator gensets for sale
- Shanghai Ningbo Qingdao
- T/T Credit Card
You May Like
-
open type 100kw alternator generator diesel 125kva generator set
-
portable generator sets 75kw electricity diesel gensets for sale
-
Weichai generator 50kw power electric gensets for sale
-
Weicha diesel generator 40kw small power genset 50kva diesel genrator set
-
CE approved famous manufacturer 280Kw Electric generator powered by Weichai engine
-
Factory price 200Kw diesel generator powered by Weichia Deutz engine
Product Details
Place of Origin | Jiangsu, China | Brand Name | Chenlong | |
Model Number | CLW-120WG | Output Type | AC Three Phase | |
Speed | 1500/1800RPM | Frequency | 50/60HZ | |
Rated Power | 120kw/150kva | Rated Voltage | 220/380V | |
Rated Current | 216A |
Product Description
Our Diesel Generator Production Range is as follows:
* Engine (motor) for Choice
Cummins Engine(USA ) 15KVA - 2000KVA
Deutz Engine(Germany) 20KVA - 150KVA
Perkins Engine(UK) 8KVA - 2000KVA
Volvo Engine(Sweden) 85KVA - 700KVA
Doosan Engine(Korea) 60KVA - 850KVA
Lovol Engine(China) 20KVA - 150KVA
Yangdong Engine(China) 8KVA - 40KVA
Weichai Engine(China) 8KVA - 150KVA
Shanghai Engine (China) 60KVA-1000KVA
Yuchai Engine (China) 20KVA-1125KVA
Weichai low power gen-sets 120kw diesel engine generator
adopts four-stroke direct injection diesel engine,small size,large power.The generator is STC series
or brushless series of three times harmonic wave self-excitation constant pressure,strong motor-start ability,fine appearance and reliable performance,low prices fine wares can satisfy all users.
Weichai 120kw diesel engine generator 150kva alternator gensets for sale
1. The main parameters of 120kw diesel engine generator | |
The model of the unit: | CLW-120WG |
Power: | 120KW/ 150KVA |
Rated voltage: | 400V/230V |
Rated current: | 216A(adjustable) |
Rated frequency: | 50Hz/60Hz |
The factor of rated power | COS=0.8(lag) |
The regulating rate of steady voltage: | ≤±0.5% |
The regulating rate of instantaneous voltage: | ≤-10%/ +20% |
The time of steady voltage: | ≤1.5sec |
The waving rate of voltage: | ≤8% |
The regulating rate of steady frequency: | ≤3% |
The regulating rate of instantaneous frequency: | ≤10% |
The time of steady frequency: | 3sec |
The waving rate of frequency: | ≤0.25% |
The waste of fuel with full load: | 238g/kw/h |
size(mm): | 2400*800*1500 |
weight: | 1500KG |
2.The main parameters of the 120kw diesel engine generator engine | ||
Brand: | Weichai | |
Model: | R6105IZLD | |
Spare Power: | 135KW | |
Type: | four strokes, waste gas turbine boost,direct spurting type | |
Cooling way: | water cooling | |
With Type: | Inline type | |
Bore *Trip : | 105mm*115 mm | |
Displacement | 3.6L | |
Lubricating oil capacity: | 16L | |
Cylinder: | 6cylinders | |
Rotating speed: | 1500r/min or 1800r/min | |
The regulation of rotating speed: | Electronic speed | |
Starting way: | DC12V starting with electricity |
3.The main parameters of the alternator for the 120kw diesel engine generator | |
Brand: | ComAp,Stamford,Marathon |
Type: | brushless (AVR automatic voltage regulating) |
The connecting way of the phase: | three phases four lines |
Insulation degree: | H degree |
Grading Protection: | IP22/IP23 |
Engine Feature
1.Diesel, heavy-duty, four stroke, water cooled and direct injection fuel system
2.24/12V D.C starter and charger alternator
3.Industrial capacity exhaust silencer supplied loose with flexible section
4.Engine driven cooling fan with protection guard
5.Steel wire braided fuel lines, vent and rain fittings
6.Set mounted acid battery installed with leads and terminals
Alternator Feature
1.Brushless self excited, single bearing, 4 poles
2.Class H insulation
3.IP21/23 protection standard
4.Self-exciting and self-regulating
5.Automatic voltage regulator (AVR)
Our Weichai 120kw diesel engine generator service quality assurance:
1)Before-sale Service:
we provide detailed product technical parameters for equipment choosing and system designing
2)Service quality assurance:
our sale staffs are all experience and professional,who can provide the most proper system design and optimized
equipment for the customers.
3)After sale maintenance service:
We create files for end user and provide them follow-up service,regular return visit and permanent maintenance.
4)Spare parts supply:
We provide all kinds of spare parts and technical support.
5)Main overhaul or maintenance service:
We provide perennial major overhaul and maintenance service.
Our Products display

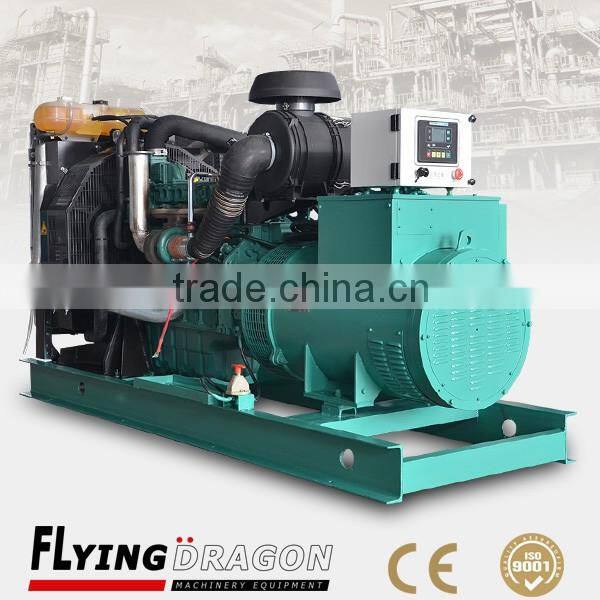

1.Open type

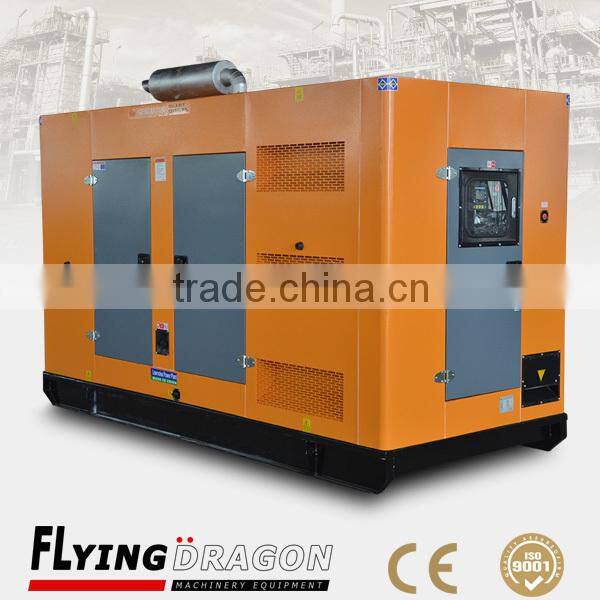

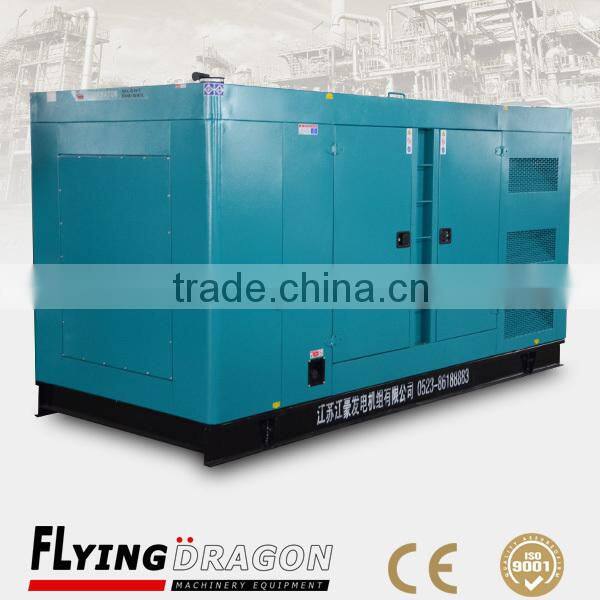

2.Silent type
3.Rainproof type

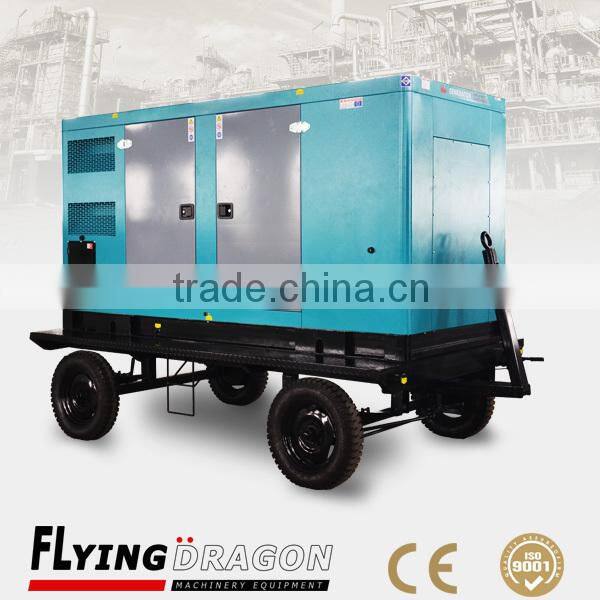

4.Trailer type
1.What's your power range of diesel generators?
Answer: We can offer the range from 5kva~3000kva.
2.What's your delivery time?
Answer: Generally,we can delivery in 7 days after we get the deposit.
3.What's your payment?
Answer: We accept T/T, L/C,and 30% T/T as the deposit,the balance payment should be
paid before shipping.
4.What's your warranty?
Answer: All our products we offer on year warranty or 1000 hours which comes first.
5.What's your MOQ?
Answer:We accept the MOQ is 1 set.
6.What’s the frequency of diesel generators?
Answer: 50/60HZ
7.Do you have single phase or three phase diesel generators?
Answer: Yes,we have single phase and three phase diesel generators.
8.What’s the voltage of your diesel generator?
Answer:Generally,the voltage is 220/380V,230/400V,240/415V or according to your requests.
