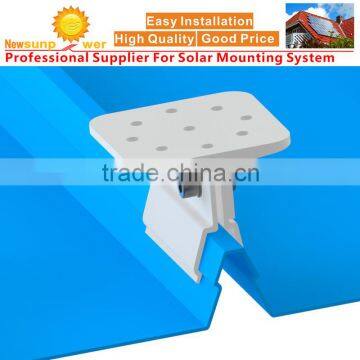

Newsunpower Standing Seam Clip Lock is a standard mounting option in the PV Industry.

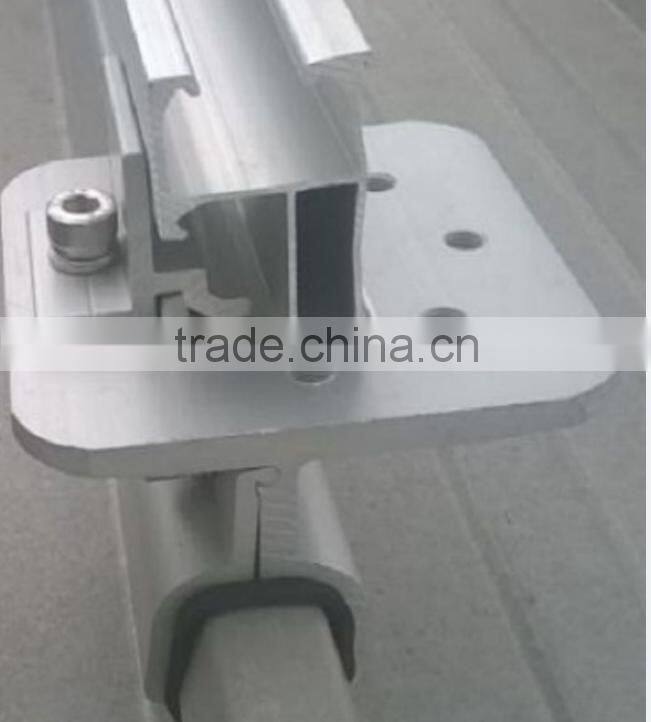

Install on the Standing Seam metal roofs.Made with heavy duty aluminum
built to withstand years of weather and use.Its programmed design are for the residential and commerical
roof systems.It is applicable to install the usual framed moudles to flush with the pitched roof.Newsunpower

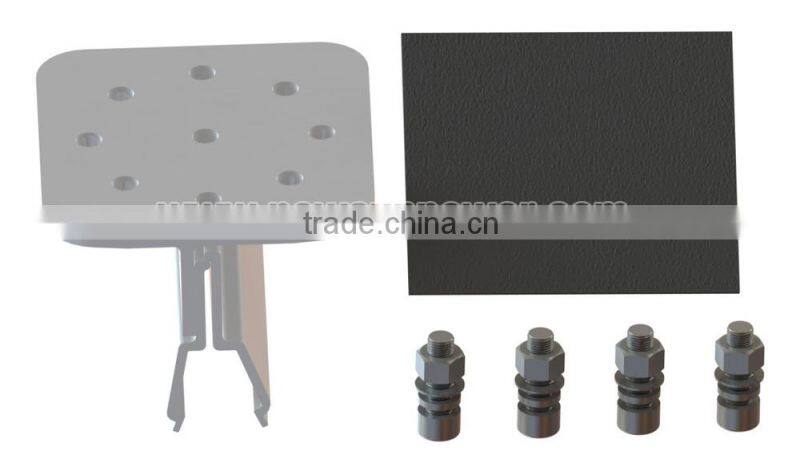

hooks are highly pre-assembled before delivery which makes it easier and more convenient for whole installation.

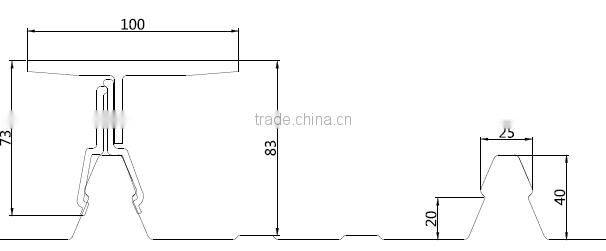

Fittable Roof for NSP-CW-9S Standing Seam Metal Roof Multifunctional clamp hook kit:
Technique Details:
Install site: Pitched Standing Seam Tin/Metal Roof
Tilt Angle: Flushed with the roof (10~60 deg)
Building Height: 20 m
Max Wind Speed: ≤60m/s
Snow Load: ≤1.4KN/m2
Standards: AS/NZS 1170 and other international Standard
Material: High Class Aluminum alloy AL6005-T5& Stainless steel 304
Color: Natural or Customized
Anticorrosive: anodized aluminum
Warranty: Ten years warranty and twenty-five years long lifespan.
Advantages and Benefits:
Broad installation flexibility.
These systems accommodate most commercially available framed solar panels and diverse roof types,
and can be scaled easily from small to large and multi-megawatt installations.
Easy to install.
Tilt-in modules can be put into extruded rails from any spots, can be highly pre-assembled with clamps
and roof hooks to minimize installation time and cost.
Endure extreme weather.
Newsunpower Pitched Roof Racking System is designed to stand up the extreme weather
complied with the AS/NZ 1170 and other international structure load standards by the skilled engineer.
The main support components also have been tested to guarantee its structure and load-carrying capacity.
Assure unmatched durability.
With all structural components comprised of high class stainless steel and anodized aluminum alloy,
it is designed for twenty-five years long lifespan and backed by ten years warranty.
