320kw diesel generator powered by MTU 400kva electric engine, high quality low price
MTU, the abbreviation of Moteren und Turbinen-Union Friedrichshafen GmbH, is the branch of Daimler-Benz Group Companies, and is world's leading manufactures of diesel engine. It has good global reputation with its leading technology, highly reliable products and first-class aftersales service. Its power ranges from 35kw to 9000kw. They are widely used in naval ships, heavy duty trucks, construction machinery and railway locomotive.
Technical Parameters for 320kw diesel generator powered by MTU 400kva electric engine, high quality low price:
1. Genset Model: CL-320C;
2. Output power：320KW400KVA,
3. Rated Voltage: 400/230V;
4. Dimension （L X W X H）mm：3000 *1600 * 1975;
5. Weight：3250Kg;
6. Bore×Stroke(mm): 122*150;
7. The regulating rate of steady voltage: ≤±0.5%;
8. The regulating rate of instantaneous voltage: ≤-10%/ +15%;
9. The time of steady voltage: ≤1.5sec;
10. The waving rate of voltage: ≤0.5%;
11. The regulating rate of steady frequency: ≤3%;
12. The regulating rate of instantaneous frequency: ≤±10%;
Diesel Engine for 320kw diesel generator:
1. Brand: MTU;
2. Model: 8V1600G20F;
3. Cylinder No.:8;
4. Rotating Speed: 1500/1800RPM;
5. Displacement: 14L;
6. Lubricating oil capacity: 46L;
7. Fuel Consumption: 190g/kw.h.
8. Starting way: DC24V starting with electricity;
9. The regulation of rotating speed: Electronic speed.
10.Type:four strokes, waste gas turbine boost,direct spurting type.
Alternator for 320kw diesel generator powered by MTU 400kva electric engine, high quality low price:
Brand ( selectable): Hengsheng/Stamford/Marathon etc.;
Number of Phase: 3;
Connecting Type: Three Phase and Four Lines;
Number of Bearing:1;
Grading Protection: IP21/23;
Altitude: ≤1000m;
Exciter Type: Brushless (AVR automatic voltage regulating);
Insulation Class: H degree.
Control Panel for for 320kw diesel generator powered by MTU 400kva electric engine, high quality low price
The control panel is Quadruplication protection control panel, with the display of frequency table/water temperature/schedule/battery voltmeter. The genset with low oil pressure, high water temperature, over speed emergency, stop and other pre-protection.
Optional Types for Engine
Cummins Engine(USA ) 15KVA - 2000KVA
Deutz Engine(Germany) 20KVA - 150KVA
Perkins Engine(UK) 8KVA - 2000KVA
Volvo Engine(Sweden) 85KVA - 700KVA
Doosan Engine(Korea) 60KVA - 850KVA
Lovol Engine(China) 20KVA - 150KVA
Yangdong Engine(China) 8KVA - 40KVA
Weichai Engine(China) 8KVA - 150KVA
Shanghai Engine (China) 60KVA-1000KVA
Yuchai Engine (China) 20KVA-1125KVA
Optional types for Diesel generator set: Soundproof type, Open type.
Features for Each Component
Engine Feature
1.Diesel, heavy-duty, four stroke, water cooled and direct injection fuel system
2.24/12V D.C starter and charger alternator
3.Industrial capacity exhaust silencer supplied loose with flexible section
4.Engine driven cooling fan with protection guard
5.Steel wire braided fuel lines, vent and rain fittings
6.Set mounted acid battery installed with leads and terminals
7. Noise level: 65dB to 75DB from 7meter away
Alternator Feature
1.Brushless self excited, single bearing, 4 poles
2.Class H insulation
3.IP21/23 protection standard
4.Self-exciting and self-regulating
5.Automatic voltage regulator (AVR)
6. Phase: 3-phase, 4-wire
7. Connection: Y or other type connection
8. Rated speed: 1,500rpm / 1,800rpm
9. Excitation: harmonic excitation or phase compound or brushless
10. Voltage regulation: automatic
11. 1.0% voltage regulation (max.) in static conditions
12.Protection class: IP 22 or IP23
13. Connect with engine:Direct coupled with flywheel
Control System
1.manual / auto start and protection module
2.Equipped with ComAp,Harsen,Smartgen famous control systems.
3.New integrated controllers in manual and remote start application.
4.Featuring full gen-set monitoring and protection.
5.Powerful graphic display, Icons, symbols and bar graphs
6. High functionality set new standards in gen-set control.
7.Special low temperature version is also available.
8. With AMF control panel or with ATS (automatic transfer system)
9. With EPA certification

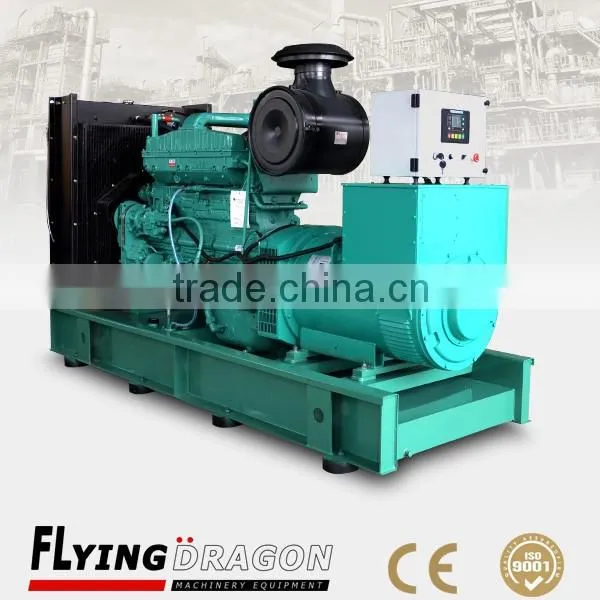

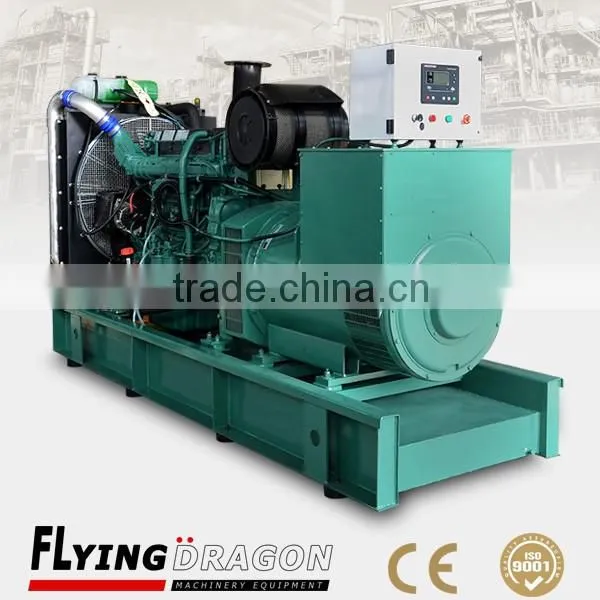

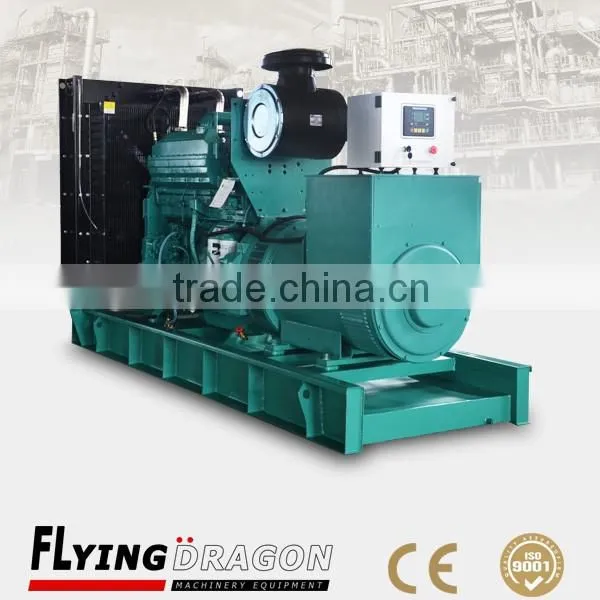

Open Type 400KW diesel genreator with Cummins Engine

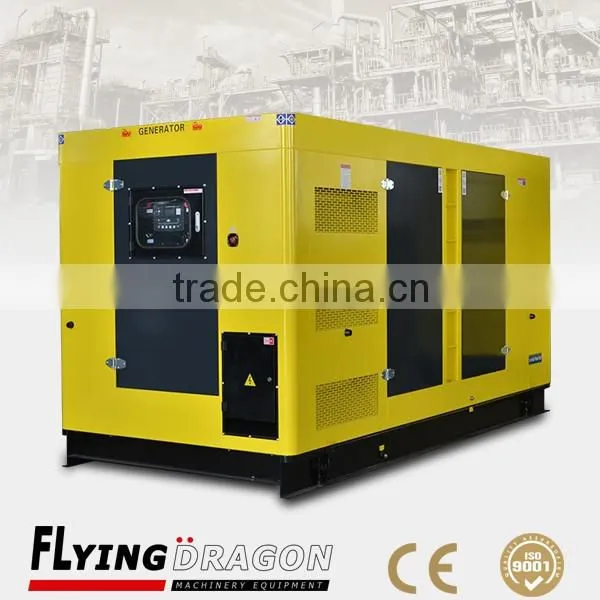

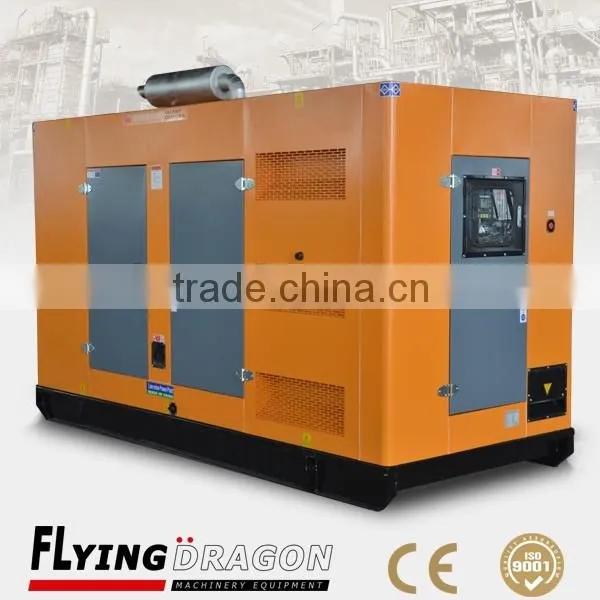

Silent Type 300KW diesel genreator with Cummins Engine
Rainproof type 100kw diesel genreator with Cummins Engine
Trailer type 150kw diesel genreator with Cummins Engine

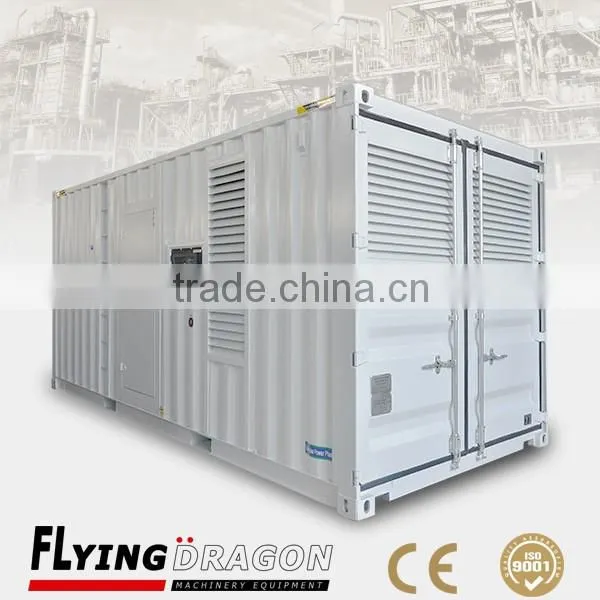

Container type 800kw diesel genreator with Cummins Engine
Each category generator of our company can share 12 months or 1000 woking hours maintenance. We are responsible for all malfunctions arised from sructural defect of gen-set itself. Wearing parts, daily used consumable parts and destroyed parts by wrong operation or maintenance ignorance are not in the range of quality gurantee.

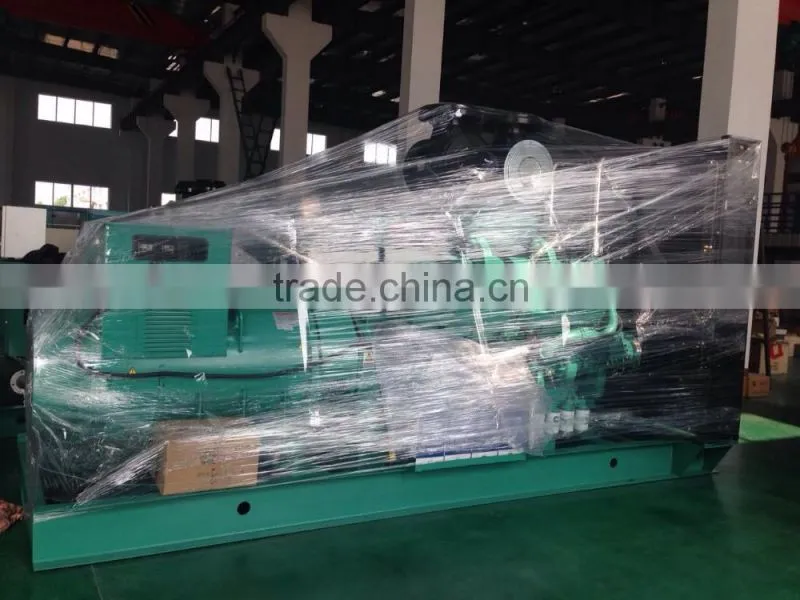

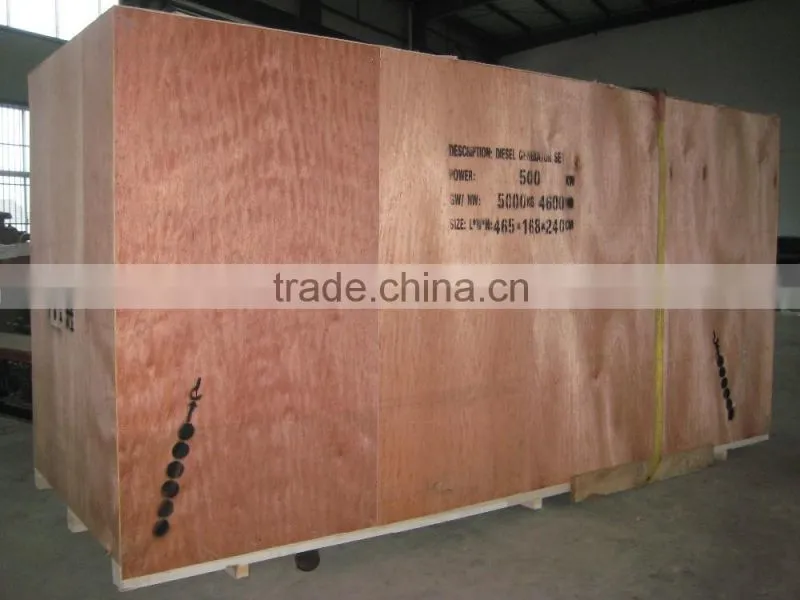

Packing Details : lastic film wrap up the generator, load into Plywood case, 1 set/case;
Delivery Details : 7 working days after receiving the deposit.
