Our Diesel Generator Production Range is as follows:
* Engine (motor) for Choice
Cummins Engine(USA ) 15KVA - 2000KVA
Deutz Engine(Germany) 20KVA - 150KVA
Perkins Engine(UK) 8KVA - 2000KVA
Volvo Engine(Sweden) 85KVA - 700KVA
Doosan Engine(Korea) 60KVA - 850KVA
Lovol Engine(China) 20KVA - 150KVA
Yangdong Engine(China) 8KVA - 40KVA
Weichai Engine(China) 8KVA - 150KVA
Shanghai Engine (China) 60KVA-1000KVA
Yuchai Engine (China) 20KVA-1125KVA

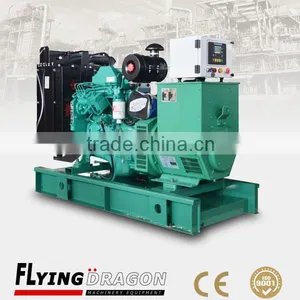

With Cummins engine Cummins 80kva generator
is adopted the B,N,K series engine(sino-us JVC),and widely used in army,engineering,mining industry,more
reliable,economic.As the top one of JVC in China diesel gen-sets industry,Donfeng Cummins Engine Co,Ltd
(for B,C,L series)&Chongqing Cummins Engine Co.,Ltd(for M.N.K series) are its branches.
Powered by Cummins 80kva generator price, electric generator,80kva power generator
Cummins diesel generator Perkins diesel generator Volvo diesel generator
Container diesel generator Silent diesel generator Trailer diesel generator
The main parameters of Cummins 80kva generator | |
The model of the unit: |
CLK-64CG |
Power: |
64KW/80KVA |
Rated voltage: |
220V/380V(adjustable) |
Rated current: |
115.2A |
Rated frequency: |
50Hz/60Hz |
The factor of rated power |
COS=0.8(lag) |
The regulating rate of steady voltage: |
≤±0.5% |
The regulating rate of instantaneous voltage: |
≤-10%/ +15% |
The time of steady voltage: |
≤1.5sec |
The waving rate of voltage: |
≤0.5% |
The regulating rate of steady frequency: |
≤3% |
The regulating rate of instantaneous frequency: |
≤±5% |
The time of steady frequency: |
3sec |
The waving rate of frequency: |
≤0.25% |
The waste of fuel with full load: |
210g/kw/h |
size(mm): |
2250*800*1300 |
weight: |
1200KGS |
The main parameters of the Cummins 80kva generator engine | ||
Brand: |
Cummins |
|
Model: |
6BT5.9-G2 |
|
Type: |
four strokes, waste gas turbine boost,direct spurting type |
|
Cooling way: |
water cooling |
|
With Type: |
L type |
|
Bore *Trip : |
102mm*120mm |
|
Displacement |
5.9L |
|
Lubricating oil capacity: |
16L |
|
Cylinder: |
6cylinders |
|
Rotating speed: |
1500r/min or 1800r/min |
|
The regulation of rotating speed: |
Electronic speed |
|
Starting way: |
DC12V starting with electricity |
|
The main parameters of the alternator for the Cummins 80kva generator | |
Brand: |
ComAp,Stamford,Marathon,Hengsheng |
Type: |
brushless (AVR automatic voltage regulating) |
The connecting way of the phase: |
three phases four lines |
Insulation degree: |
H degree |
Grading Protection: |
IP21/IP23 |
Engine Feature for Cummins 80kva generator
1.Diesel, heavy-duty, four stroke, water cooled and direct injection fuel system
2.24/12V D.C starter and charger alternator
3.Industrial capacity exhaust silencer supplied loose with flexible section
4.Engine driven cooling fan with protection guard
5.Steel wire braided fuel lines, vent and rain fittings
6.Set mounted acid battery installed with leads and terminals
Alternator Feature for Cummins 80kva generator
1.Brushless self excited, single bearing, 4 poles
2.Class H insulation
3.IP21/23 protection standard
4.Self-exciting and self-regulating
5.Automatic voltage regulator(AVR)
Our with Cummins 6BT5.9-G2 engine Cummins 80kva generator service quality
assurance:
1)Before-sale Service:
we provide detailed product technical parameters for equipment choosing and system designing
2)Service quality assurance:
our sale staffs are all experience and professional,who can provide the most proper system design and
optimized equipment for the customers.
3)After sale maintenance service:
We create files for end user and provide them follow-up service,regular return visit and permanent
maintenance.
4)Spare parts supply:
We provide all kinds of spare parts and technical support.
5)Main overhaul or maintenance service:
We provide perennial major overhaul and maintenance service.
Our Products display
1.Open type for Cummins generator 50kva
2.Silent type for Cummins generator 300kva
3.Rainproof type for Cummins generator 300kva
4.Trailer type for Cummins generator 200kva
5.Container type for Cummins generaor 1mw
1.What's your power range of diesel generators?
Answer: We can offer the range from 5kva~3000kva.
2.What's your delivery time?
Answer: Generally,we can delivery in 7 days after we get the deposit.
3.What's your payment?
Answer: We accept T/T, L/C,and 30% T/T as the deposit,the balance payment should be
paid before shipping.
4.What's your warranty?
Answer: All our products we offer on year warranty or 1000 hours which comes first.
5.What's your MOQ?
Answer:We accept the MOQ is 1 set.
6.What’s the frequency of diesel generators?
Answer: 50/60HZ
7.Do you have single phase or three phase diesel generators?
Answer: Yes,we have single phase and three phase diesel generators.
8.What’s the voltage of your diesel generator?
Answer:Generally,the voltage is 220/380V,230/400V,240/415V or according to your requests.
