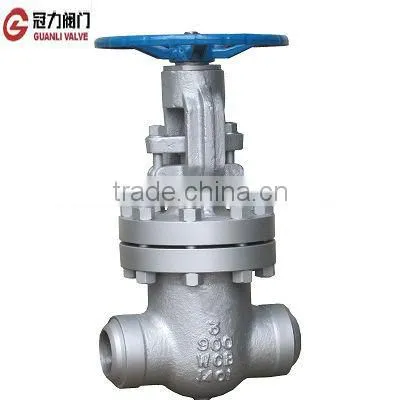

Welded Gate Valve

Welded Gate Valve thumbnail-1
Welded Gate Valve photo-1
US$ 25 - 2,500 MOQ: 1 Set
Key Specifications
Get Latest Price
Standard or Nonstandard:
Standard
Structure:
Gate
Pressure:
High Pressure
Contact Supplier Request Quote Chat Now
Zhejiang Guanli Valve Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Standard or Nonstandard Standard
Structure Gate
Pressure High Pressure
Power Manual
Material Casting
Temperature of Media Medium Temperature
Media Oil
Port Size 2"-48"
Place of Origin Zhejiang, China
Model Number Z60H
Brand Name GL valve
Application Other, Industry

Welded gate valve



Product Description



1.Pressure:class 150-class 1500

2.Size:2″-48″

3.Material:WCB

4.Operation type:Handwheel



Characteristics of Welded Gate Valve

1. Design and manufacture of product according to ANSI B16.34 and API600 and API 6D.

2. Compact structure, small bulk, perfect rigidity, safety and reliable.
3. Blow down part (disc) utilize flexible structure, can automatically compensate distortion of body due to abnormal burden or temperature,so seal reliable and prevent wedge disc being blocked.
4. Manual valve with size over or equal to NPS 10″, class 150 pounds and size over or equal to NPS6″, class 600~2500 pound equipwith roller bearing to operate easily.
5. Material of main body. Material of trims, packing, washer, material of fastener can logically combine according to customers requirement or actual work status.
6. Exchangeable inside thread seat is used for NPS ≥0" gate valve, random combine the material of surface of blow down part to meet the requirement of work status, prolong service life. STD





Desing And manufcture  Face to face/End to end  Flange Dimension  Butt welding dimension  Pressure and Temperature  lnspection and test
APl 600 ASME B16.10 ASME B16.5 ASTM B16.25 ASME B16.34 APl 598





Pressure test

Nominal Pressure  Shell Test  Water Seal Test  Air Seal Test
MPa Lbf/in2 MPa Lbf/in2 MDa Lbf/in2
150 3.1 450 2.2 315 0.5-0.7 60-100
300 7.8 1125 5.6 815
600 15.3 2225 11.2 1630
900 23.1 3350 16.8 2440
1500 38.4 5575 28.1 4080
2500 64.6 9367 47.4 6873





Main part material

Body ASTM A216 WCB ASTM A351 CF8
Wedge disc WCB CF8 CF8M Monel
Stem  F6a F304 F316 Monel F304
Wedge disc Sealing face  13Cr 13Cr STL 304 STL 316 STL Monel 304 304 STL
Seat ring sealing face  13Cr  STL STL 304 STL 316 STL Morel 304 STL STL







Body  ASTM A351 CF3 ASTM A351 CF8M ASTM A351 CF8
Wedge disc
Stem F304L F316 F316
Wedge disc Sealing face 304L 304L STL 316 316 STL 316L 316L STL
Seat ring sealing face  304L STL STL 316 316L STL STL







Class DN
(mm)		 NPS
(in)		 L d H W H1 W1 Gear device
RF RTJ BW
150(PN20) 50 2 178 191 216 51 400 200 - - -
65 2 1,2 191 203 241 64 435 200 - - -
80 3 203 216 283 76 515 250 - - -
100 4 229 241 305 102 595 280 - - -
125 5 254 267 381 127 725 280 -   -
150 6 267 279 403 152 780 300 820 310 -
200 8 292 305 419 203 975 350 1020 310 -
250 10 330 343 457 254 1150 400 1200 310 -
300 12 356 368 502 305 1380 450 1430 310 -
350 14 381 394 572 337 1545 500 1580 460 BA-0
400 16 406 419 610 387 1733 500 1780 460 BA-1
450 18 432 445 660 438 1915 500 1990 460 BA-1
500 20 457 470 711 489 2122 600 2220 460 BA-2
600 24 508 521 813 591 2520 600 2600 460 BA-2
650 26 559 - 864 633 - - 2800 600 BA-2
700 28 610 - 914 684 - - 3050 600 BA-2
300(N50) 50 2 216 232 216 51 420 200 - - -
65 2 1,2 241 257 241 64 446 200 - - -
80 3 283 298 283 76 537 250 - - -
100 4 305 321 305 102 619 280 650 310 -
125 5 381 397 381 127 722 300 750 310 -
150 6 403 419 403 152 806 350 835 310 -
200 8 419 435 419 203 1000 400 1030 310 -
250 10 457 473 457 254 1240 450 1280 310 -
300 12 502 518 502 305 1425 500 1460 460 -
350 14 762 778 762 337 1585 600 1620 460 BA-1
400 16 838 854 838 387 1790 500 1830 460 BA-1
450 18 914 930 914 438 1960 650 2000 460 BA-2
500 20 991 1010 991 489 2158 750 2220 460 BA-2
600 24 1143 1165 1143 591 2576 900 2620 460 BA-2





Packaging & Shipping

 Welded gate valve



Certifications

 Welded gate valve





FAQ

Note:

1.ALL of valve part materials comply with ASTM standard.
2.Above material is our normal one.If client has special requirement for it,we choose material as per detailed site condition.
3.More information,please inquiry.
