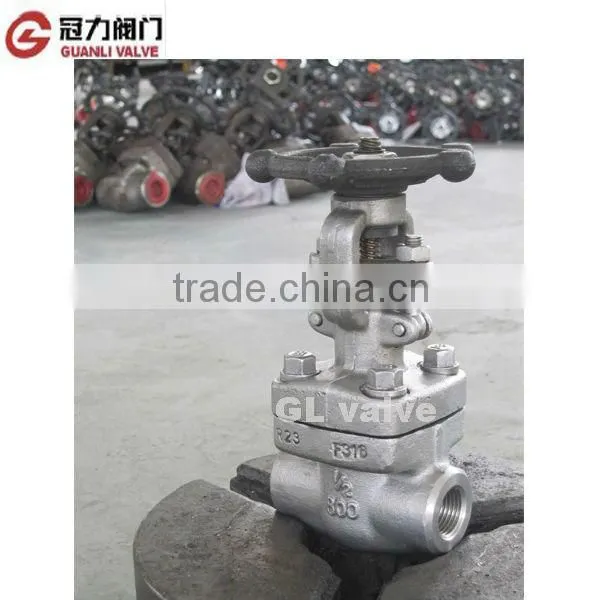

Forged Gate Valve
1.Pressure:class 150-class 1500
2.Size:1/2"-2"
3.Material:ASTM A105
4.Operation type:Handwheel
MANUFACTURING STANDARDS | |
| DESIGN | BS: 5352 / API 602 |
| ENDS | ANSI B 2.1 / IS 554 / BS 21 |
| TESTING | BS: 5146 / API 598 |
CLASS |
TEST PRESSURE IN Kg / cm2 |
||
HYDROSTATIC |
AIR |
||
BODY |
SEAT/BACK SEAT |
SEAT |
|
1500 |
211 |
141 |
6 |
1.Body:ASTM A105
2.Seat ring:S.S.AISI 410
3.Disc: S.S.AISI 410
4.Spindle:S.S.AISI 410
5.Gasket:Spiral wound,S.S.filled with Asb.
6.Bonnet bolt:ASTM A105
7.Bonnet bolt:ASTM A193 Gr.B7
8.Screw:Carbon steel
9.Washer:Carbon steel
10.Gland packing:Grafoil
11.Gland: S.S.AISI 410
12.Gland plate: Carbon steel forged
13.Eye bolt& nut:Carbon steel
14.Yoke nut: NI – Resists
15. Hand Wheel: Malleable Iron / Cast Iron
16.H.W Washer: Carbon Steel
17.H.Wheel Nut: Carbon Steel
Enquiry Notice
The following details should be dated in your enquiry:
1) Size
2) Class
3) Body Material
4) Trim Material (Internal parts)
5) Connection type
6) Operated type
7) Sealing face
8) Tempreture
9) Medium
10)Design standard; Connection Standard
