API Check Valve

API Check Valve thumbnail-1
API Check Valve thumbnail-2
API Check Valve thumbnail-3
API Check Valve thumbnail-4
API Check Valve photo-1
API Check Valve photo-2
API Check Valve photo-3
API Check Valve photo-4
US$ 25 - 3,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Standard or Nonstandard:
Standard
Structure:
Check
Pressure:
Medium Pressure
Contact Supplier Request Quote Chat Now
Zhejiang Guanli Valve Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Ningbo/Shanghai
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Standard or Nonstandard Standard
Structure Check
Pressure Medium Pressure
Power Manual
Material Casting
Temperature of Media Normal Temperature
Media Gas
Port Size 2"-48"
Place of Origin Zhejiang, China
Model Number H44
Brand Name GL Valve
Application Other, Industry

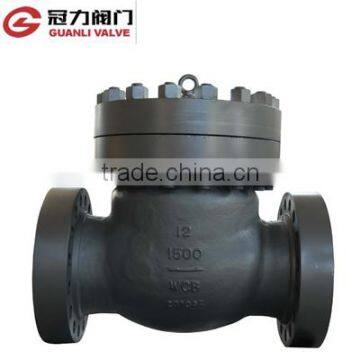

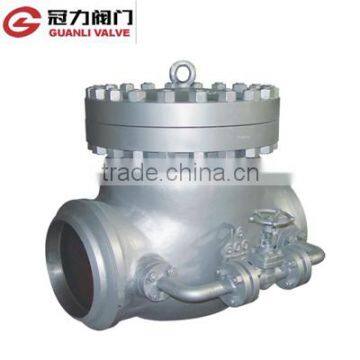

API Check Valve



Product Description





1.Size:2"-48"
2.Pressure:150LB-2500LB
3.Material:WCB,WCC,LCB,LCC,CF8 ect.
4.Operated type:handwheel,bevel gear. electric etc.

5.Medium:Water,steam,oil etc.

6.Temp.:-25°—425°.



Adopt standard

1.Design standard: API6D,JIS,B2074-2084

2.Face to Face:ANSI B16.10,JIS B2002

3.Tubing flange:ANSI B16.5,JIS B2212-2214

4.Butt-weld ends sizes: ANSI B16.25

5.Check and test:API 6D/API598,JIS,B2003



Standards compliance

CLASS 150~1500 SWING CHECK VALVE



Dimensions

Class 150

Size

inch

2

2002-1-2

3

4

5

6

8

10

12

14

16

18

20

24

L,L1-RF.BW

mm

203

216

214

292

330

356

495

622

699

787

864

978

978

1295

L2-RTJ

mm

216

229

254

305

343

368

508

635

717

800

876

991

991

1308

H

mm

155

190

200

225

245

260

350

390

410

435

530

570

625

675

WT.(approx)

Kg

16

25

34

46

75

89

120

220

337

471

575

788

916

1275



Dimensions

Class 300

Size

inch

2

2002-1-2

3

4

5

6

8

10

12

14

16

18

20

24

L,L1-RF.BW

mm

267

292

318

355

400

440

533

622

711

838

863

977

1016

1346

L2-RTJ

mm

283

308

333

371

416

460

549

638

727

854

879

994

1036

1368

H

mm

180

200

225

240

275

310

370

410

440

500

545

605

675

785

WT.(approx)

Kg

26

32

53

73

110

157

234

384

450

650

800

970

1350

2210



Dimensions

Class 600

Size

inch

2

2002-1-2

3

4

5

6

8

10

12

14

16

18

20

L,L1-RF.BW

mm

292

330

356

432

508

559

660

787

838

889

991

1092

1194

L2-RTJ

mm

295

333

359

435

511

562

664

791

841

892

994

1095

1200

H

mm

190

215

250

260

310

350

420

490

525

580

630

690

810

WT.(approx)

Kg

33

49

62

95

120

195

360

465

725

875

1075

1475

1900





Note:

1.ALL of valve part materials comply with ASTM standard.

2.Above material is our normal one.If client has special requirement for it,we choose material as per detailed site condition.

3.More information,please inquiry.



Packaging & Shipping

 API Check Valve



Company Information

 API Check Valve

Certifications

 API Check Valve



FAQ

Enquiry Notice

The following details should be dated in your enquiry:

1) Size

2) Class

3) Body Material

4) Trim Material (Internal parts)

5) Connection type

6) Operated type

7) Sealing face

8) Tempreture

9) Medium

10)Design standard; Connection Standard
