hydraulic punching machine pressure 90 ton

FOB Price

USD $6,000 - $9,000 / Set

1 Set(Min.Order)

Supply Ability 100 Set / Sets per Month
Port Shanghai port
Payment TermsT/T

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Condition	New	CNC or Not	CNC
Power Source	Hydraulic	Place of Origin	Jiangsu, China
Brand Name	HT-Metalforming	Model Number	H-200D
Voltage	380V/220V/440/	Power(W)	11KW
Weight	5200KG	Dimension(LWH)	19750X1040X2300
Certification	CE	Warranty	14months after the date of B/L
After-sales Service Provided	Engineers available to service machinery overseas

Product Description

Specifications

This machine is an ideal equipment for cutting square bar,angle,round bar,Channel and joist ,as well as puching and notching .

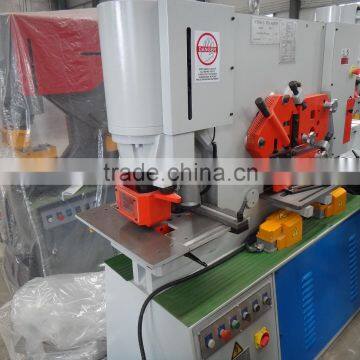

Hydraulic iron worker

puching machine

Product Description

This machine adopts hydraulic drving and its the latest iron worker in our country ,Various metal plate,square bar,round bar,angle channel and joist can be cut,punched and notched on the machine,It is also equipped with a stop device for cutting .

model	Q35Y-12	Q35Y-16	Q35Y-20	Q35Y-25	Q35Y-30
Pressure(Ton)	40	66	90	120	165
Max.ctting thickness(mm)	12	16	20	25	30
Plate strength (N/mm2)	≤450	≤450	≤450	≤450	≤450
Cutting angle	7°	7°	8°	8°	8°
Shearing size of one stroke(mm)	12×220 6×360	16×250 8×400	20×330 10×480	25×330 16×600	30×355 6×360
Ram sroke (mm)	80	80	80	80	80
Number of srokes(cpm)	8	8	8	6	15
throat depth (mm)	250	300	355	400	600
Max.punching thickness	12	16	20	25	26
Punching diametre (mm)	20	25	30	35	38
Max. Punching diametre	25	32	40	50	50
punching thicknee (mm)	8	10	12	15	20
Power of main motor(KW)	3	4	5.5	7.5	11
Overall dimensions L×W×H(MM)	1480×760×1620	1640×780×1770	1880×780×1900	2355×960×2090	2680×1040×2300
Weight of machine (Kg)	1400	1800	2400	4670	6450

A special order for the ioist and channel moalds needed.

Profile	Round Bar	Square Bar	Equal Angle		joist	Channel
Profile	Round Bar	Square Bar	90°or 45°shearing	90°or 45°shearing	joist	Channel

Q35Y-12	30	25×25	110×110×8 40×40×5	110×110×10 40×40×5	110×65×4	100×46×4
Q35Y-16	45	40×40	125×125×12 50×50×6	120×120×12 50×50×6	126×74×5	126×53×5.5
Q35Y-20	50	50×50	140×140×12 50×50×6	140×140×12 50×50×6	160×86×6	160×60×6.5
Q35Y-25	60	50×50	160×160×14 60×60×6	160×160×14 60×60×6	200×102×9	200×75×9
Q35Y-30	65	55×55	180×180×16 60×60×6	180×180×16 60×60×6	280×124×10.5	280×86×11.5
