WSH Vertical Bead Mill for High Viscosity Materials

WSH Vertical Bead Mill for High Viscosity Materials thumbnail-1
WSH Vertical Bead Mill for High Viscosity Materials photo-1
US$ 23,000 - 35,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Type:
Grinder
Product Type:
Other, high viscosity, such as offset oil ink
Contact Supplier Request Quote Chat Now
Changzhou Longxin Machinery Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Type Grinder
Product Type Other, high viscosity, such as offset oil ink
Place of Origin Jiangsu, China
Brand Name Hua Bao
Model Number WSH-14, WSH-30
Voltage 110V 220V 380V
Power(W) 30-55KW
Dimension(L*W*H) 1370*800*1900
Weight 2800
Certification CE ISO9001:2000
Warranty 1 year
After-sales Service Provided Engineers available to service machinery overseas

Specifications

1.vertical bead mill for high viscosity materials
2.Warranty:1 year
3.CE&ISO&SGS
4.PLC control
5:Mechanical seal:Burgmann

WSH vertical bead mill for high viscosity materials



1.Introduction

This machine is designed specially for predispersion and fine dispersion of high viscosity material (offset oil ink).
It can beused singly and also together with three rollers grinder through connection as well as full automatic production line. It is an ideal equipment for producing offset oil ink and high viscosity material.

Features

  • PLC is used for control, analogous drawing and touch screen are available (optional).
  • The pressure in the milling chamber is auto-controlled, to choose the optimum milling result.
  • The mechanical sealing and bearing connected by open mode to solve the problem of clash between main s haft and coupler in the high-viscosity state, so the operation of equipment can be much reliable and safety.
  • The double-spiral internal cooling channel can disperse the heat during the operation in high-viscosity.
  • The brand "BURGMANN" of German is adopted for mechanical sealing "NSK" of Japan for bearing, the dynamic separator made of powder metallurgy.
  • The material can reach at the ideal fineness only by once milling, matched with three roll machine, the production can be finished in one time, to increase the efficiency extremely.

2.Parameters of bead mill

Model WSH-14 WSH-30
Capacity (L)
15
30
Adjustable sandbox volume (L)
4
8
Grinding media
2.0~2.2Zirconia ball / 2.0Steel ball
Main motor power (KW)
30~37
45~55
Power of the material pump timing motor (KW)
2.2
2.2
Cooling motor power (KW)
0.37
0.37
Output (kg/h)
80~150
100~180
Distance from discharg hole to ground (mm)
1200
1400
Weight (kg)
2700
3000
Overall dimension LxWxH (mm)
1370x722x1830
1600x860x2260
Packing dimension LxWxH (mm)
1600x1000x1900
1800x1000x2400

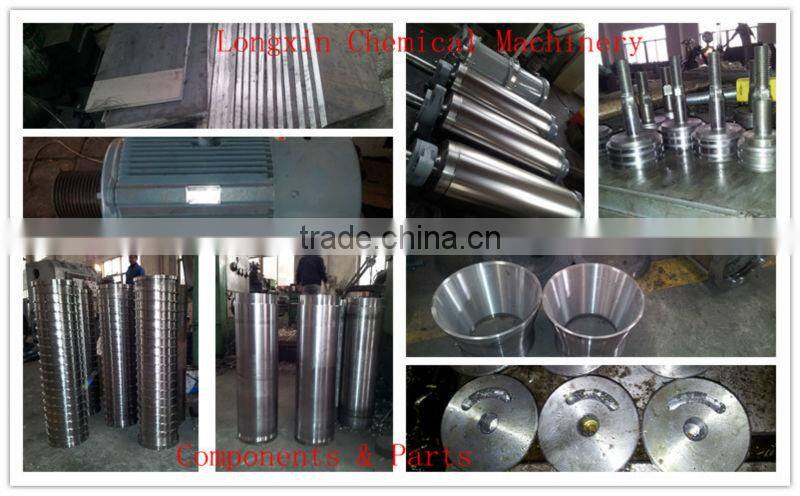

WSH vertical bead mill for high viscosity materialsWSH vertical bead mill for high viscosity materials
