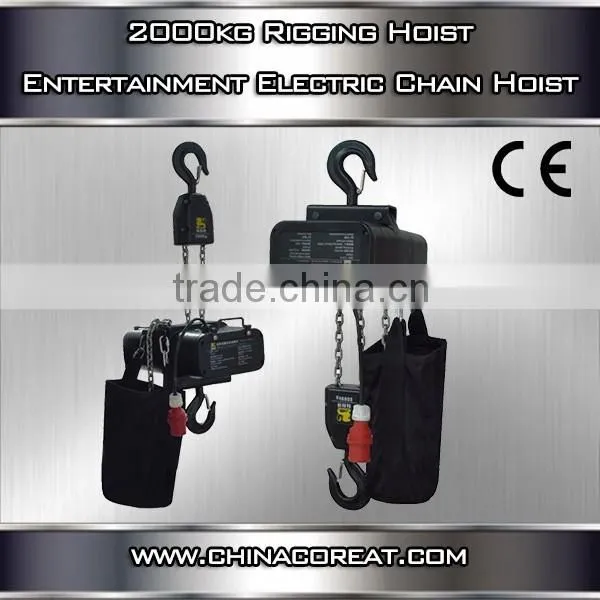

Entertainment Electric chain hoist
Stage truss motor
500kg-200kg electric chain hoist.
| Model | Rated loading | Lifting speed | Power supply | Motor power | Chain specification | Chain length | N.W. | G.W. |
| (kg) | (m/min) | (kw) | (mm) | (m) | (kg) | (kg) | ||
| C05-4 | 500 | 4 | 220V/380V 50HZ | 0.38 | 7×22 | 25 | 57 | 75 |
| C10-4 | 1000 | 4 | 220V/380V 50HZ | 0.75 | 7×22 | 25 | 57.5 | 76 |
| C20-2 | 2000 | 2 | 220V/380V 50HZ | 0.75 | 7×22 | 25X2 | 86.5 | 105 |
| Specifications unit :mm | ||||||||
| Model | C5-4 | C10-4 | C20-2 |
|
||||
| A1 | 400 | 400 | 460 | |||||
| A2 | 250 | 250 | 250 | |||||
| A3 | 150 | 150 | 150 | |||||
| A4 | 45 | 45 | 80 | |||||
| B1 | 155 | 155 | 155 | |||||
| B2 | 170 | 170 | 210 | |||||
| B3 | 350 | 350 | 400 | |||||
| B4 | 135 | 135 | 170 | |||||
| B5 | 550 | 550 | 720 | |||||
| C | 26 | 26 | 35 | |||||
| D1 | 230 | 230 | 230 | |||||
| D2 | 160 | 160 | 160 | |||||
Heat Treated Helical Gears
COREAT electric chain hoist gears precision machined for long life. Oil bath lubrication results in a quiet,smooth,cool operation.
High Quality Motor
H4 classification, Class F insulation, cooling fins and standard thermal motor protection. It can work continuously for 30 minutes per hour,and it has 3:1 safety factor means the hoist is stable and accurate even when fully loaded.

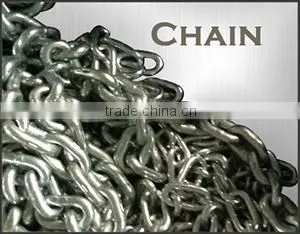

Corrosion Resistant Load Chain
G80 chain conform to DIN5687/DIN5688 Germany standard,8:1 safety factor. Superb durability and strength.
Compact Aluminum alloy housing
Cast aluminum body is lightweight and easy to carry.Suitable for both indoor and outdoor applications,including harsh environments.
Long Life Brake System
Sound design,simple mechanism and total safety. It has a safety factor of about 4 times greater than the motor capacity. Protects hoist from damage and prevents overwinding.
Notched Hook and Latch System
Provides positive closing and improves resistance against lateral forces.
Every hoist are tested before delivery.
Cetificate

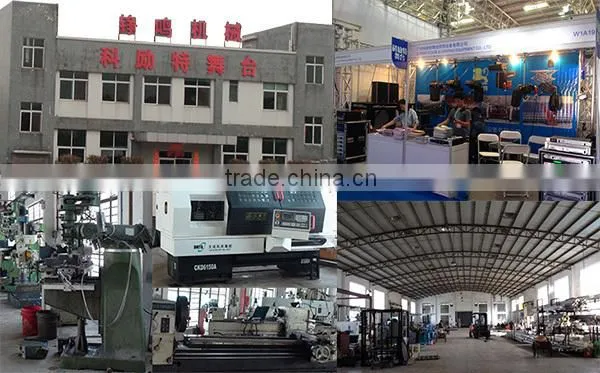

Guangzhou Coreat Stage Equipmengt Co., Ltd is a professional truss, stage equipment and accessories manufacturer with 6 years experince. Coreat truss is welded by Aluminum 6082-T6 which is international standard top-quality flight material and the workmanship can reach international standard welding .Has passed load test and can make sure the quality and safety load in hanging.It is light ,rotproofness,durability and connector is easy to set up and dismantle. Our factory mainly produces diversified items and sizes of aluminum alloy truss, display truss, large-scale truss, layer/ scaffolding, space truss structure, manual lighting stand, line array speaker truss, stage truss, folding stage, stage lift hoist. We also offer truss OEM&ODM service.
At present, our product C10-4/C20-2 Electric Chain Hoist with international standards has independent researched and developed by our company. The unique design of electric chain hoist is the original technology development and production of our company. And it has been certificated CE by European Community and obtained appearance design and technology patent, there is a great difference with the advantages of domestic production.
1. Q: What is our factory product range?
A: We are specialize in entertainment electric chain hoist, stage truss,stage machinery.
2. Q: How to order?
A: Please send us your order by Email or Fax, and you can also ask us to send you Performa Invoice for your order.
We need to know the following information for your order:
a. Product information: Quantity, Specification (capacity, lifting height, voltage, and packing requirement).
b. Delivery time required.
c. Shipping information: Company name, Address, Phone number, Destination seaport/airport.
d. Forwarder's contact details if there is any in China.
4. Q: What are the trade terms we can be accepted
A: EXW, FOB, CFR, CIF.
5. Q: What are the payment terms for sample cost and order amount?
A: We accept the payment sent by West Union,T/T.
6. Q:Are you a factory? Where is it?
A:Yes, we are a professional manufacturer on this line for lifting equipment since 1999. Our factory is located in HuaiGe Industrial Park, Baoding City, Hebei Province, China. Welcome to visit our factory at any time!
7. Q: What advantages we have?
A: Rich experience: We have more than 6 years experience in this industry. That means, we can preview the problems for the orders and products. Therefore, it will make sure to reduce the risk of bad situation to happen.
Point to point service: There is one sale representative who will serve you from inquiry to products shipped out. During the process, you just need to discuss with her for all problems and the way saves much time.
Strict QC: For each order, strict inspection will be carried out by the QC department before shipping. The bad quality will be avoided.
