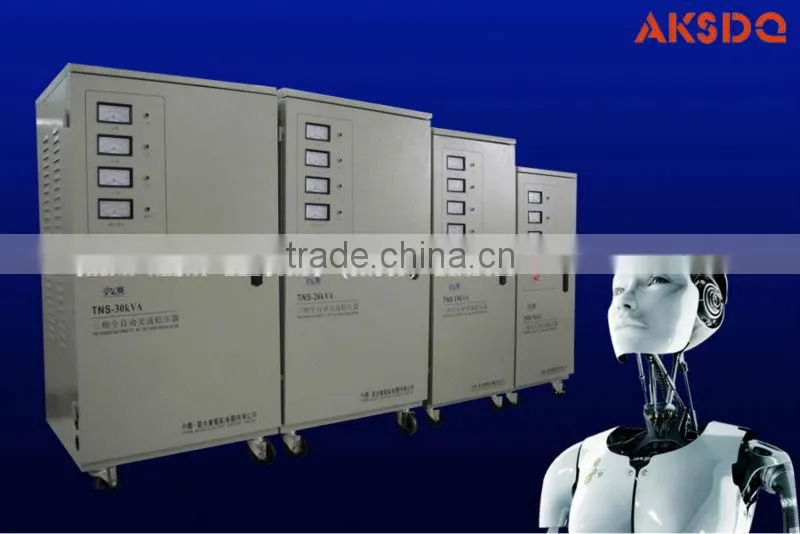

Help CenterTNS 0.5KVA~100KVA Three Phase Servo Motor Automatic Voltage Regulator AVR Stabilizer
Related Products
-
SVC-500VA~30KVA Single-phase Regulator/stabilizerUS$ 38.6 - 125MOQ: 1 Set -
SVC Automatic High Precision AC Electrical Voltage Stabilizer/regulatorUS$ 12.5 - 52.8MOQ: 1 Piece
-
New Type SVC 30kva Single Phase Servo Motor Automatic Voltage Stabilizer/regulatorUS$ 186.45 - 286.76MOQ: 1 Set
-
AVR/SVR Digital Single Phase Votage Stabilizer/RegulatorUS$ 8.5 - 19.8MOQ: 1 Set
-
2015 Hot SBW Three Phase Automatic Voltage Stabilizer 3 Phase 380v Aervo Motor Power StabilizerUS$ 748 - 1,100MOQ: 1 Piece

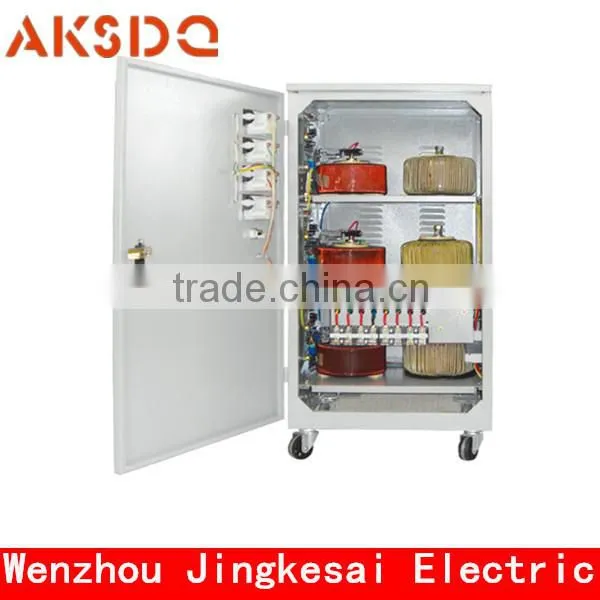

SVC automatic voltage stabilizer consists of contact voltage regulator, sampling control circuit and
servomotor as well. It has excellent features, such as small waveform distortion, high efficiency,
high power factor, free from the effect or frequency variation of supply. It can be widely used in most
situations where the voltage stabilization is required.
Specifications
1.SVC fully AC automatic voltage regulator
2.Servo motor type
3.Over voltage protection
4.Do the manostat for your request
SPECIFICATION &PERFORMANCE
| Input Voltage | Phase voltage 160~250V, line voltage 277V~430V |
| Output Voltage | Phase voltage 220V, line voltage 380V |
| Regulation Accuracy | ±3% |
| Frequency | 50Hz/60Hz |
| Adjust Time | < 1s(when input voltage changes 10% ) |
| Efficiency | > 95% |
| Relative Humidity | ≤95% |
| Ambient Temperature | -5°C ~+ 40°C |
| Waveform Distortion | No Additional Waveform Distortion |
| Load Power Factor | 0.8 |
| Electric Intensity | 1500V/min |
| Insulation Resistance | ≥2MΩ |
FEATURE : |
Automatic voltage regulation |
|
TV-SET / HI-FI / DVD / FAX / Copy Machine / Printer/ Scanner /Air Conditioner/Computer /Test Equipment/Fridge /Lighting/ Equipment ETC |
Three-phase four wire | ||||
| ||||
Spec.(KVA) |
Products size D×W×H(CM) |
PackageD×W×H(CM) |
Weight(KG) |
Qty |
SVC- 1.5 |
40×36×17 |
52×48×28 |
18 |
1 |
SVC- 3 |
42×38×19 |
54×50×31 |
23 |
1 |
SVC- 4.5 |
42×38×19 |
54×50×31 |
27 |
1 |
SVC- 6 |
37×28×68 |
48×40×78 |
39 |
1 |
SVC- 9 |
35×33×78 |
48×45×90 |
48 |
1 |
SVC- 15 |
43×38×73 |
55×51×90 |
85 |
1 |
SVC- 20 |
43×51×91 |
64×55×106 |
124 |
1 |
SVC- 30 |
43×51×91 |
64×55×106 |
197 |
1 |
SVC- 45 |
65×43×95 |
78×55×110 |
260 |
1 |
SVC- 60 |
77×55×100 |
90×67×115 |
260 |
1 |
SVC- 80 |
77×55×100 |
90×67×115 |
290 |
1 |
SVC- 100 |
77×55×100 |
90×67×115 |
350 |
1 |
