2015 Hot SBW Three Phase Automatic Voltage stabilizer 3 Phase 380v Aervo Motor Power Stabilizer
| model | SBW50KVA | SBW100KVA | SBW150KVA | SBW200KVA | SBW250KVA | SBW320KVA | SBW400KVA | SBW500KVA | SBW600KVA |
| TECHNOLOGY | Servo Motor Control | ||||||||
| DISPLAY | Meter | A/B/C phase input voltage | Light | A phase working indicator | |||||
| A/B/C phase output voltage | B phase working indicator | ||||||||
| A phase output voltage | B phase working indicator | ||||||||
| B phase output voltage | input working indicator | ||||||||
| C phase output voltage | output working indicator | ||||||||
| PROTECTION | Over Voltage | output voltage≥248±4v | |||||||
| Low Voltage | output voltage≤170v±4v | ||||||||
| circuit breaker | regulator/by-pass | ||||||||
| time delay | long time (255second)/short time(5second) | ||||||||
| feed phase | |||||||||
| INPUT VOLTAGE | single phase:176V-264V Three phase four-line:176V-264V(phase voltage) 300V-465V(line voltage) 154V-286V(phase voltage) 270V-490V(line voltage) | ||||||||
| OUTPUT VOLTAGE | Signle phase 220V (adjustable) ;three phase 380V (adjustable) | ||||||||
| FREQUENCY | 50Hz/60Hz | ||||||||
| PHASE | three phase | ||||||||
| RESPONSE TIME | <1.5S | ||||||||
| AMBIENT TEMPERTURE | -10°C~40°C | ||||||||
| RELATIVE HUMIDITY | <98% | ||||||||
| WAVEFORM DISTORTION | no additional waveform distortion | ||||||||
| INSULTING RESISTANCE | Normally more than 5MΩ | ||||||||
| SPECIFICATIONS | |||||||||
| model | OUTPUTPOWER | PACKING SIZE(cm) | PACKIING | WEIGHT(KG) | |||||
| SBW50KVA | 50KVA | 80x62x135 | 1 | 250 | |||||
| SBW100KVA | 100KVA | 85x62x150 | 1 | 420 | |||||
| SBW150KVA | 150KVA | 100x72x170 | 1 | 550 | |||||
| SBW200KVA | 200KVA | 100x72x200 | 1 | 630 | |||||
| SBW250KVA | 250KVA | 110x80x200 | 1 | 700 | |||||
| SBW320KVA | 320KVA | 110x80x210 | 1 | 760 | |||||
| SBW400KVA | 400KVA | 200x160x420 | 1 | 1100 | |||||
| SBW500KVA | 500KVA | 200x160x420 | 1 | 1500 | |||||
| SBW600KVA | 600KVA | 200x160x420 | 1 | 2200 | |||||
SBW800KVA 800KVA 255×300×660 1 2800
SBW1000KVA 1000KVA 255×300×660 1 3500
SBW1200KVA 1200KVA 255×300×660 1 4100
SBW1600KVA 1600KVA 440×440×880 1 5560
SBW2000KVA 2000KVA 440×440×880 1 7100
Specifications
1.OEM factory

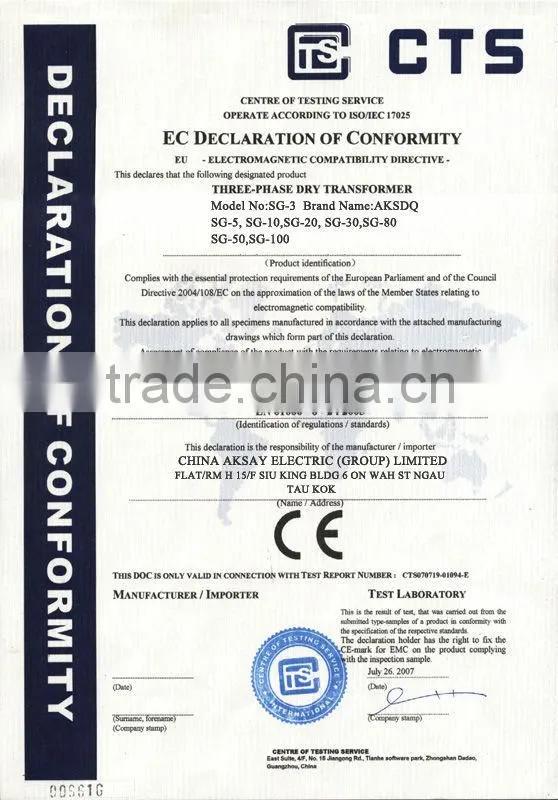

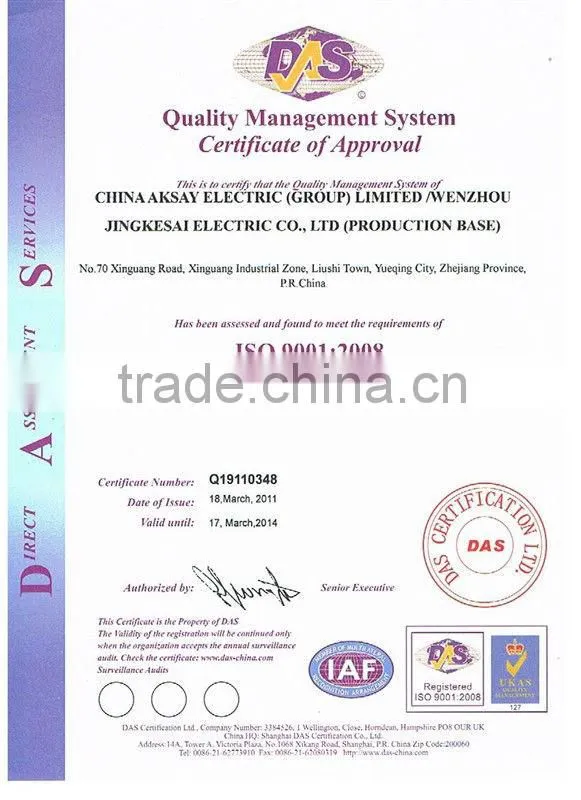

2.Passed CE/ISO Cert
3.have trade with many countries
4.New product development

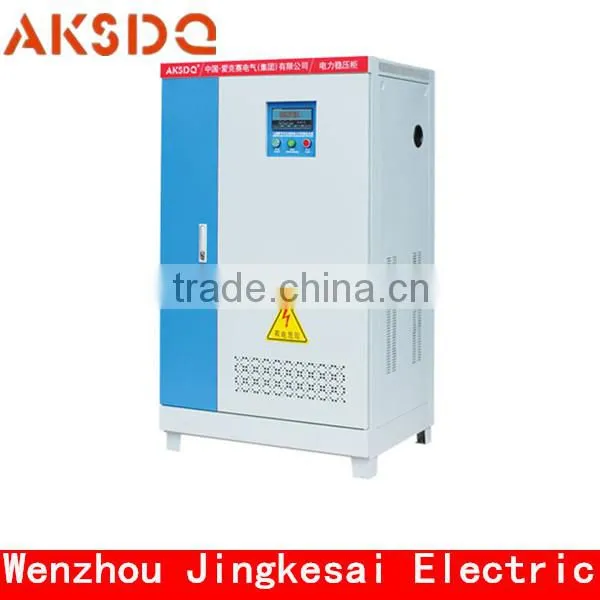

SBW Three Phase Automatic Voltage Regulator
Features of SBW Automatic Voltage Regulator (AVR)
(1) The AC voltage regulator is equipped with bypass system
(2) Compensated voltage technology is adopted
(3) Wide input voltage range
(4) Over voltage protection
(5) The voltage regulator has output voltage three phase auto-balance function
(6) SBW voltage regulators are widely used in electric power supply systems.
