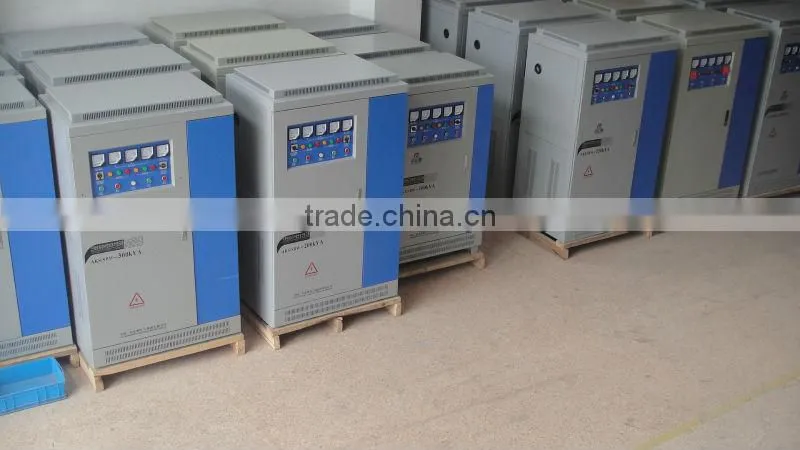

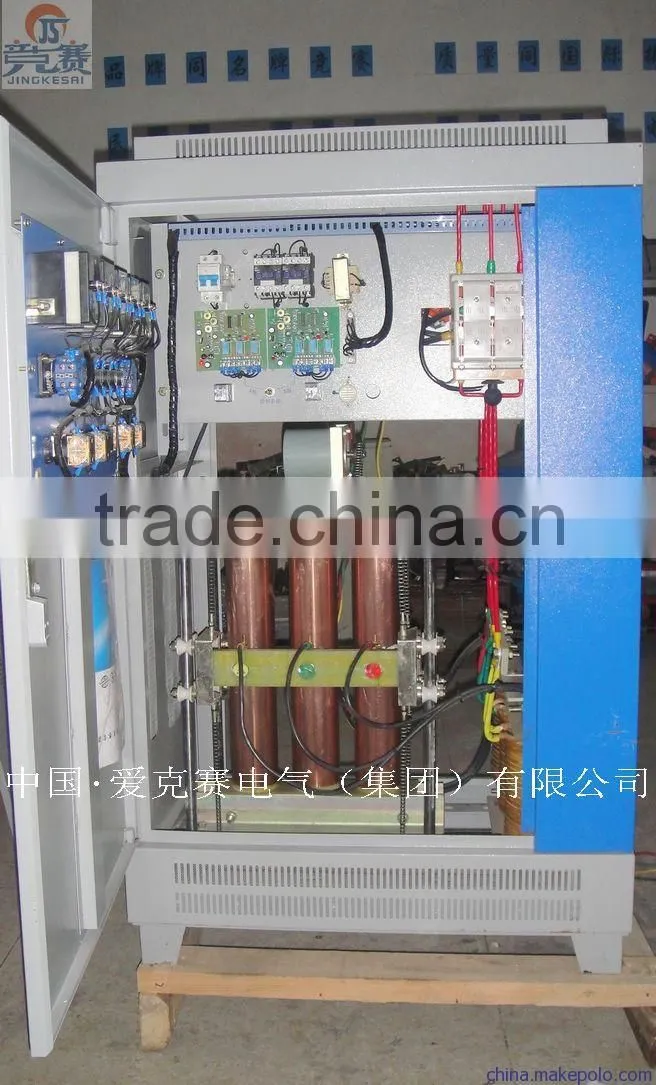

SBW-100KVA Regulator(AVR,Stabilizer) new type

Specifications

1)OEM factory
2)SBW compensated voltage stabilizer
3)Certificate:CE,ISO9001
4)Fast delivery,3 years warranty

Main Technical parameter



	DBW 50~350kva		SBW 30~1000kva
Input voltage range	160~250V		304~456V
Output voltage	220V±(1~5)% settable		380V±(1~5)% settable
Regulation accuracy	<±(1~5)%  settable
Insulation resistance	≥2MΩ
Withstand voltage	2000V/1min no disruption or flashes phenomenon
Frequency	50 / 60 Hz
Response time	<0.5s
Efficiency	≥98%
Waveform aberration	<1%
Ambient temp & relative humidity	-5°C ~+40°C   less than 90%





Introduction



 1)Principle & Characteristics

  This product is designeg and developed with the international advanced compensation technology. It can keep the output voltage in steady state automatically when the network voltage fluctuated or the load current varied, which can ensure the consumer run smoothly. It has the advantage of large capacity, high effficiency, no waveform distortion, simple operation and maintenance, reliabie running, full-capacity output under tower input voltage if compared with other voltage stabilizer. It is provided with over-voltage, over-current, phase sequence and so on protection function.



 2)Scope of Application

It is suitable for electric supply in small-sized plant, workshop and department inmiddle, largesizde mining enterprise, it can be widely used in the precision machine tool, precision instrument, test device, elevator,imported electromechanical device, production flow-line in the mining enterprise, oil field, railway, building site, school, hospital, hotel, scientificresearch department and so on, it is also suitable for the user in the LV electric network end with low power voltage and big wave range.



 3) Overall size & Weight

Model	Measurement (cm)	Output power(KVA)	Weight (KG)
SBW-50K	80×62×135	50	250
SBW-60K	80×62×135	60	350
SBW-100K	85×62×150	100	420
SBW-150K	100×72×170	150	550
SBW-180K	100×72×170	180	570
SBW-200K	100×72×200	200	630
SBW-225K	110×80×180	225	660
SBW-250K	110×80×200	250	700
SBW-300K	110×80×210	300	740
SBW-320K	110×80×210	320	760
SBW-400K	100×80×210/2cabinet	400	1100
SBW-500K	100×80×210/2cabinet	500	1500
SBW-600K	100×80×210/2cabinet	600	2200
SBW-800K	85×100×220/3cabinet	800	2800
SBW-1000K	85×100×220/3cabinet	1000	3500
SBW-1200K	85×100×220/3cabinet	1200	4100
SBW-1600K	110×110×220/4cabinet	1600	5560
SBW-2000K	110×110×220/4cabinet	2000	7100







  Warm prompt something you want to know:

1.The payment term:We accept TT,30% deposit and 70% balance agaisnt copy of BL.

2.The delivery time:Usually it will take about two weeks for production.

3.The standard of package: For the small capacity, it use carton, but for big capacity, we should use strong wooden case for protection.

4.The material of transformer: We have two types, one 100% copper and the other is copper with aluminum.It depends on your requirment. In fact,those two have no difference if normal work well. Only except the longlife. Copper is better and also higer price.



5.The logo:If you have good quantity,it absolute no problem to do OEM.

6.The month capacity:It depends on which model.For example for relay type small capacity , month capacity can reach near 100000pcs   and big capacity near 7000pcs.

7.Our market: Our products are popular in russia, indonisia, Philippines,italy, america, pakistan and so on.Some of them are our regular customers and some of them are developing. We hope you can join us and make mutural benifit from our cooperation.

8:The certificate: Our company already achieve ISO for products, we have CE.
