Help CenterSBW-100KVA Digital Automatic Voltage Regulator
Related Products
-
2014 New Hot SBW/AVR StabilizerUS$ 1,305.3 - 3,168MOQ: 1 Set -
Voltage Regulator/Voltage Stabilizer/ SBW SeriesUS$ 1,305.3 - 3,168MOQ: 1 Set
-
2016 New Type Industrial SBW Large Capacity Three Phase 380v Output VoltagerstabilizerUS$ 1,305.3 - 3,168MOQ: 1 Set
-
ac Automatic Voltage RegulatorUS$ 1,305.3 - 1,483.3MOQ: 1 Set
-
DBW SBW Single/Three Phase Compensation Voltage StabilizerUS$ 1,305.3 - 1,483.3MOQ: 1 Set
Main Technical parameter
| DBW 50~350kva | SBW 30~1000kva | |||
| Input voltage range | 160~250V | 304~456V | ||
| Output voltage | 220V±(1~5)% settable | 380V±(1~5)% settable | ||
| Regulation accuracy | <±(1~5)% settable | |||
| Insulation resistance | ≥2MΩ | |||
| Withstand voltage | 2000V/1min no disruption or flashes phenomenon | |||
| Frequency | 50 / 60 Hz | |||
| Response time | <0.5s | |||
| Efficiency | ≥98% | |||
| Waveform aberration | <1% | |||
| Ambient temp & relative humidity | -5°C ~+40°C less than 90% | |||
Introduction |
1)Principle & Characteristics
This product is designeg and developed with the international advanced compensation technology. It can keep the output voltage in steady state automatically when the network voltage fluctuated or the load current varied, which can ensure the consumer run smoothly. It has the advantage of large capacity, high effficiency, no waveform distortion, simple operation and maintenance, reliabie running, full-capacity output under tower input voltage if compared with other voltage stabilizer. It is provided with over-voltage, over-current, phase sequence and so on protection function.
2)Scope of Application
It is suitable for electric supply in small-sized plant, workshop and department inmiddle, largesizde mining enterprise, it can be widely used in the precision machine tool, precision instrument, test device, elevator,imported electromechanical device, production flow-line in the mining enterprise, oil field, railway, building site, school, hospital, hotel, scientificresearch department and so on, it is also suitable for the user in the LV electric network end with low power voltage and big wave range.
3) Overall size & Weight
Model |
Measurement (cm) |
Output power(KVA) |
Weight (KG) |
SBW-50K |
80×62×135 |
50 |
250 |
SBW-60K |
80×62×135 |
60 |
350 |
SBW-100K |
85×62×150 |
100 |
420 |
SBW-150K |
100×72×170 |
150 |
550 |
SBW-180K |
100×72×170 |
180 |
570 |
SBW-200K |
100×72×200 |
200 |
630 |
SBW-225K |
110×80×180 |
225 |
660 |
SBW-250K |
110×80×200 |
250 |
700 |
SBW-300K |
110×80×210 |
300 |
740 |
SBW-320K |
110×80×210 |
320 |
760 |
SBW-400K |
100×80×210/2cabinet |
400 |
1100 |
SBW-500K |
100×80×210/2cabinet |
500 |
1500 |
SBW-600K |
100×80×210/2cabinet |
600 |
2200 |
SBW-800K |
85×100×220/3cabinet |
800 |
2800 |
SBW-1000K |
85×100×220/3cabinet |
1000 |
3500 |
SBW-1200K |
85×100×220/3cabinet |
1200 |
4100 |
SBW-1600K |
110×110×220/4cabinet |
1600 |
5560 |
SBW-2000K |
110×110×220/4cabinet |
2000 |
7100 |
Warm prompt something you want to know:
1.The payment term:We accept TT,30% deposit and 70% balance agaisnt copy of BL.
2.The delivery time:Usually it will take about two weeks for production.
3.The standard of package: For the small capacity, it use carton, but for big capacity, we should use strong wooden case for protection.

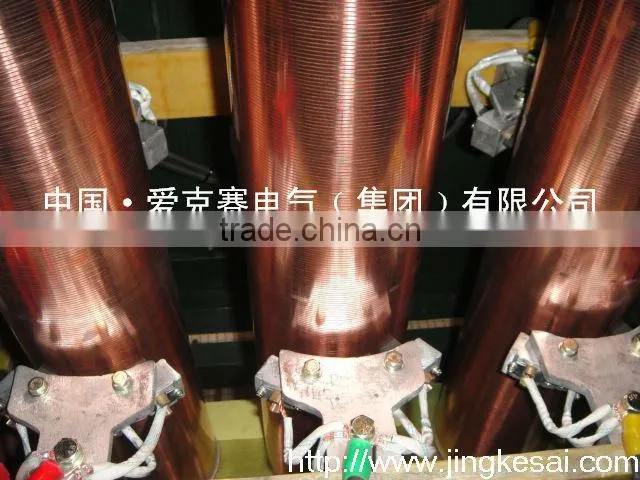

4.The material of transformer: We have two types, one 100% copper and the other is copper with aluminum.It depends on your requirment. In fact,those two have no difference if normal work well. Only except the longlife. Copper is better and also higer price.
5.The logo:If you have good quantity,it absolute no problem to do OEM.
6.The month capacity:It depends on which model.For example for relay type small capacity , month capacity can reach near 100000pcs and big capacity near 7000pcs.
7.Our market: Our products are popular in russia, indonisia, Philippines,italy, america, pakistan and so on.Some of them are our regular customers and some of them are developing. We hope you can join us and make mutural benifit from our cooperation.
8:The certificate: Our company already achieve ISO for products, we have CE.
