SBW-200KVA Full Automatic ac Voltage Regulator/Stabilizer made in wenzhou

FOB Price

USD $1,000 - $1,500 / Set

1 Set(Min.Order)

Supply Ability 3520 Set / Sets per Month
Port Ningbo or Shanghai
Payment Terms:T/T

Request Sample Customized Request Download Product Catalog

Contact Now

Get lowest price Inquiry Basket

Product Details

Place of Origin:	Zhejiang, China	Brand Name:	AKSDQ	Model Number:	SBW-100KVA
Usage:	Other, SBW	Phase:	Three Phase	Current Type:	AC

Product Description

SBW three phase voltage stabilizer:

1.Model:SBW
2.Function:adjust voltage
3.Standard:IEC/EN 61558
4.Input voltage:304~456V
5.Output voltage:380V±(1-5%)settable
6.Rated capacity:30KVA~1000KVA
7.Rated frequency:50/60Hz
8.Features:high efficiency,large capacity

9.Certificate:ISO9001:2008, FCC, CE

Specifications

1.reliable performance
2.high efficiency
3.long-term operation
plete specification
5.reasonable price, high quality

model	SBW50KVA	SBW100KVA	SBW150KVA	SBW200KVA	SBW250KVA	SBW320KVA	SBW400KVA	SBW500KVA	SBW600KVA
TECHNOLOGY	Servo Motor Control

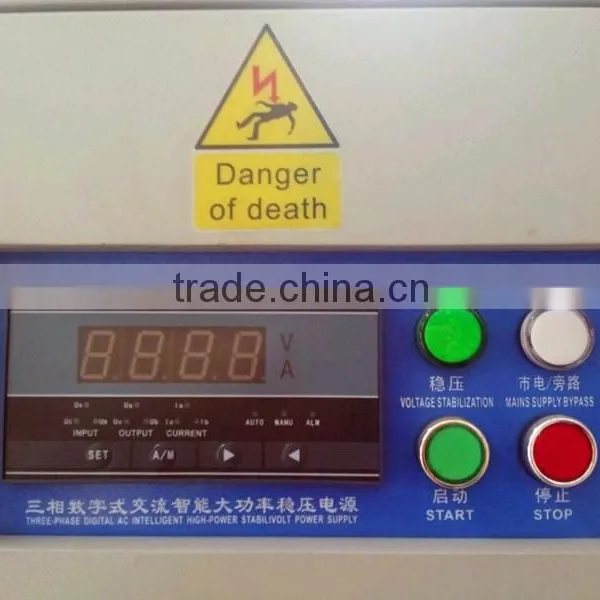

DISPLAY	Meter	A/B/C phase input voltage		Light	A phase working indicator
		A/B/C phase output voltage			B phase working indicator
		A phase output voltage			B phase working indicator
		B phase output voltage			input working indicator
		C phase output voltage			output working indicator
PROTECTION	Over Voltage	output voltage≥248±4v
	Low Voltage	output voltage≤170v±4v
	circuit breaker	regulator/by-pass
	time delay	long time (255second)/short time(5second)
	feed phase
INPUT VOLTAGE	single phase:175V-265V Three phase four-line:175V-265V(phase voltage) 300V-465V(line voltage) 154V-286V(phase voltage) 270V-490V(line voltage)
INPUT VOLTAGE

OUTPUT VOLTAGE	Signle phase 220V (adjustable) ;three phase 380V (adjustable)
OUTPUT VOLTAGE
FREQUENCY	50Hz/60Hz
PHASE	three phase
RESPONSE TIME	<1.5S
AMBIENT TEMPERTURE	-10°C~40°C
RELATIVE HUMIDITY	<95%
OVERLOAD	Double related current ,one min
WAVEFORM DISTORTION	no additional waveform distortion
INSULTING RESISTANCE	Normally more than 5MΩ
SPECIFICATIONS
model	POWER	PACKING SIZE	PACKIING
SBW50KVA	50KVA	80x62x135	1
SBW100KVA	100KVA	85x62x150	1
SBW150KVA	150KVA	100x72x170	1
SBW200KVA	200KVA	100x72x200	1
SBW250KVA	250KVA	110x80x200	1
SBW320KVA	320KVA	110x80x210	1
SBW400KVA	400KVA	200x160x420	1
SBW500KVA	500KVA	200x160x420	1
SBW600KVA	600KVA	200x160x420	1

Specifications

1.OEM factory
2.Passed CE/ISO Cert
3.have trade with many countries
4.New product development

SBW Three Phase Automatic Voltage Regulator

Features of SBW Automatic Voltage Regulator (AVR)
(1) The AC voltage regulator is equipped with bypass system
(2) Compensated voltage technology is adopted
(3) Wide input voltage range
(4) Over voltage protection
(5) The voltage regulator has output voltage three phase auto-balance function
(6) SBW voltage regulators are widely used in electric power supply systems.
