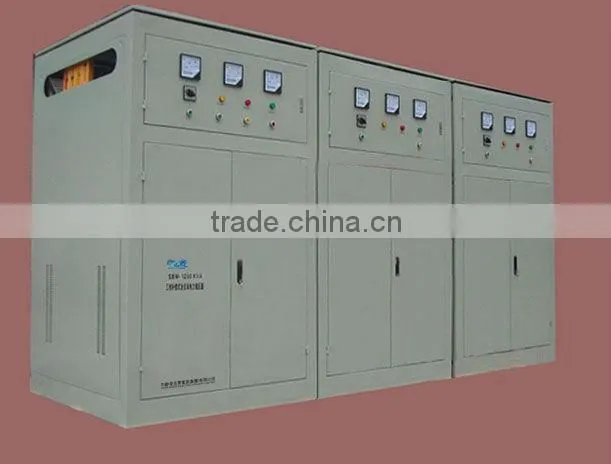

Help Center1200KVA Three Phase Automatic Voltage Stabilizer Made in China
Related Products
-
Three Phase ac Sbw 1200kva Voltage Stabilizer ManufacturerUS$ 13,000 - 20,000MOQ: 1 Set -
SBW Three Phase Voltage Stabilizer Used in the Precision Machine ToolUS$ 1,305 - 2,000MOQ: 1 Set
-
The Manufacturer of SBW Industry Voltage StabilizerUS$ 800 - 3,166.7MOQ: 1 Set
-
3 Phase Sbw Avr Three Phase High Precision ac Voltage StabilizerUS$ 800 - 6,333MOQ: 1 Set
-
SBW Factory 3 Phase Voltage Stabilizer ZhejiangUS$ 1,980 - 2,200MOQ: 1 Set
SBW three phase voltage stabilizer:
1.Model:SBW
2.Function:adjust voltage
3.Standard:IEC/EN 61558
4.Input voltage:304~456V
5.Output voltage:380V±(1-5%)settable
6.Rated capacity:30KVA~1000KVA
7.Rated frequency:50/60Hz
8.Features:high efficiency,large capacity
9.Certificate:ISO9001:2008, FCC, CE
Specifications
1.reliable performance
2.high efficiency
3.long-term operation
plete specification
5.reasonable price, high quality
| model | SBW50KVA | SBW100KVA | SBW150KVA | SBW200KVA | SBW250KVA | SBW320KVA | SBW400KVA | SBW500KVA | SBW600KVA |
| TECHNOLOGY | Servo Motor Control | ||||||||
| DISPLAY | Meter | A/B/C phase input voltage | Light | A phase working indicator | |||||
| A/B/C phase output voltage | B phase working indicator | ||||||||
| A phase output voltage | B phase working indicator | ||||||||
| B phase output voltage | input working indicator | ||||||||
| C phase output voltage | output working indicator | ||||||||
| PROTECTION | Over Voltage | output voltage≥248±4v | |||||||
| Low Voltage | output voltage≤170v±4v | ||||||||
| circuit breaker | regulator/by-pass | ||||||||
| time delay | long time (255second)/short time(5second) | ||||||||
| feed phase | |||||||||
| INPUT VOLTAGE | single phase:175V-265V Three phase four-line:175V-265V(phase voltage) 300V-465V(line voltage) 154V-286V(phase voltage) 270V-490V(line voltage) | ||||||||
| OUTPUT VOLTAGE | Signle phase 220V (adjustable) ;three phase 380V (adjustable) | ||||||||
| FREQUENCY | 50Hz/60Hz | ||||||||
| PHASE | three phase | ||||||||
| RESPONSE TIME | <1.5S | ||||||||
| AMBIENT TEMPERTURE | -10°C~40°C | ||||||||
| RELATIVE HUMIDITY | <95% | ||||||||
| OVERLOAD | Double related current ,one min | ||||||||
| WAVEFORM DISTORTION | no additional waveform distortion | ||||||||
| INSULTING RESISTANCE | Normally more than 5MΩ | ||||||||
| SPECIFICATIONS | |||||||||
| model | POWER | PACKING SIZE | PACKIING | ||||||
| SBW50KVA | 50KVA | 80x62x135 | 1 | ||||||
| SBW100KVA | 100KVA | 85x62x150 | 1 | ||||||
| SBW150KVA | 150KVA | 100x72x170 | 1 | ||||||
| SBW200KVA | 200KVA | 100x72x200 | 1 | ||||||
| SBW250KVA | 250KVA | 110x80x200 | 1 | ||||||
| SBW320KVA | 320KVA | 110x80x210 | 1 | ||||||
| SBW400KVA | 400KVA | 200x160x420 | 1 | ||||||
| SBW500KVA | 500KVA | 200x160x420 | 1 | ||||||
| SBW600KVA | 600KVA | 200x160x420 | 1 | ||||||
Specifications
1.OEM factory
2.Passed CE/ISO Cert
3.have trade with many countries
4.New product development
SBW Three Phase Automatic Voltage Regulator
Features of SBW Automatic Voltage Regulator (AVR)
(1) The AC voltage regulator is equipped with bypass system
(2) Compensated voltage technology is adopted
(3) Wide input voltage range
(4) Over voltage protection
(5) The voltage regulator has output voltage three phase auto-balance function
(6) SBW voltage regulators are widely used in electric power supply systems.
