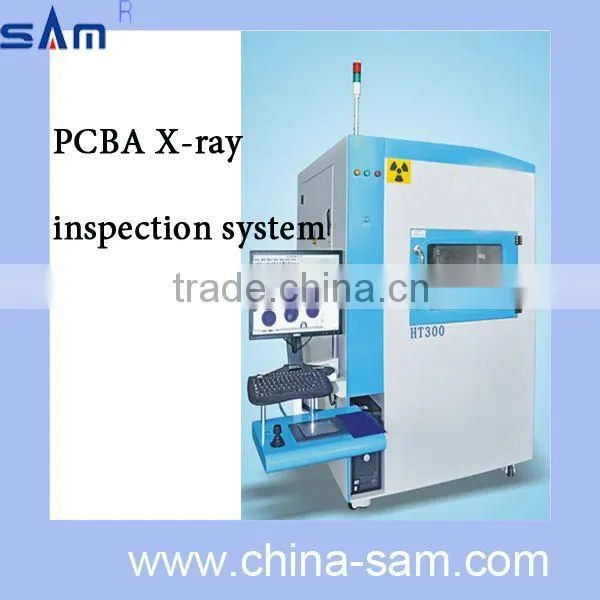

high resolution X-ray inspection system
- 500 Set / Sets per Month
- SHENZHEN
- T/T
Product Details
Place of Origin: | Guangdong, China | Brand Name: | SAM | Model Number: | HT300 |
Power: | Electronic | Usage: | Auto Testing Machine |
Product Description
Specifications
1 high technology of image collection2 quickly inspection.
3 Can make the size as customer required
4 x-ray inspection
Automobile, metal, casting, large PCB inspection machine
130KV super high voltage (upgradable to 160 KV), maximum current 250uA, and 2um focal spot tube, suitable to inspect thicker PCB, precision metals, semiconductors, BGA and anything that needs higher inspection requirements. It’s effect is equivalent to that of an open tube.
Scope of application
1. Perfect and higher NDT inspection of the welding of BGA,CSP,FPD,QFP
2. Inspect and analysis the products which made of mould,
3. Inspect the internal structure of metals, heat tube, li-po bettary, pearl, precised parts.
Feature
1. Use the new high technology of image collection, realize to get the high resolution image and inspection result, show the mini disadvantage and structure change vividly.
2. Through the software and high speed sample table, realize the quickly inspection.
3. Rotatable detector can inspect the disfigurement part which is difficult to be found out from the vertical view.
4. Use the OK/NG image choosing function, export the analysis report.
5. Can make the size as customer required.
Item | Model | HT300 |
X-Ray Tube | Tube Style | Sealed tube |
Tube voltage | 130KV | |
Tube current | 0.15mA | |
Tube focus size | 2-5um | |
Cooling mode | air cooling | |
Geometric / Optical magnification | /1000 times | |
Sample Table | Axis X | 580mm |
Axis Y | 500mm | |
Axis Z | 300mm | |
Axis R | ±75° | |
image intensifier | Field of view | 4/6 inches |
Resolution | 110 lp/cm | |
X-ray housing | Dimension | 1330*1560*1890mm |
Weight | About 1500kg | |
Power | Power source | AC110-230VAC, 50/60Hz |
Computer | Brand | Dell |
Operating System | Windows@XP | |
Display | 19’’LCD | |
CPU | Intel Pentium IV |
