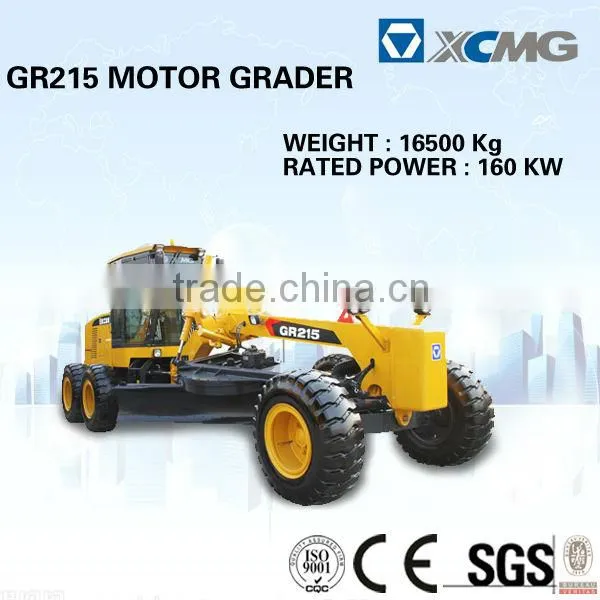

XCMG GR215 Grader for Sale
US$ 20,000 - 100,000
MOQ: 1 Unit
Key Specifications
Get Latest Price
Condition:
New
Forward Speed(km/h):
38
Reverse Speed(km/h):
23
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
GR180 XCMG GR180 Motor Grader for SaleUS$ 10,000 - 150,000MOQ: 1 Unit -
XCMG GH215 Grader for SaleUS$ 10,000 - 100,000MOQ: 1 Unit
-
Motor Grader GR135 XCMG Motor GraderUS$ 10,000 - 100,000MOQ: 1 Unit
-
GR135 Motor Grader ( XCMG Hydraulic Motor Grader , Hydraulic Grader )NegotiableMOQ: 1 Unit
-
XCMG GR215A Grader for SaleUS$ 59,000 - 100,000MOQ: 1 Set
Condition
New
Forward Speed(km/h)
38
Reverse Speed(km/h)
23
Place of Origin
Jiangsu, China
Brand Name
XCMG
Model Number
GR215
Weight
16500kg
Dimension(L*W*H)
8970*2625*3470mm
Certification
ISO9001,SGS,CE
After-sales Service Provided
Engineers available to service machinery overseas
| Engine model | 6CTAA8.3 6CTA8.3 |
| Rated power/speed | 153kW/2200rpm 160kW/2200rpm |
| Dimension(LxWxH) | 8970×2625×3470mm |
| Operating weight(Standard) | 16500kg |
Performance specification | |
|---|---|
| Travelling speed ,forward | 5,8,11,19,23,38 km/h |
| Travelling speed ,reverse | 5,11,23 km/h |
| Tractive force(f=0.75) | 82KN |
| Max. gradeability | 20% |
| Tire inflation pressure | 260 kPa |
| Working hydraulic pressure | 16 MPa |
| Transmission pressure | 1.3~1.8MPa |
Operating specification | |
| Max. steering angle of front wheels | ±50° |
| Max. lean angle of front wheels | ±17° |
| Max. oscillation angle of front axle | ±15° |
| Max. oscillation angle of balance box | 15 |
| Frame articulation angle | ±27° |
| Min. turning radius using articulation | 7.3m |
| Blade | |
| Maximum lift above ground | 450mm |
| Maximum depth of cutting | 500mm |
| Maximum blade position angle | 90° |
| Blade cutting angle | 28°—70° |
| Circle reversing rotation | 360° |
| Moldboard width X height | 4270×610mm |
