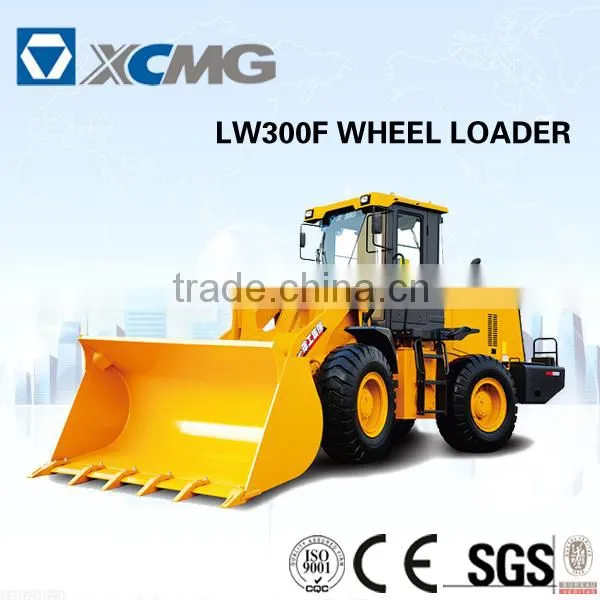

XCMG LW300FN(3.0tons Loader) of Wheel Loader

Name: XCMG LW300FN(3.0tons Loader) of Wheel Loader
Brand: XCMG
SKU: 122880169
Availability: InStock

Negotiable MOQ: 1 Piece (Price negotiable depending on order volume and customization)

Key Specifications

Condition:

New

Brand Name:

XCMG

Model Number:

LW300FN

Shanghai Longji Construction Machinery Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Shanghai

Delivery Detail:

Delivery time depends on order quantity.

Condition New

Brand Name XCMG

Model Number LW300FN

Place of Origin Shanghai, China

Type Front Loader

Moving Type Wheel Loader

Dimension(Long * Breadth * High) 5610*2010*2900mm

Rated Load 3.0T

Certification CE,ISO9001

Warranty 1200 hours

After-sales Service Provided Engineers available to service machinery overseas

wheel loader of LW300FN(3.0tons loader)

loader machine

Features:

1. Unique appearance with new concept, streamline and wide visibility.

2. The main components are supplied by famous manufacturer. Engine matches the torque converter ideally.

3. Articulated structure with small turning radius and flexible steering, which is maneuverable in narrow space.

4. Combined flow of two pumps for less consumption and high efficiency.

Specifications:

Item	Parameter	Unit
Rated load	3.0	t
Bucket capacity	1.8	m³
Dumping height	2930	mm
Dumping distance	1000	mm
Max. drawing force	≥120	kN
Max. traction	≥90	kN
Dimension (Length × Width × Height )	6900×2482×3025	mm
Operating weight	10.0	t
Boom lifting time	5.65	s
Total time of three devices	10.3	s
Wheelbase	2600	mm
Min. turning radius (bucket outer)	5925	mm
Rated power	92	km/h
Travel speed I Gear (Forward/Backward)	0~10/14	km/h
II Gear (Forward/Backward)	0~16/25	km/h
III Gear (Forward)	0~21	km/h
IV Gear (Forward)	0~35	km/h
Boom Parameter
Bucket capacity	1.8	m³
Rated load	2.6	t
Dimension (Length × Width × Height)	7226×2470×3028	mm
Dumping height	3200	mm
Dumping distance	1142	mm
Operating weight	10	t
Attachment parameter-grasping grass
Dumping height	2948	mm
Dumping distance	2036	mm
Clamp body width	2200	mm
Max. opening	2800	mm
Attachment parameter-clamp(III)
Dumping height	2551	mm
Dumping distance	837	mm
Min. circle diameter	590	mm
Max. opening	1700	mm
Attachment parameter-side dump
Bucket width	2650	mm
Dimension	7.25×2650×3028	mm
Dumping height(straight/side) dumping	2725/3524	mm
Dumping distance(straight/side) dumping	1109/175	mm
Lifting height(straight/side) dumping	4980/5928	mm
Attachment parameter-Sliding fork
Fork folding angle	17.2°
Attachment length	1575	mm
Attachment width	1980	mm
Attachment height	1200	mm
Fork teeth length	1050	mm
