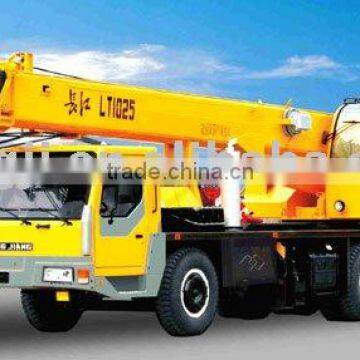

Truck Crane ( Lifting Capacity 25t )

Name: Truck Crane ( Lifting Capacity 25t )
Brand: CHANGJIANG
SKU: 122879705
Availability: InStock

Negotiable MOQ: 1 Unit (Price negotiable depending on order volume and customization)

Key Specifications

Max. Lifting Load:

25T

Place of Origin:

Sichuan, China

Brand Name:

CHANGJIANG

Shanghai Longji Construction Machinery Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Shanghai

Delivery Detail:

Delivery time depends on order quantity.

Max. Lifting Load 25T

Place of Origin Sichuan, China

Brand Name CHANGJIANG

Model Number LT1025-2

Specifications

Truck Crane ( lifting capacity 25t )

1	Crane main specifications
1.1	Boom base	length（m）	10.61
		Max. rated lifting capacity(t)	25
		Working radius(m)	3～8
		Max. lifting height (m)	10.55
1.2	Full boom	length（m）	32.3
		Max. lifting capacity(t)	6.5
		Max. lifting capacity(t)	7～28
		Working radius(m)	31.97
1.3	jib	length(m)	8
		Max. lifting capacity (t)	2.5
		Working radius（m）	8～30
		Max. lifting height (m)	39.89
1.4	Single line speed (m/min)	Main hoist	0～140
		Aux. hoist	0～140
1.5	Slewing speed(r/min)		0～2
1.6	Elevating (s)	Up	≤50
		down	≤40
1.7	Boom telescoping (s)	extending	≤50
		Retracting	≤30
2	Chassis main specifications
2.1	Chassis type		QZC5303J
2.2	drive		6×4
2.3	Engine type		WP6.240
		Max. output power	176kw/2500r/min
		Max. torque of engine	810Nm/1400-1500r/min
2.4	wheel base(m)		4.225×1.350
2.5	Wheel span(m)	I axle	2.088
		II III axle	1.776
2.6	Outrigger type (m)	longitudinal x transverse	5.03x6.0
2.7	Max. traveling speed(km/h)		77
2.8	Grade ability %		28
2.9	Approach angle(°)		18.1
2.10	Angle of departure(°)		12.7
2.11	Min. turning radius(m)		11
2.12	Tire quantity/tire type		11/12.00-20-18PR
2.13	Oil wear each hundred kilometer(L)		45
2.14	Max. self-weight in traveling condition(kg)		28658
2.15	Axles load allot (kg)	I axle	6196
		II、IIIaxle	22462
2.16	Overall dimensions (LxWxH) (m)		12.56×2.5×3.6
