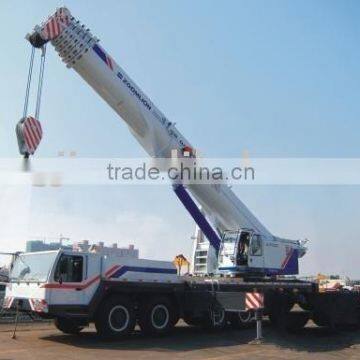

Crane(brand New 70t Truck Crane,8x4 Truck Crane, QY70 Mobile Crane)

Name: Crane(brand New 70t Truck Crane,8x4 Truck Crane, QY70 Mobile Crane)
Brand: ZHONGLIAN
SKU: 122879697
Availability: InStock

Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)

Key Specifications

Place of Origin:

Hunan, China

Brand Name:

ZHONGLIAN

Shanghai Longji Construction Machinery Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Shanghai

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Hunan, China

Brand Name ZHONGLIAN

Specifications

Capacity: 70tons (brand new truck crane)
Drive style: 8x4
Boom length: 11.6~44.0
Jib length: 9.5m, 16m
Engine Model: ZLJ545

Capacity: 70tons (brand new truck crane)

Drive style: 8x4

Boom length: 11.6~44.0

Jib length: 9.5m, 16m

Engine Model: ZLJ5455

Main Technical Specifications

Item			Value	Remarks
Working performance specification	Max. rated total lifting capacity kg		70000
	Max. load moment of basic boom kN.m		2352
	Max. load moment with max. main boom length kN.m		1098
	Max. lifting height of basic boom m		12.2
	Max. lifting height of main boom m		44.2	Deformation of boom is not taken into consideration
	Max. lifting height of fly jib m		60.2
Working speed	Max. speed of single rope on main winch m/min		120	The 4th layer of drum
	Max. speed of single rope on auxiliary winch m/min		68	The 2nd layer of drum
	Derricking time of boom s		57
	Telescopic time of boom s		107
	Slewing speed r/min		1.6
Traveling specification	Max. traveling speed km/h		75
	Max. gradeability %		35
	Min. turning circle diameter m		24
	Min. ground clearance mm		280
	Limits for exhaust pollutants and smoke		Comply with related standards	GB3847-2005 GB17691 -2005(Stage )
	Oil consumption per hundred kilometers L		55
Mass specification	Deadweight of crane in traveling condition kg		45000
	Complete vehicle kerb mass kg		44870
	Front axle load kg		19000
	Rear axle load kg		26000
Dimension specification	Overall dimensions(L×W×H) mm		14100×2750×3750
	Base on outriggers m		6.00
	Distance between outriggers m		full extended 7.60, half extended 5.04
	Main boom length m		11.6~44.0
	Main boom angle °		-280
	Fly jib length m		9.5 , 16
	Offset angle of fly jib °		0 , 30
Chassis	Model		ZLJ5455
	Class		II
	Engine	Model	WP10.375	QSL 325
		Rated power kW/r/min	276/2200	242/2100
		Max. output torque N.m/r/min	1460/14601600	1424/1500
	Manufacturer		Changsha Zoomlion Heavy Industry Science & Technology Development Co., Ltd.
