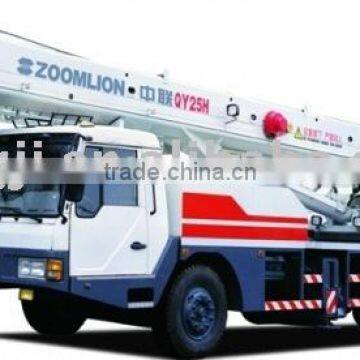

Truck Crane (brand New 25t Truck Crane,6x4 Truck Crane, QY30 Truck Crane)NegotiableMOQ: 1 Set
Specifications
Capacity: 25 tons(brand new truck crane)Drive style: 6x4
Emission: Euro III
Boom length: 10.6~40m
Jib length: 8m
Truck Crane (brand new 20t Truck Crane,6x4 truck crane, QY30 truck crane)
Capacity: 30tons(brand new truck crane)
Drive style: 6x4
Boom length: 10.6~40m
Jib length: 8m
Emission: Euro III
CHARACTERISTICS
(1) This type of truck crane, one of the classic products in the same trade, has earned a good reputation from customers.
(2) The crane adopts a standard-type and self-made special-purpose chassis with a full-width drivers cab. The chassis drive type is 6×4.
(3) The crane adopts WEICHAI Steyr engine which is specially developed for those cranes that often travel at low speed.
(4) The crane is equipped with 8-speed gearbox which changes gear smoothly and is of simple structure and makes maintenance convenient.
(5) The crane is fitted with a 39m long hexagon-section boom which is made of high-strength steel, so the boom has strong resistance to bending and torsion.
(6) The unique manual full proportional control incorporates the advantages of traditional lever control and electric-hydraulic pilot control.
(7) We have made constant improvements on our products, for instance, adding radiator for hydraulic system and mounting hydraulic oil tank of large capacity on the slewing table.
(8) The crane is fitted with outrigger lamps which can facilitate operation at night.
(9) The crane is equipped with high-quality load moment limiter which has such advantages as great precision and complete information shown on the display.
Main Technical Specifications
Item | Value | Remarks | ||
Working performance specification | Max. rated total lifting capacity kg | 25000 | ||
Max. load moment of basic boom kN.m | 980 | |||
Max. load moment with max. main boom length kN.m | 494 | |||
Max. lifting height of basic boom m | 11.2 | |||
Max. lifting height of main boom m | 39 | Deformation of boom is not taken into consideration. | ||
Max. lifting height of fly jib m | 47.6 | |||
Working speed | Max. speed of single rope on main winch m/min | 120 | The 4th layer of drum | |
Max. speed of single rope on auxiliary winch m/min | 105 | The 2nd layer of drum | ||
Derricking time of boom s | 40 | |||
Telescopic time of boom s | 80 | |||
Slewing speed r/min | 02.2 | |||
Traveling specification | Max. traveling speed km/h | 78 | ||
Max. gradeability % | 37 | |||
Min. turning circle diameter m | 22 | |||
Min. ground clearance mm | 220 | |||
Limits for exhaust pollutants and smoke | Comply with related standards | GB3847-2005 GB17691-2005 Stage III | ||
Oil consumption per hundred kilometers L | 45 | |||
Mass specification | Deadweight of crane in traveling condition kg | 31000 | ||
Complete vehicle kerb mass kg | 30870 | |||
Front axle load kg | 6400 | |||
Rear axle load kg | 24600 | |||
Dimension specification | Overall dimensions (L×W×H) mm | 12700×2500×3500 | ||
Base on outriggers m | 5.36 | |||
Distance between outriggers m | 6.1 | |||
Main boom length m | 10.239 | |||
Main boom angle ° | -280 | |||
Fly jib length m | 8 | |||
Offset angle of fly jib ° | 0, 30 | |||
Chassis | Model | ZLJ5324 | ||
Class | II | |||
Engine | Model | WP10.270 | ||
Rated power kW/r/min | 199/2200 | |||
Max. output torque N.m/r/min | 1100/13001600 | |||
Manufacturer | Changsha Zoomlion Heavy Industry Science & Technology Development Co., Ltd. | |||
Further information, please feel free to contact with us, we will offer our best services.
Fax: +86-021-54171572
Tel: +86-021-54171571 (9AM to 6PM Beijing Time)
