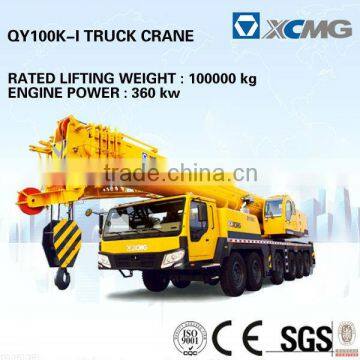

QY100K-I XCMG Hydraulic Truck Crane

Name: QY100K-I XCMG Hydraulic Truck Crane
Brand: XCMG
SKU: 122879413
Availability: InStock

Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)

Key Specifications

Condition:

New

Application:

building

Rated Loading Capacity:

100000kg

Shanghai Longji Construction Machinery Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Shanghai

Delivery Detail:

Delivery time depends on order quantity.

Condition New

Application building

Rated Loading Capacity 100000kg

Rated Lifting Moment 3450 KN.m

Max. Lifting Load 100000kg

Max. Lifting Height 67m

Span 7.6m

Place of Origin Jiangsu, China

Brand Name XCMG

Model Number QY100K-I

Certification CE/GOST

Warranty 12 months

Dimension	Unit	QY100K-I
Overall length, width, height	mm	15600×3000×3850
Wheel base	mm	1420+2420+1800+1420+1505
Weight
Total weight in travel	kg	54900 58000
Axle load
Axle 1	kg	7500 7500
Axle 2	kg	7500 7500
Axle 3	kg	8300 10000
Axle 4	kg	12000 12500
Axle 5	kg	12000 12500
Axle 6	kg	7600 8000
Power
Engine rated power	kW/(r/min)	360/1800 (306/1900)
Engine rated torque	N.m/(r/min)	2200/1300 (2010/1200)
Engine rated speed	r/min	1800 (1900)
Min. ground clearance	mm	310
Travel
Approach angle	°	20
Departure angle	°	14
Braking distance (at 30km/h)	m	≤10
Max. grade ability	%	40
Min. turning diameter	m	24
Fuel consumption for 100km	L	70
Main performance
Max. rated total lifting capacity	m	100
Min. rated working radius		3
Turning radius at turntable tail
Counterweight	mm	4200
Aux. winch	mm	4590
Max. lifting torque		3450
Base boom	kN.m	3450(4m×88t)
Fully extended boom	kN.m	1950(24m×7.1t)
Fully extended boom+ jib	kN.m	1230(19.2m×6t)
Outrigger span (full extension)
Longitudinal	m	7.56
Lateral	m	7.6
Lifting height
Base boom	m	13.5
Fully extended boom	m	50.9
Fully extended boom+ jib	m	70.4
Boom length	m	13.5
Fully extended boom	m	51
Fully extended boom+ jib	m	51+18.1+4
Working speed
Jib setting angle	°	0,15,30
Boom luffing time	s	75
Boom
Boom telescoping time
Full extension	s	160
Max. swing speed	r/min	2
Outrigger extension/retraction time
Outrigger beam in extension/retraction	s	25/15
Outrigger jack in extension/retraction	s	45/25
Lifting speed (single rope, layer 4)
Main winch	m/min	105
Aux. winch	m/min	104
