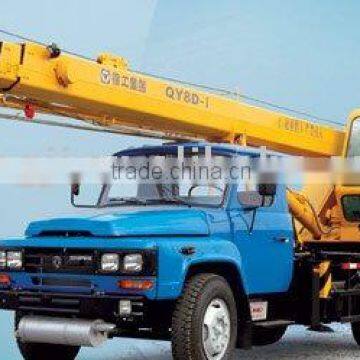

Truck Crane ( Lifting Capacity: 8t )

Name: Truck Crane ( Lifting Capacity: 8t )
Brand: XCMG
SKU: 122879375
Availability: InStock

Negotiable MOQ: 1 Unit (Price negotiable depending on order volume and customization)

Key Specifications

Condition:

New

Max. Lifting Load:

Place of Origin:

Jiangsu, China

Shanghai Longji Construction Machinery Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Shanghai

Delivery Detail:

Delivery time depends on order quantity.

Condition New

Max. Lifting Load 8T

Place of Origin Jiangsu, China

Brand Name XCMG

Model Number QAY8D

Specifications

truck crane ( lifting capacity: 8t )

Classificatory	Item		Unit	Parameter
Outline dimension	Overall length		mm	9080
	Overall width		mm	2400
	Overall height		mm	3180
	Track	Front wheel	mm	1810
	Track	Rear wheel	mm	1800
	Wheel base		mm	3950
Mass	Total mass in travel state		kg	10000
	Axle load	Front axle load	kg	2600
	Axle load	Rear axle load	kg	7400
Travel performance	Travel speed	Max. travel speed	km/h	75
	Travel speed	Min. travel speed	km/h	2.5
	Turning diameter.	Min. turning diameter	m	16
	Turning diameter.	Min. turning diameter at boom tip	m	18
	Max. grade-ability		%	28
	Longitudinal passing radius		m	4.35
	Lateral passing radius		m	0.869
	Min. ground clearance		mm	260
	Approach angle		(°)	29
	Departure angle		(°)	11
	Braking distance (30km/h on asphalt or concrete road)		m	≤8
Power	Engine model			YC4110ZLQ
	Engine output		kW/r/pm	105
	Engine torque		N.m/r/pm	402

Main Technical Data for Lifting Operation

Classificatory	Item			Unit	Parameter
Lifting performance	Max. total rated lifting capacity			kg	8000
	Min. rated working radius			m	3
	Max. load moment			kN.m	235.2
	Max. lifting height	Base boom		m	7.5
		Fully extended boom		m	16.98
		Fully extended boom + Jib		m	22.1
	Outrigger span	Longitudinal		m	3.825
		Lateral		m	4.0
Working speed	Hoist speed single line at 2nd layer)	Single pump		m/min	53
		Two pumps combined		m/min	96
	Max. swing speed			r/min	2.8
	Boom telescoping time	Boom full extension		S	36
		Boom full retraction		S	25
	Elevating time	Boom full raising		S	35
		Boom full lowering		S	20
	Outrigger extension / retraction time	Outrigger beam	Synchronous retraction	S	16
			Synchronous extension	S	16
		Outrigger jack	Synchronous retraction	S	17
			Synchronous extension	S	17
