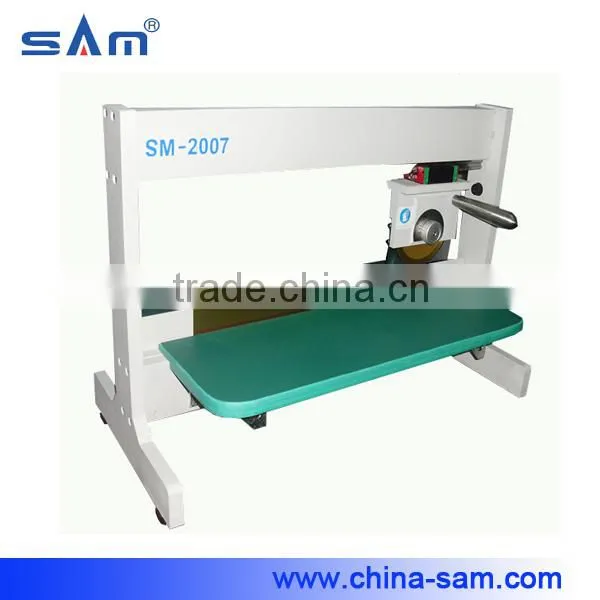

Help CenterSM-2007 Manual PCB Cutting Machine
Related Products
Specifications
1.Cutting both small and large pre-scored.2.Standard cut length of 4000mm,600mm also available.
3.pcb cutting machine
Features:
SM-2007 separates both small and large pre-scored PCBs.
The table and the rest can be continuously adjusted to the most suitable working position, The slit between the linear blade and the rest can be adjusted to ensure that the side strips fall through and are sorted out.
Safe operation

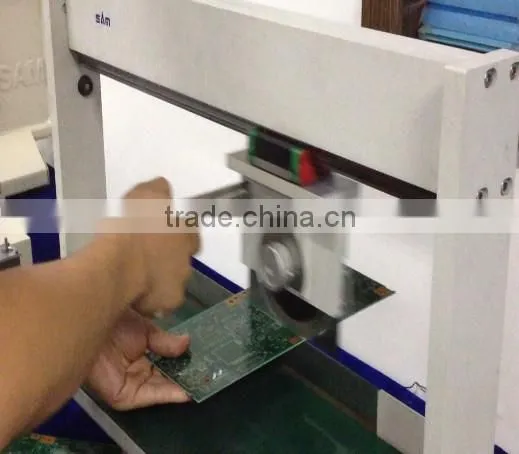

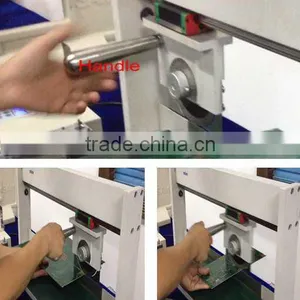

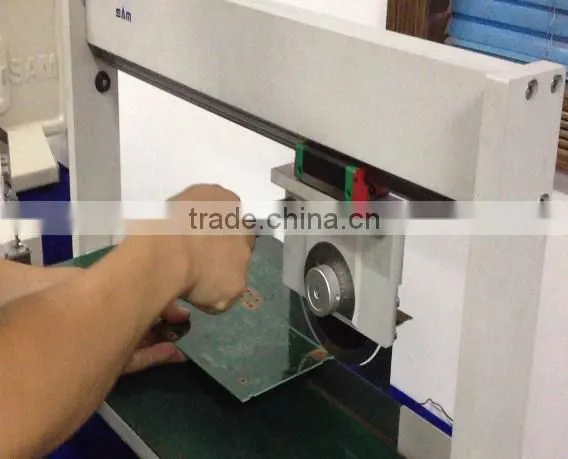

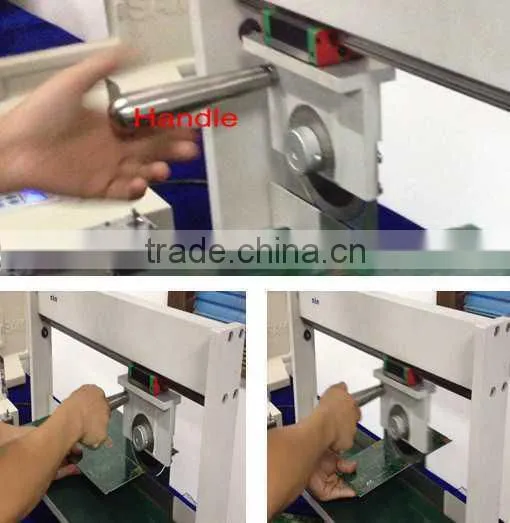

The PCB is placed with its pre-scored groove onto the linear blade and circular blade is then drawn by hand across the PCB.
The clearance between the upper guide and the linear blade is adjustable to ensure that the PCB is only separated in the pre-scored groove.
Recommended pre-scored grooves
The pre-scored grooves can be interrupted by any number of cutouts.
If components project above the groove,the linear blade needs to be cut out, in such a case,contact us.
- Circular blade cuts against the linear blade to ensure clean, burr-free processing without board stress.
- Will depanel PCBs with components 1mm from the score line.
- Quick-lock design for easy circular blade setup to any PCB thickness.
- Hardened tooled steel long-life blades
- Large processing table, which can be angled to permit processed boards to fall away.
- Standard cut length of 400mm. 600mm also available.
Specification:
Technical Date | |
Separator type |
Components side circular blade Solder side linear blade |
Operation |
By hand |
Separation length |
Max 450mm |
Separation speed |
Adjustable by hand |
mains voltage |
dual voltage 230/115v 50-60H |
Earthing stud |
Φ10mm |
Operation temp |
15-25°C |
|
storage/transport temperature |
-20-50°C |
|
humidity. non-condensing |
10-85% |
weight |
22kg |
Dimensions |
450*350*700mm |
|
the machines comply with the safety regulations of the EC directives | |
SM-2007 PCB Cutting machine operation :
SM-2007 PCB Separator working video :
Other model pcb separator
SAM Factory
Exhibition
Honor Customer
Why choose us
1.Low MOQ: 1 set
2.OEM & ODM Accepted : We can produce any your design.
3.Good Service : We treat clients as friends.
4.Good Quality :We have own SAM Brand, strict quality control system .Good reputation in the market.
5.Fast Devlivery & Good Price: We are manufacturer, have our own factory, can control the production and cost.
6. after-sales service: one year guarantee.
Any interested , welcome inquiry ! Will try our best support you !
