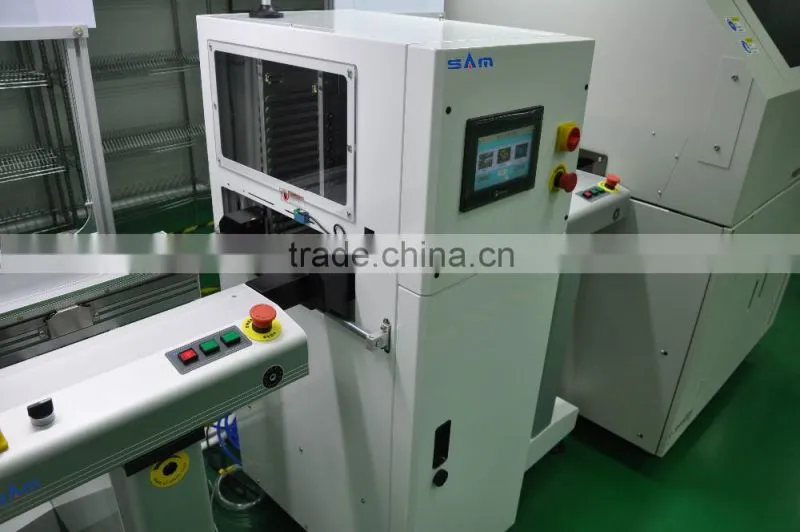

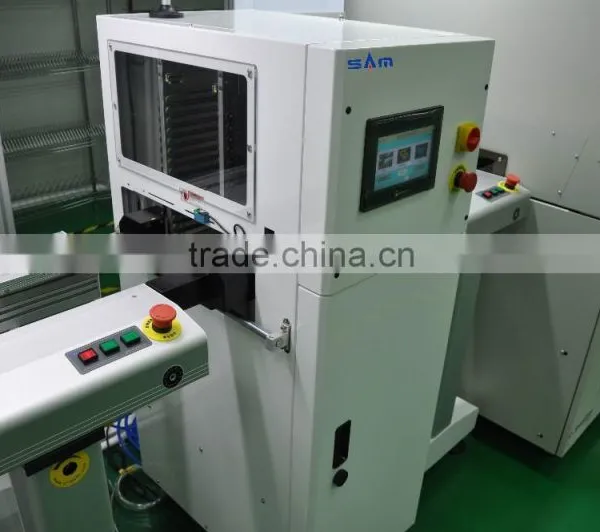

PCB Multi Function Vertical Buffer
Negotiable
MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
SAM
Model Number:
SMC-1A100L
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
Place of Origin
Guangdong, China
Brand Name
SAM
Model Number
SMC-1A100L
Feature:
- User friendly ‘soft touch’ LED membrane control panel.
- Three operating mode:FIFO,LIFO, pass through
- Durable rollers as conveying medium. ( no replacement of belts needed)
- Fast,Smooth and Accurate indexing position. (Servo motor Drive)
- Threshold system provided.
- Smooth and parallel width adjustment.( Lead screw driven)
- Small machine footprint.
- SMEMA compatible .
Technique Parameter :
Description |
Used as a buffer between SMT Machine |
Max PCBs Capacity |
25 pcs or specify |
Max PCBs Load |
2kg/PCB |
Cycle time |
Approx. 15 seconds |
Indexing Pitch |
20mm or specify |
Power Source |
230VAC 1ph250VA max.(option 100VAC) |
|
Air Pressure & Consume |
4-6 bar, 15ltr/min max. |
PCB Thickness |
0.6mm min. |
Specification :
Model |
Size |
Dimension (L * W* H) (mm) |
EffectivePCB Size ( LxW) (mm) |
Approximate Weight (Kg) |
SMC-1A100L |
L |
500*917*1560 |
50*50-445*390 |
210 |
SMC-1A100XL |
XL |
600*1150*1560 |
50*50-530*460 |
280 |
