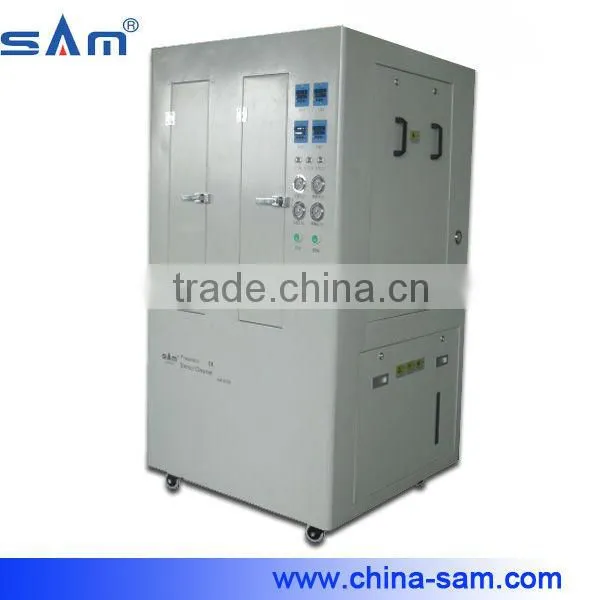

Pneumatic Double Tank Stencil Cleaner

Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)

Key Specifications

Condition:

New

Place of Origin:

Guangdong, China

Brand Name:

SAM

Shenzhen SAM Electronic Equipment Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Shenzhen/Hongkong

Delivery Detail:

Delivery time depends on order quantity.

Condition New

Place of Origin Guangdong, China

Brand Name SAM

Model Number SM-8200

Feature Critical Cleaning / Residue Free

Fuel Electric

Certification CE

Use Descaling / Stripping

Cleaning Process Cold Water Cleaning

Cleaning Type Industrial Ultrasonic Cleaner

Industry Used Electronic Industry

Material Metal / Coil

Dimension(L*W*H) 1450mm(L)*900mm(W)*2245mm(H)

After-sales Service Provided Overseas service center available

Specifications

1. high quality pmeumatic stencil cleaner
2. no electricity , fully pneumatic
3.Energy saving , envirnonment protect

Features:

1.Use compressed air as energy , no electricity , no ptential safety hazard.

2.Humanized design ,one-touch operation ,easily finish cleaning and drying work.

3.High density and pressure double side rotary cleaning nozzle ,high cleanness ,stencil tension stability.

4.Automatic add and drain system , convenient management.

5.Class 3 filtration system , and small exhaust outlet design , cleaning fluid circulation use loss more low.

6.Adopt original quality parts install the machine system , duration .l system.

7.Changeable modular control system

Specification:

Application	stencil,glue screen ,copper screen
Application stencil size	Standard 29 inch and below
Clean liquid capacity	Max 50L ,Min 30 L
Cleaning fluid volume	40L*2
Cleaning mothed	:Rotary double side pressure injection and high pressure air praying ( cleaning and drying )
Clean time	2~4 min(stencil and copper net)
Rinse time	2~4 min(stencil and copper net )
Dry time	2~5 min
External air supply	0.4Mpa~0.6Mpa
Air consumption	400~600L/Min*2
Air outlet size	Φ125*25mm
Weight	720Kg
Dimension	1450mm(L)900mm(W)2245mm(H)
Tin filter mothed	Three class filter(10μm,5μm,1μm)
