Specifications
1.seamless steel rod2,2 years guarantee.
3,easy install
4,we are a factory
5,fast shipment

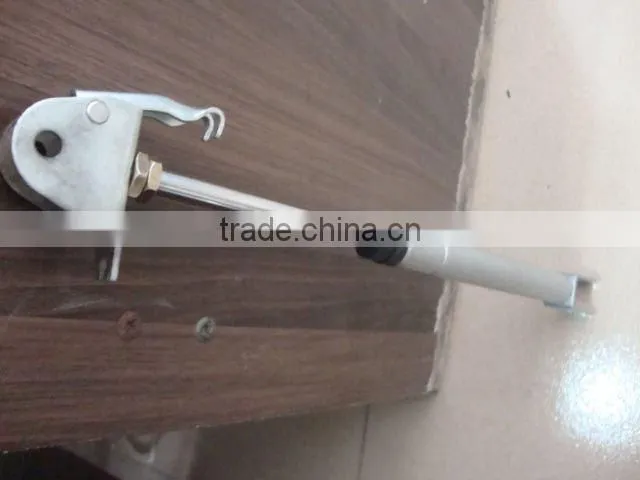

gas spring for machinery lid, light box, billboard lid parts.
This separate the oil from the gas inside the spring ,
so that the damping can be very closely controlled in either compression or extension .
specifications:
Usage: machinery lid, light box, billboard lid,printer parts, medical euqipment.
Product description:
Cylinder material: Steel, SS304, SS316
Shaft material: Steel, SS304, SS316
Cylinder finishing: Black ,Silver or other color
Shaft finishing: Chrome/QPQ
Tube diameter:8mm
Rod diameter:18mm Force:180N
Salt spray time: achieving more than 72 hours.
Fatigue test: decay less than 9% after 20,000 cycles.
Service life: at least 50,000 cycles in normal environment.
Working temperature range: –30 °C - +80 °C.
Main Specifications and Dimensions:
| Extended length(mm) | stroke length(mm) | D1*D2(MM) | Force F1(N) | Fr(max) |
| 100-300 | 30-100 | 4*12 | 20-200 | 30 |
| 301-600 | 101-200 | 6*15 | 50-200 | 50 |
| 601-900 | 201-300 | 8*18 | 100-800 | 60 |
| 901-1200 | 301-400 | 10*22 | 150-1150 | 80 |
| 1201-1600 | 401-500 | 12*22 | 150-1200 | 80 |
| 500-1200 | 200-500 | 12*26 | 200-1500 | 80 |
| 500-1300 | 200-600 | 14*28 | 200-2000 | 100 |
Brief introduction:
gas spring parts . it can play a role in support, cushioning, there is no stop at trip. It used comfortable, convenient installation. Mainly used in aircraft, automobile, engineering machinery, furniture and office supplies industry.
Delivery:
1000 PCS, 7 days.
Shipment: We can accept your appionted forwarder.
gas spring for machinery parts:
gas spring for medical equipment parts:
gas spring as Jack parts:
gas spring for car hood parts
