Home > Instruments & Meters > Meter for Electricity > Voltage Meter > DC VOLTAGE Panel Meter 50*50MM

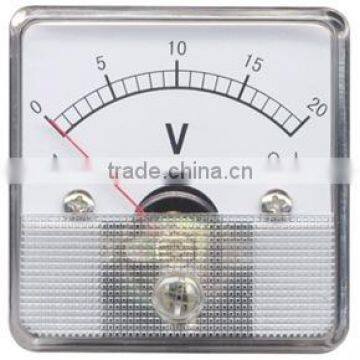

DC VOLTAGE Panel Meter 50*50MM

Negotiable MOQ: 2000 Pieces (Price negotiable depending on order volume and customization)

Key Specifications

Get Latest Price

Place of Origin:

Zhejiang, China

Brand Name:

OEM

Model Number:

Contact Supplier Request Quote Chat Now

Yueqing Haohua Electric Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

NINGBO/SHANGHAI

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Place of Origin Zhejiang, China

Brand Name OEM

Model Number 50

Display Type Analog Only

Measuring Range 0-20V

Accuracy Class 2.50

Dimensions 50*50MM

We can produce according to the customer's request for the range of 0-300V/0-60A.

AC meter / voltage meter
2.high sensitivity
3.high quality

AC meter / voltage meter

Can measure AC current, AC voltage, DC current, DC voltage,

Accuracy: Class l.5;2.5

Moving coils&moments: key part of the panel meter, quality guaranteed by high sensitivity,high precision,consistence and long duration.

Composition: Glass window; the cases are made of non-flammable plastic material according to Ul94-VO;

Test Voltage:2.3KV 50-60 C/S;

Scale plate with printing technique ;

Removable Scales: the scales can be changed without opening the instruments;

With protective covers;

Can supply pivot jewel movements

Moving coil types: strong anti-influence to external ferromagnetic;

Anti-vibration: up to MAX 2.5g ; Anti-shock: up to 15g;

Customized scales available.

Class: 1.5, 2.5

Spece:25uA 30uA 50uA 1mA 2mA 5mA 10mA 20mA 30mA 50mA 75mA

100mA 150mA 200mA 300mA 500mA 1A 3A 5A 7.5A 10A 20A

30A 50A 75A 100A(used with shunt)

Note:For 60/75/100A direct meters, the class in 2.5 .

Advantage: Scale can be changed without opening meter, convenient to use, effective dust proof. Under the same input signal, scale-change can be conducted without loss of accuracy or damaging the meter.

Standards:
IEC51, IEC61010-1, VDE410, BS89, UL94, NE60051, DIN43780
Cases:	Temperature influence:
All cases at least dust and splash water-proof. All cases are made of strengthened self-extingushing PPO With a high hit-resistance and a maximum electric isolation	All instruments operate trouble-free at room temperature ranging from -25 to + 40. The Max. Voltage to earth Voltmeter-The upper range voltage (full scale deflention) Ammeter-The Voltage of the main power supply. The meter used shall be keep cleaning. The user shall be made aware that, if the meter is used in a manner not specified by the manufacturer, the protection provided by the meter may be impaired.
Accuracy class:
AC, DC Voltmeters and Ammeters comply with the accuracy class 1.5. The power meters comply with accuracy class 1.5. The frequency meters comply with accuracy class1.0. The maximum-demand meters comply with accuracy class 3.0. The power factor meters and synchroscope meter comply with accuracy class 2.5.
Insulation test:	Mounting angle:
The insulation test is carried out at a voltage of 2KV, 50Hz 1 min and applies for instruments with the full scale deflection up to 650V. Other standards comply with IEC61010-1.	The instruments are calibrated for vertical mounting, unless other positions such as horizontal or inclined at any specified angle to the horizon. can be provided upon request (in this case, specify angle of inclination, please) The accuracy class refers to the specified mounting angle only.

Name	Specifications	Remarks
DC Ammeter	30-1000uA 1-1000mA 1K-10KA 1-50A	Direct connection With EXt.Shunt
DC Voltmeter	40-1000mV 1-1000V 1K-10KA 1-50A	Direct connection With EXt.Resistor
DC Ammeter	1-1000mA 5-1000A 1-50A 1K-0KA	Direct connection With EXt.CT
DC Voltmeter	40-1000mA 1-1000V 1K-380KV	Direct connection With EXt.CT
Frequency Meter	Voltage:50-380V Frequency:45-55Hz 45-65Hz 55-65Hz	Only AM-80 is available
Power Factor Meter	Voltage:50-380V Frequency:0.5cap-1-0.5ind 0.3cap-1-0.7ind 0.4cap-1-0.4ind 0.7cap-1-0.3ind Suitable for 1Por 3P3W Circuit
Power Meter	Voltage:50-380V Current:0.2-5A With Current or Voltage Transformer
