windlass for boats
- 1 Set / Sets per Month
- Shanghai
- T/T Credit Card PayPal
Product Details
Place of Origin: | Hubei, China | Brand Name: | Xichang | Model Number: | brand new |
Part: | Other, Marine Hardware |
Product Description
Specifications
windlass for boat Electric,hydraulic, manulDia. 12.5 to 114mm
ISO9001
CCS,ABS,BV,GL,DNV,LR,NK,KR
High quality,
windlass for boats
We can supply various deck machinery:
Windlass/ Mooring Winch/ Capston
Cable chain: 12.5-114mm
Hositing force:10KN to 600KN
Mooring force:30KN to 300KN
Sepcail winches could reach 300KN pull load according to the usages.

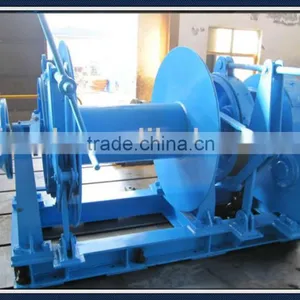

Winch
1) Drive: Electric / hydraulic
2) Configuration: Single or double drum with / without warping end
3) Wire drum: Steel wire rope drum
4) Rated pull (1st layer): 10 to 2500KN
5) Brake: Holding 1.5 times the rated pull (static, first layer)
6) Paint: As per your specifications
Name | Rated Pull (KN) | Rated Speed (m/min) | Drum Capacity (m) |
10kN Hydraulic Winch | 10 | 4-30 | Φ11×150 |
20kN Hydraulic Winch | 20 | 4-30 | Φ15×150 |
30kN Hydraulic Winch | 30 | 4-30 | Φ17.5×150 |
50kN Hydraulic Winch | 50 | 4-30 | Φ20×150 |
63kN Hydraulic Winch | 63 | 4-30 | Φ22×150 |
80kN Hydraulic Winch | 80 | 4-30 | Φ28×150 |
100kN Hydraulic Winch | 100 | 4-30 | Φ30×300 |
120kN Hydraulic Winch | 120 | 4-30 | Φ32×300 |
125kN Hydraulic Winch | 125 | 4-30 | Φ30×200 |
140kN Hydraulic Winch | 140 | 4-30 | Φ32×300 |
150kN Hydraulic Winch | 150 | 4-30 | Φ36×300 |
160kN Hydraulic Winch | 160 | 4-30 | Φ36×300 |
180kN Hydraulic Winch | 180 | 4-30 | Φ36×380 |
200kN Hydraulic Winch | 200 | 4-30 | Φ36×380 |
220kN Hydraulic Winch | 220 | 4-30 | Φ38×400 |
250kN Hydraulic Winch | 250 | 4-30 | Φ40×400 |
300kN Hydraulic Winch | 300 | 4-30 | Φ40×400 |
320kN Hydraulic Winch | 320 | 4-30 | Φ42×400 |
350kN Hydraulic Winch | 350 | 4-30 | Φ44×400 |
400kN Hydraulic Winch | 400 | 4-30 | Φ44×480 |
450kN Hydraulic Winch | 450 | 4-30 | Φ46×480 |
500kN Hydraulic Winch | 500 | 4-30 | Φ46×500 |
550kN Hydraulic Winch | 550 | 4-30 | Φ48×500 |
600kN Hydraulic Winch | 600 | 4-30 | Φ50×500 |
630kN Hydraulic Winch | 630 | 4-30 | Φ52×500 |
650kN Hydraulic Winch | 650 | 4-30 | Φ52×500 |
700kN Hydraulic Winch | 700 | 4-30 | Φ52×500 |
750kN Hydraulic Winch | 750 | 4-30 | Φ52×500 |
800kN Hydraulic Winch | 800 | 4-30 | Φ54×600 |
1000kN Hydraulic Winch | 1000 | 4-30 | Φ56×800 |
1050kN Hydraulic Winch | 1050 | 4-30 | Φ56×800 |
1250kN Hydraulic Winch | 1250 | 4-30 | Φ58×1000 |
1500KN hydraulic winch | 1500 | 4-30 | Φ58×2000 |
2000KN hydraulic winch | 2000 | 4-20 | Φ68×2000 |
2500KN hydraulic winch | 2500 | 4-20 | Φ76×2000 |
Finshed production
Manufacutring
