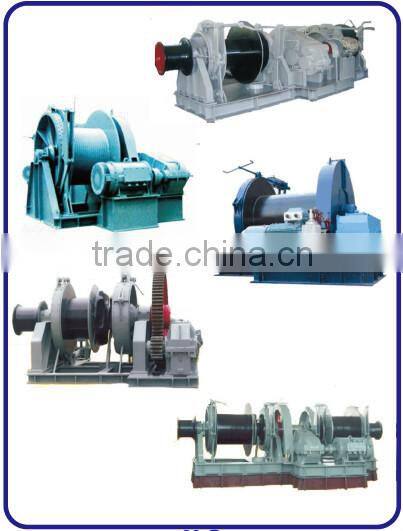

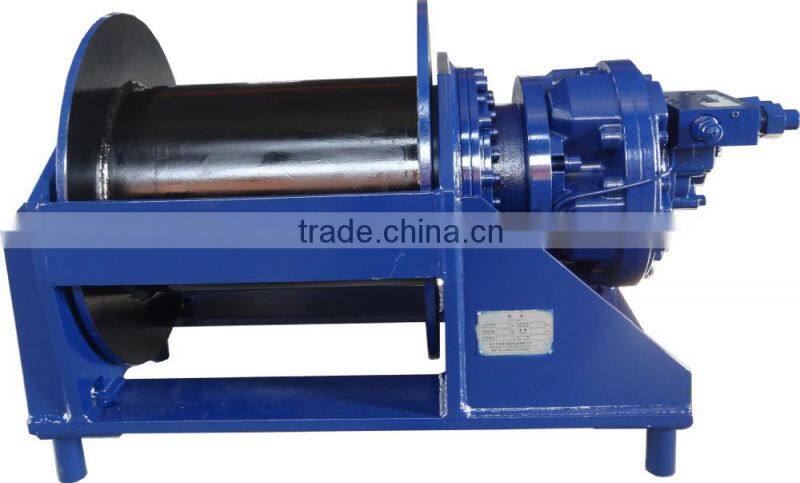

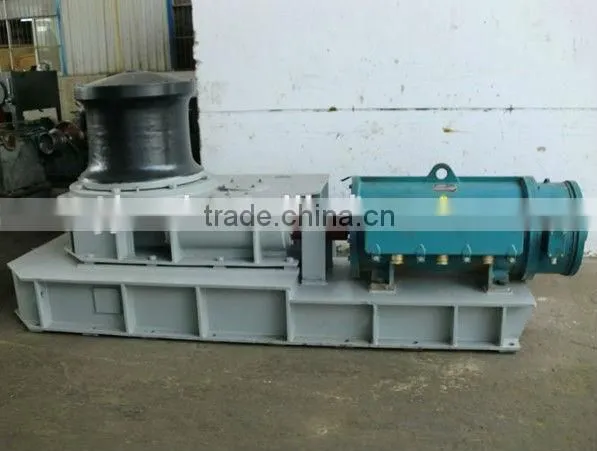

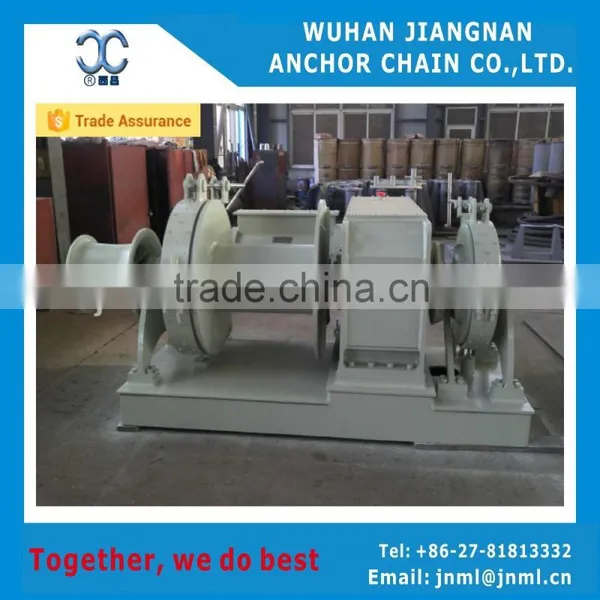

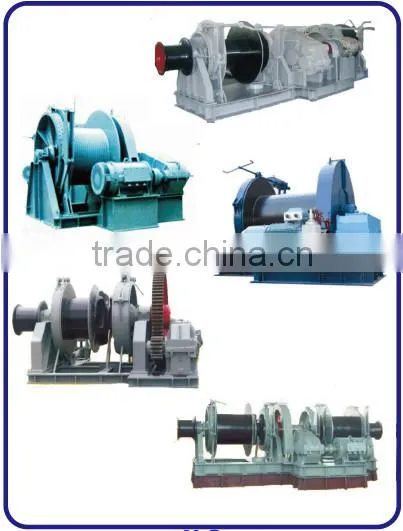

Marine Mooring Winch Manufacturer
1.Winch Large load from 5KN to 300KN.
2.With Electric type and hydraulic type.
3.Compact structure.
4.Small size, light and nice appearance.
5.Large torque and good stability.
6.Low noise and reliable operation.
7.Customized design according to clients’ special requirements.
1. We set up in 1990,with more than 20 years marine industry expereince.Major in anchor/anchor chain/Winch windlass/Ship Mooring fittings and acc.
2. The few factory which can produce chains, anchor, anchor winch with electric type, hydraulic type , diesel engine type.
3. With 3 senior engineers are the drafters of China Winch National Standard .We are the council member of Chinese winch association.
4. The leader of 6S management in winch and crane industry.
5. Our engineers are available to overseas anytime anywhere.
6. 5~150Ton hydraulic single drum marine mooring winch with double brake can be customized according to your demands.
| Model | Rated pull(KN) | Rated speed(m/min) | Drum capacity(mmxm) | Braking force(KN) | Motor power(KW) | Dimensions(mm) | Weight(T) |
| ML-20 | 20 | 12 | 15x200 | 60 | 11 | 1800x1150x1825 | 2.5 |
| ML-30 | 30 | 12 | 16x200 | 90 | 15 | 1950x1200x1900 | 3 |
| ML-50 | 50 | 12 | 22x220 | 150 | 22 | 2050x1200x2000 | 3.5 |
| ML-80 | 80 | 12 | 28x220 | 240 | 37 | 2175x1250x2100 | 4 |
| ML-100 | 100 | 12 | 30x220 | 300 | 45 | 2320x1285x2175 | 5 |
| ML-125 | 125 | 12 | 32x220 | 375 | 55 | 2385x1325x2250 | 5.5 |
| ML-150 | 150 | 12 | 36x220 | 450 | 75 | 2500x1465x2400 | 6 |
| ML-200 | 200 | 10 | 39.5x350 | 600 | 75 | 2600x1670x2625 | 9 |
| ML-250 | 250 | 10 | 43x450 | 750 | 90 | 2850x1800x2900 | 12.5 |
| ML-320 | 320 | 8 | 47x550 | 960 | 90 | 3050x1975x3100 | 18 |
| ML-400 | 400 | 8 | 52x600 | 1000 | 110 | 3375x2050x3400 | 22 |
| ML-500 | 500 | 9 | 56x600 | 750 | 180 | 4750x2800x3850 | 25 |
