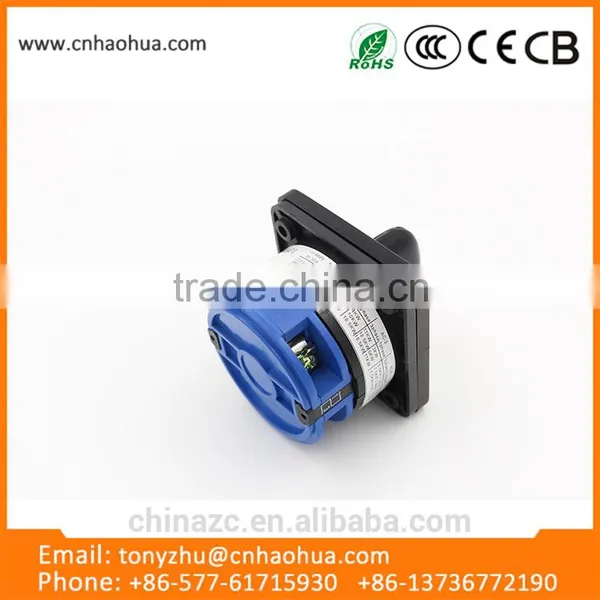

LW26 series 32A wholesale products china universal auto changeover switch
USD $2 - $5
/ Piece
500 Pieces(Min.Order)
- 10000 Piece / Pieces per Month
- NINGBO/SHANGHAI for changeover switch
- T/T Credit Card
You May Like
-
LJV RE09101AB-V01-0026 Incremental rotary encoder, 10 pulses, 20 positions, horizontal, with press switch, shaft length 15mm
-
EC18/RE18 Digital Absolute Encoder Rotary Type For Wash Machine Control Panel，Logical encoder,12 Channel encoder
-
EC16/RE16 incremental rotary encoder, 12 position/12 pulses, IP67 waterproof, without press switch
-
RS126 double pole, double throw, Self -return switch,Reset Switch,Left and right rotation
-
RS26 1 Pole Position 10 Selectable Band Rotary Channel Selector Switch
-
RS12 gear switch Multi-position rotary switch 2 gear 4 gear audio semi-circular handle rotary switch
Product Details
| Place of Origin: | Zhejiang, China | Brand Name: | OEM | Model Number: | LW26-32/1 |
| Max. Current: | 160A | Max. Voltage: | 440V | Mechanical Life: | 100000 |
Product Description
Product Description
| LW26 series 32A wholesale products china universal auto changeover switch |
Introduction
The LW26 sereies rotary switch mainly applies to 440V and below,AC 50Hz or 240V and below DC circuits.For breaking and closing,change-over of circuits under unfrequenly manual operation.And the typical application are:control switch of 3 phase motors,control switch gear,control switch of instruments,and change-over switch of machinery and welding machine.
The series comply with the GB 14048.3,GB 14048.5 and IEC 60947-3,IEC 60947-5-1.
The LW26 series have 7 current ratings:10A,20A,25A,32A,63A,125A and 160A.
The LW26 series rotary switch were designed for multiple functions,wide variety of appli -cations.We can equip protective box for 20A,25A,32A and 63A.
Technical parameters
| Description | LW26GS-20 | LW26GS-25 | LW26GS-32 | LW26GS-63 | LW26GS-125 | LW26GS-160 | |
| Rated working voltage Ue | V | 440 | 440 | 440 | 440 | 440 | 440 |
| Rated thermal current Ith | A | 20 | 25 | 32 | 63 | 125 | 160 |
| Rated working current Ie | |||||||
| AC-21A | A | 20 | 25 | 32 | 63 | 100 | 150 |
| AC-22A | A | 20 | 25 | 32 | 63 | 100 | 150 |
| AC-23A | A | 15 | 22 | 30 | 57 | 90 | 135 |
| power | P | ||||||
| AC-23A | KW | 7.5 | 11 | 15 | 30 | 45 | 75 |
| Operation | |||||||
| non-load | 8500 | 8500 | 8500 | 8500 | 8500 | 8500 | |
| load | 1500 | 1500 | 1500 | 1500 | 1500 | 1500 | |
| Total | 10000 | 10000 | 10000 | 10000 | 10000 | 10000 | |
| Description | Escutcheon plate | Dimensions(mm) | Installation(mm) | ||||||
| A | C | L | H | E | F | D1 | D2 | ||
| LW26GS-20/04-1 | M1 | 48 | 43 | 42 | 33 | 36 | 36 | Φ8.5 | Φ4.5 |
| LW26GS-20/04-2 | M2 | 64 | 43 | 43 | 42 | 48 | 48 | Φ8.5 | Φ4.5 |
| LW26GS-25/04-1 | M1 | 48 | 45.2 | 50 | 33 | 36 | 36 | Φ8.5 | Φ4.5 |
| LW26GS-25/04-2 | M2 | 64 | 45.2 | 51 | 42 | 48 | 48 | Φ8.5 | Φ4.5 |
| LW26GS-32/04-2 | M2 | 64 | 58 | 55 | 42 | 48 | 48 | Φ10 | Φ4.5 |
| LW26GS-32/04-3 | M3 | 88 | 58 | 55 | 52 | 68 | 68 | Φ13 | Φ6 |
| LW26GS-63/04-2 | M2 | 64 | 66 | 72.5 | 42 | 48 | 48 | Φ10 | Φ4.5 |
| LW26GS-63/04-3 | M3 | 88 | 58 | 55 | 52 | 68 | 68 | Φ13 | Φ6 |
| LW26GS-125/04-3 | M3 | 88 | 84 | 88 | 52 | 68 | 68 | Φ13 | Φ6 |
| LW26GS-160/04-3 | M3 | 88 | 88 | 100 | 52 | 68 | 68 | Φ13 | Φ6 |
