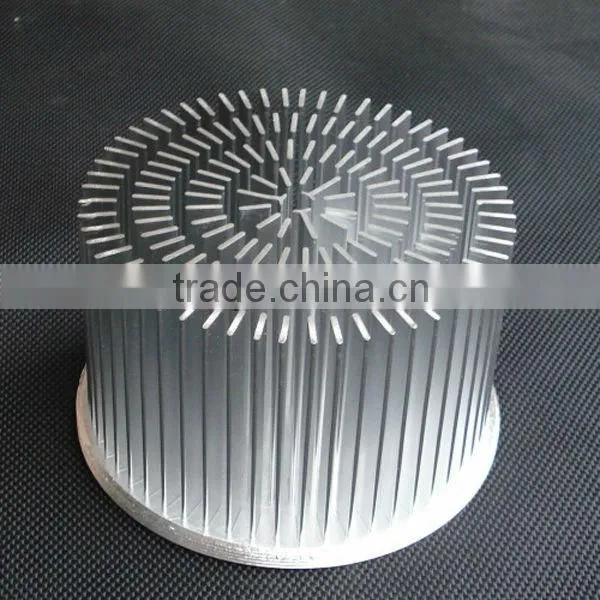

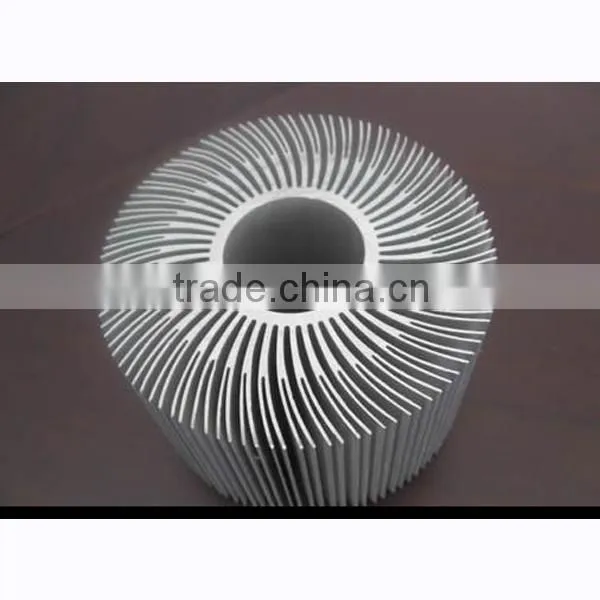

2013 Hot sale extruded aluminum led heatsink with CNC machining

Specifications

aluminum profiles for radiators, fitness machinery, buildings, lighting instrument, windpipes, oil pipelines, for instance.

                                           aluminum /aluminium round tube /pipe  heat sink/ heatsink



Company introduction:



 ZhuRui has a broad range of heatsink solutions for Led Cooling.





§ Forging can produce round and other non-linear shapes that are preferred for LED applications.

§ The forge process uses high pressure to form the material and provides control over the grain structure to provide superior thermal performance.

§ LED’s are generally convection cooled and our forged pin fin arrays provide the best possible thermal performance in ambient environments.

§ Heat sinks can be forged in either aluminum or copper.

Sizes range from 5 mm diameter to 100mm and shapes can be almost any shape you need.

Business Cope:



Extruded heat sinks, Stamped heat sinks,Bonded fin heat sinks, Folded fin heat sinks, Active Heat Sinks,Forged heat sinks, Swaged heat sinks, Single Fin assembly Heat Sinks,Skived Heat Sinks.





Which Aluminium Profiles We could supply

§ Alloy:1060,2024,3003,5005,5056,6063, 6061, 6082, 6060, 6005, 6A02

§ Temp:T1, T4, T5, T6

§ Finish:Mill finish, Anodized,Powder coated,Electrophoresis,Wooden grain.

§ Extrude size:10mm-250mm

Technology Supports

§ Engineering design

§ Autocad drawing

§ Aluminium profiles deeply processing:cutting,punching,drilling,milling,dending and fabricating.



Usage:



Industry Aluminum profile used in cars, trains machinery ,electronics, medical and other industrial



filed .



In terms of hardware, machinery, electromechanical parts, solar PV products, aluminum frames



areadopt as important auxiliary materials. We also have aluminum profiles for radiators, fitness



machinery, buildings, lighting instrument, windpipes, oil pipelines, for instance.



product data:



1.General Chemical Composition of the aluminum tube
Aluminum Grade	Si	Fe	Cu	Mn	Mg	Cr	Zn	Ti	impurity	Al
6063	0.2-0.6	<0.35	<0.1	<0.1	0.45-0.9	<0.1	<0.1	<0.1	<0.15	Rest
6061	0.4-0.8	0.7	0.15-0.4	<0.15	0.8-1.2	0.04-0.35	<0.25	<0.15	<0.15	Rest
2.Mechanical Properties of Sections under Room Temperature
Aluminum Grade	Temper	Wall Thickness	Resist Pull Point(Mpa)	Stretch (Rpo.2 Mpa)	Stretch Rate	Webster  Hardness
6063	T5	All	160	110	8	8
	T6	All	205	180	8
6061	T4	All	180	110	16
	T6	All	265	245	8
3.SurfaceTreatment of Sections
(Class)	(μm),not diminish than		acid-resistant			abrasion resistance
	(Min-average film	(Min-part film	CASS
	thickness)	thickness)	(h)	Class	(S)	(f, g /μm)
AA10	10	8	16	≥9	≥50	≥300
AA15	15	12	32	≥9	≥75	≥300
AA20	20	16	56	≥9	≥100	≥300
AA25	25	20	72	≥9	≥125	≥300

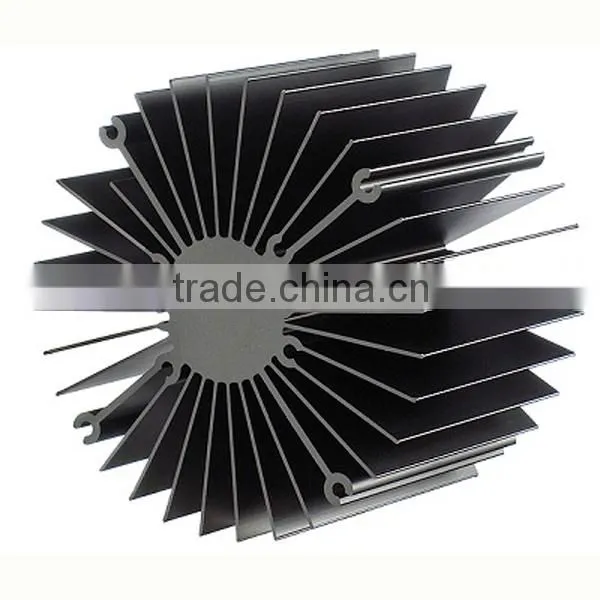

Product detail:





Factory:
