Help CenterAluminum /aluminium Cool Forging Heatsink
Related Products
-
Aluminum /aluminium Round Tube /pipe HeatsinkNegotiableMOQ: 3000 Kiloamperes -
Aluminum HeatsinkNegotiableMOQ: 1 Ton
-
LED Street Light Heat Sink Aluminium Profile Led HeatsinkNegotiableMOQ: 3 Tons
-
Die Casting Aluminum /aluminium Round Tube /pipe Heatsink/ Heat Sink/NegotiableMOQ: 1 Ton
-
LED Aluminum Heat Sink Radiator,Sunflower Shape Radiator, LED RadiatorNegotiableMOQ: 1 Ton
Specifications
aluminum profiles for radiators, fitness machinery, buildings, lighting instrument, windpipes, oil pipelines, for instance.aluminum /aluminium round tube /pipe heat sink/ heatsink
Company introduction:
ZhuRui has a broad range of heatsink solutions for Led Cooling.

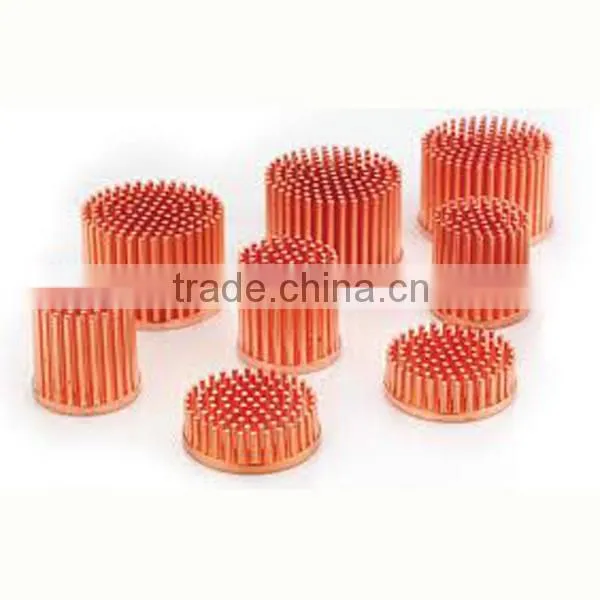

§ Forging can produce round and other non-linear shapes that are preferred for LED applications.
§ The forge process uses high pressure to form the material and provides control over the grain structure to provide superior thermal performance.

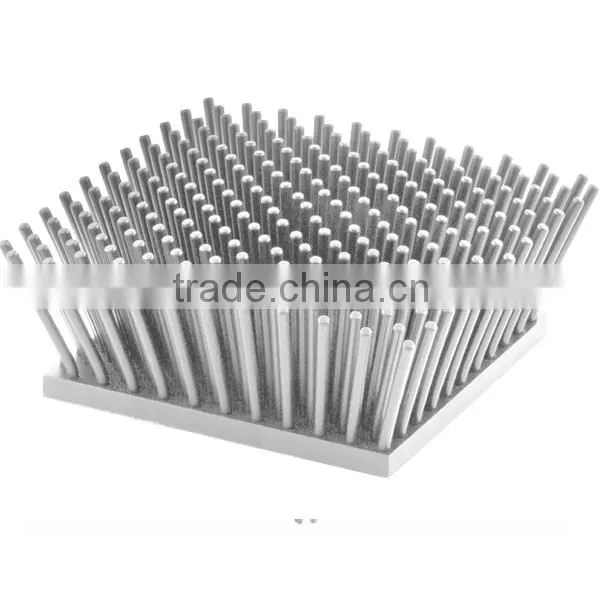

§ LED’s are generally convection cooled and our forged pin fin arrays provide the best possible thermal performance in ambient environments.

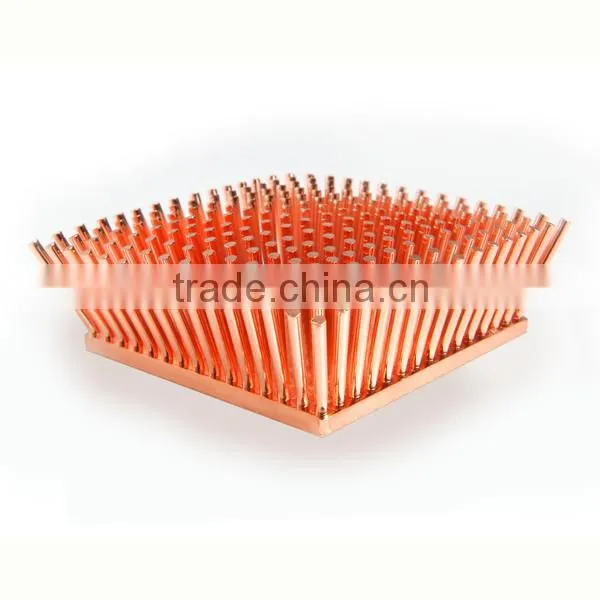

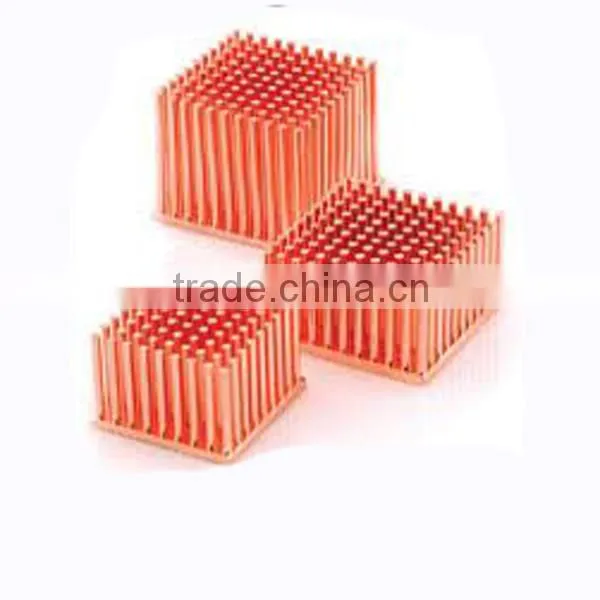

§ Heat sinks can be forged in either aluminum or copper.
Sizes range from 5 mm diameter to 100mm and shapes can be almost any shape you need.
Business Cope:
Extruded heat sinks, Stamped heat sinks,Bonded fin heat sinks, Folded fin heat sinks, Active Heat Sinks,Forged heat sinks, Swaged heat sinks, Single Fin assembly Heat Sinks,Skived Heat Sinks.
Which Aluminium Profiles We could supply
§ Alloy:1060,2024,3003,5005,5056,6063, 6061, 6082, 6060, 6005, 6A02
§ Temp:T1, T4, T5, T6
§ Finish:Mill finish, Anodized,Powder coated,Electrophoresis,Wooden grain.
§ Extrude size:10mm-250mm
Technology Supports
§ Engineering design
§ Autocad drawing
§ Aluminium profiles deeply processing:cutting,punching,drilling,milling,dending and fabricating.
Usage:
Industry Aluminum profile used in cars, trains machinery ,electronics, medical and other industrial
filed .
In terms of hardware, machinery, electromechanical parts, solar PV products, aluminum frames
areadopt as important auxiliary materials. We also have aluminum profiles for radiators, fitness
machinery, buildings, lighting instrument, windpipes, oil pipelines, for instance.
product data:
| 1.General Chemical Composition of the aluminum tube | ||||||||||
| Aluminum Grade | Si | Fe | Cu | Mn | Mg | Cr | Zn | Ti | impurity | Al |
| 6063 | 0.2-0.6 | <0.35 | <0.1 | <0.1 | 0.45-0.9 | <0.1 | <0.1 | <0.1 | <0.15 | Rest |
| 6061 | 0.4-0.8 | 0.7 | 0.15-0.4 | <0.15 | 0.8-1.2 | 0.04-0.35 | <0.25 | <0.15 | <0.15 | Rest |
| 2.Mechanical Properties of Sections under Room Temperature | ||||||||||
| Aluminum Grade | Temper | Wall Thickness | Resist Pull Point(Mpa) | Stretch (Rpo.2 Mpa) | Stretch Rate | Webster Hardness | ||||
| 6063 | T5 | All | 160 | 110 | 8 | 8 | ||||
| T6 | All | 205 | 180 | 8 | ||||||
| 6061 | T4 | All | 180 | 110 | 16 | |||||
| T6 | All | 265 | 245 | 8 | ||||||
| 3.SurfaceTreatment of Sections | ||||||||||
| (Class) | (μm),not diminish than | acid-resistant | abrasion resistance | |||||||
| (Min-average film | (Min-part film | CASS | ||||||||
| thickness) | thickness) | (h) | Class | (S) | (f, g /μm) | |||||
| AA10 | 10 | 8 | 16 | ≥9 | ≥50 | ≥300 | ||||
| AA15 | 15 | 12 | 32 | ≥9 | ≥75 | ≥300 | ||||
| AA20 | 20 | 16 | 56 | ≥9 | ≥100 | ≥300 | ||||
| AA25 | 25 | 20 | 72 | ≥9 | ≥125 | ≥300 | ||||
Product detail:
