Help CenterDK Series Metering Pump
Related Products
Specifications
- Simple, Economic Vertical type Metering pump by rationalis tic design.- Extremely good life by long operation.
Features & Cautions
- Simple, Economic Vertical type Metering pump by rationalis tic design.
- Extremely good life by long operation.
- Can be injected small volum of liquid with accuracy/ (Tolerance limits : ±1%)
- Can be done transporting injection by high pressure
- The range of effective adjustment stroke: 20% ~ 100%)
- Using temperature : 0°C ~ 100°C
- Using viscosity : Below 300cp
- Room temperature for pump : 0°C ~ 40°C

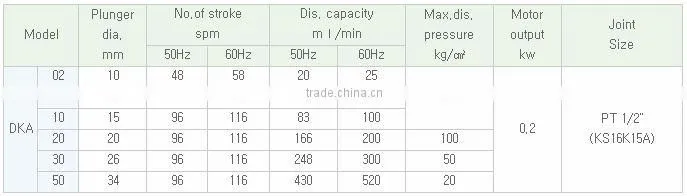

DK series Capacity-Pressure Selection Table
Name
DKA series metering(dosing) pump/High pressure plunger metering pump
Product information
This product is used in extremely high pressure. The operating range of pressure is from 15kg/cm2 to 200kg/cm2. It designed to operate in high pressure, so that it has good life by long operation. The motor is 3 phase, 220/380v. The type is plunger metering pump. According to fluid type, material of head can be changed such as SUS304, 316. The range of capacity is from 25cc/min to 520 cc/min, but attach the head one more in parallel, capacity might be double.
Features:
1) Plunger type pump
2) It works in high pressure(15kg/cm2 ~ 200kg/cm2)
3) it has good life by long operation.
4) It is possible to attach pump head in parallel, so that the capacity is double. It can be overcome the limit maximum capacity.
5) It is possible to adjust capacity automatically by attaching SERVO UNIT which gets information from PH meter.
Spac:
1) Discharge capacity : 25cc/min ~ 1040cc/min(in cased of duplex head)
2) Material : SUS304,SUS316
3) Motor : 3 phase, 60Hz,220/380v,IP44(standard)
440V,50Hz, anti-explosion, waterproof motor in special order
4) 30% ~ 100 % adjust flow capacity
5) viscosity : below 300cp
6) operation temperature: SUS(0~80)
7) connecting type: screw type(standard), flange type(optional)

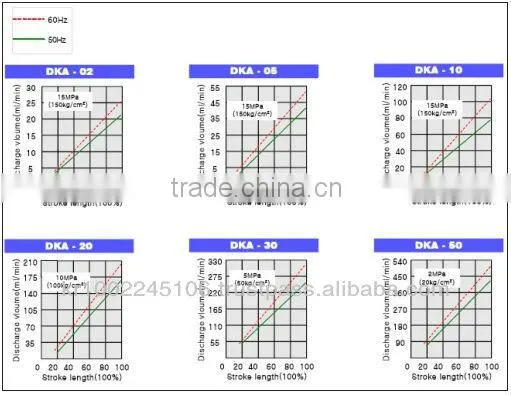

Performancecurves

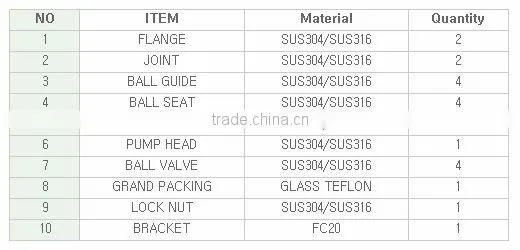

Plunger pump head structure
