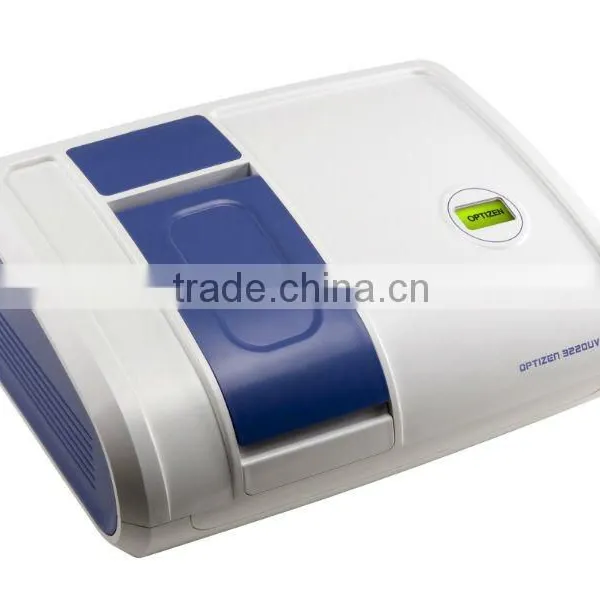

Optizen 3220UV Spectrophotometer

Optizen 3220UV Spectrophotometer thumbnail-1
Optizen 3220UV Spectrophotometer photo-1
Negotiable MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
South Korea
Brand Name:
MECASYS
Contact Supplier Request Quote Chat Now
KOREA ENVIRONMENTAL INDUSTRY & TECHNOLOGY INSTITUTE
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin South Korea
Brand Name MECASYS

Specifications

OPTIZEN 3220UV
Double Beam UV/VIS Spectrophotometer implemented with fully localized technology.

Product Description

OPTIZEN 3220UV
Double Beam UV/VIS Spectrophotometer implemented with fully localized technology.

Product Feature

OPTIZEN 3220UV is very much ideal for analyzing components that require multiple wavelengths, time course operating, and getting stable data sheets.
What is nice about OPTIZEN 3220UV?
- Expand your laboratorial work using ultraviolet (UV) testing capabilities for applications and measurement requiring wavelengths not available on visible-light-only spectrophotometer, and advanced applications available using double beam light sources.
- Fast analysis of a wide range of samples and capable your analysis to put out experiments home by using internet.
- Bigger storage capacity than any others.
- Simple kinetics using time-course measurement or complete other research projects using its double light source ability to automatically complete multiple scans.
- OPTIZEN 3220UV has capabilities with a range of 190nm to 1100nm.
FEATURES
- More powerful in information technologies in your lab.
- Better in holding memories.
- USB ports for user-friendly Programming updates and other accessory connections.
- Universal sample cell holder holds 8 cells.
- Rotating cell holder (8 cells and one blank)
- Superb optics for maximized accuracy.
- Exceptional precision and reliability.
- User-friendly software with scanning and time course capacities.
- Versatile data processing.For Better
- Embedded system solution
- Upgrade software service on networking
- Touch screen control : Option
For Human
- User-friendly 8 cell rotating cell holder
- Self-checking system for start
- Good design
Standard Accessories
- 8 cell automotive rotating holder
- Software : OptizenView 2005
- Embedded XP based program
- Upgrading software : Free
- Other accessories available

Product Specification / Models

- Photometric System : Double bean optics
- Spectral Band pass width : < 1.0nm
- Wavelength Range : 190nm to 1100nm
- Wavelength Accuracy : < ±0.3nm (at D2 peak 656.1nm,, 486.0nm)
- Wavelength Reproducibility : < ±0.1nm
- Wavelength Setting : 0.1nm
- Wavelength Slew Rate : about 5000nm/min
- Photometric Range : - 0.4 to 4.0Abs
- Photometric Accuracy : ±0.002Abs (at 1.0Abs)
- Stray Light : < 0.05% T (220nm, 340nm)
- BaseLine Flatness : < ± 0.001Abs (200nm to 1100nm)
- Noise Level : < 0.001A- Drift : 0.002A/hr at 340nm
- Stability : < ±0.002A/hr
- Light Source : Tungsten
- Halogen lamp and Deuterium lamp
- Lamp Change Wavelength : 340nm to 410m, (default 370nm), include auto position system
- Monochromator : Modified Czerny-turner type with 1200 lines/mm blazed grating
- Detector : Dual silicone photodiode
- Power Requirement : AC 220V, 50/60Hz (Please confirm power rate of your area)
- Dimensions : 600(W) 440(D) 250(H) mm
- Weight : 16kg
