Android 5.1 tv box Rockchip RK3368 64bits Octa core Smart TV BOX 2G+16G with KODI 15.0 Media player smart live tv box brief introduction
| CR18 Specification: | ||
| Model# : | Cloudnetgo CR18S | |
| CPU | RK3368 Octa-Core(Two CPU clusters) 64-bit | |
| Main Frequency | ARM Cortex-A53 (ARM MP Core processor Up to 1.5GHz) | |
| GPU | 3D/2D Graphics Engine OpenGL ES3.1/2.0/1.1(600MHz GPU core),OpenCL1.2;Directx9.3 | |
| OS | Android 5.1 Lollipop | |
| RAM | 2GB DDR3 (DDR3/DDR3L /LPDDR2/LPDDR3)high-performance dual channel external memory | |
| Memory Flash | 16GB | |
| LCD Screen | Only CR18 supported | |
| Ethernet | GMAC 10/100/1000MEthernet Controller Supports 10/100/1000-Mbps data transfer rates with the RGMII interfaces Supports 10/100/1000-Mbps data transfer rates with the RMII interfaces Supports both full-duplex and half-duplex operation | |
| WiFi | BCM AP6335(2.4G and 5.8GB dual Mode) | |
| Bluetooth | Built in bluetooth 4.0 version | |
| Camera | External USB camera | |
| Microphone | Built in Microphone | |
| HDMI | Single Physical Layer PHY with support for HDMI 2.0 and 1.4operation Up to 1080p at 120 Hz and 4k*2k at 60Hz HDTV display resolutions 3D video formats Up to 10-bit Deep Color modes Up to 18 Gbps aggregate bandwidth Support HDCP 2.2-1.4 | |
| Expand Micro SD | T-Flash 2G,4G,8G,16G,32G(Maximum support 32GB) | |
| Ports | HDMI;TF SD card ;2 USB2.0 host,USB2.0 OTG , RJ45, Optical SPDIF ,3.5mm AV out (CR13 Plus) , DC port ,LED. Reset button | |
| Accessory | Gift Box ,HDMI cable,USB cable ,User Manual, Power Adapter, IR RC, | |
| Unit Size(mm) | 120*115*28MM | |
| Features | ||
| Storage | Copy to the TF SD card or storage in mobile hard disk | |
| User interface | Using the Android system interface style | |
| Browser | BROWSER | Browse webpage(Opera,UCWeb,SkyFile,Dolphin) |
| ONLINE | Supports Video,TV,MOiVES,MUSIC,radio set. | |
| Quick Office | WORD,EXCEL,POWERPOINT,PDF,TXT | |
| GAME | Supports Built-in 3D Accelerated,Supports 3D Effect game | |
| Expansion | Google market up to more than 20,000 kinds of excellent software free download | |
| Application | Browse webpage,Network chat,e-mail,E-book,Resource management | |
| Audio | Support Format | MP1,MP2,MP3,WMA,OGG,AAC,M4A,FLAC,APE,AMR,RA,WAV. |
| Video | Support Video Decoder Format | H.263 576P 60fps;H.264 2160P 30fps;VC-1 1080P 30fps;MPEG-1 1080p 60fps;MPEG-2 2160P 30fps,MPEG-4 1080P 60fps; |
| SupportVideo Encoder | Support video encoder for H.264 (BP level4.0, MP level4.0, HP level4.0), MVC and VP8 Image size is from 96x96 to 1920x1088(Full HD) Maximum frame rate is up to 30fps 1920x1080 Bit rate supported is from 10Kbps to 20Mbps | |
| Support HEVC Decoder Format | Main/Main10 HEVC/H.265 decoder, 4k 60FPS(Core clock 300MHz) Support up to 4096x2304 resolution; support up to 100Mbps bit rate Embedded memory management unit(MMU) Stream error detector (28 IDs) Internal 128k cache for bandwidth reduction Multi-clock domains and auto clock-gating design for power saving | |
| Output | HDMI 720P-2160P FUII HD 3D( 2160P,Resolution 3840*2160 60fps)4K+2K | |
| FLASH Format | Supports flash11.1 | |
| Music | Can be connected to the Internet, listen to music online | |
| Picture | Supports variety of image formats browsing(jpg,png,bmp…) | |
| DLNA | Supports DLNA function and Mobile phone Interactive | |
| Miracast | Support WIFI Display Miracast (Mirroring) | |
| WIFI Printing | WIFI cloud Printing(Documents,Pictures,Webpage) | |
| Language OSD | Chinese ,Chinese Traditional,English,Arabic,German ,French,Italian,Japanese...60 languages | |

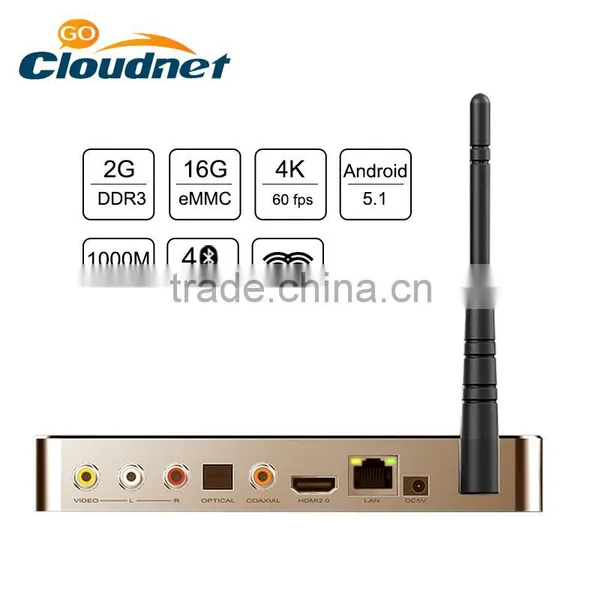

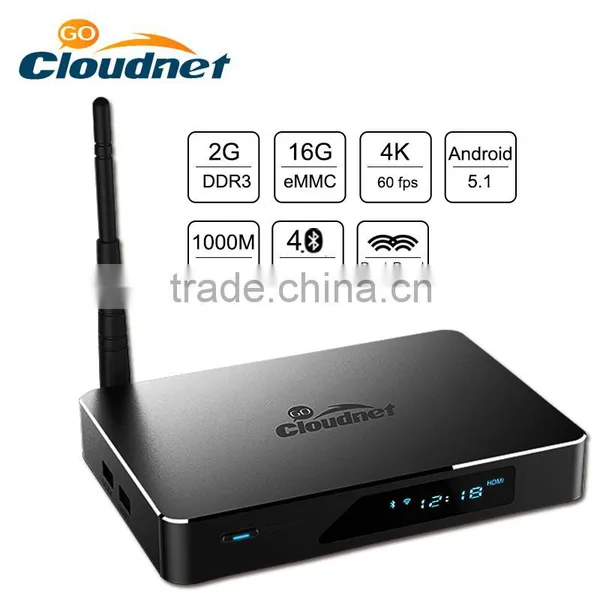

Product show:
Kindly Notice:
Cloudnetgo | CE Certificate:
Cloudnetgo | Factory Details:
*****Play Store
Android 5.1 smart TV box CR18S also support thousands of applications and games.
| What are these ports? | HDMI Output 1 x HDMI2.0 4K*2K60fps display
USB 2 x USB2.0 Host,1*USB Host OTG
Optical 1 x Optical output
MicroSD 1 x MicroSD card
Network 1 x RJ45 10M/100M/1000M
Power Supply DC 5V/2.5A
Coaxial 1 x Coaxial output
AV : 1 x AV output |
